Katronic Technologies KATflow 210 Operating Instructions Manual

Portable ultrasonic flowmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
KA Tflow 210
Portable Ultrasonic Flowmeter

Advertisement

Table of Contents
loading

Related Manuals for Katronic Technologies KATflow 210

Summary of Contents for Katronic Technologies KATflow 210

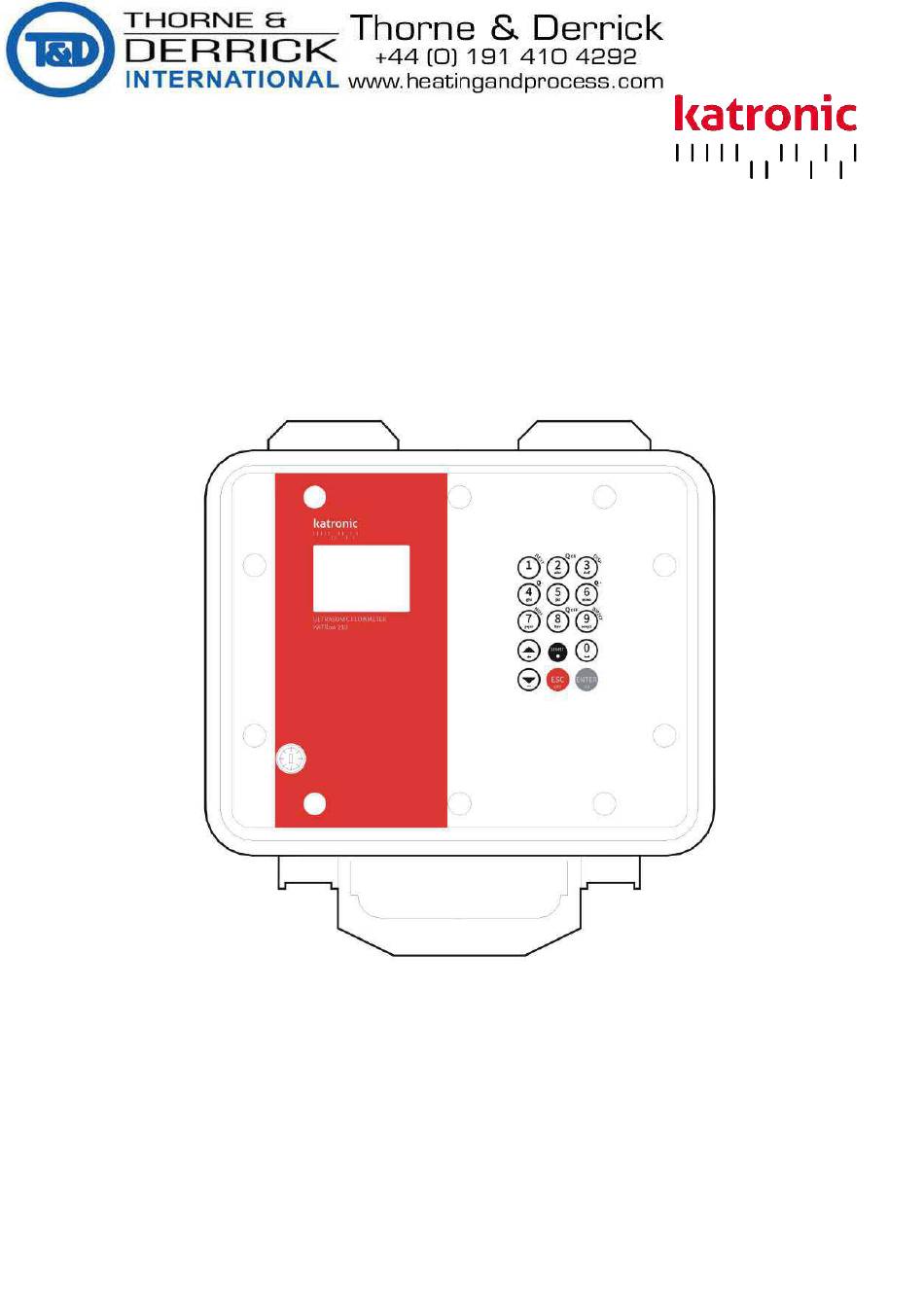

  • Page 1 Operating Instructions KA Tflow 210 Portable Ultrasonic Flowmeter...
  • Page 2 KATflow 210 Operating Instructions Version V03EN160420 Copyright © 2016 All rights reserved.

  • Page 3: Table Of Contents

    KATflow 210 Table of Contents KATflow 210 Operating Instructions Table of Contents Page 1 Safety instructions, legal requirements, warranty, return policy....5 1.1 Symbols used in these operating instructions..........5 1.2 Safety instructions..................5 1.3 Warranty...................... 6 1.4 Return policy....................6 1.5 Legislative requirements................6 2 Introduction......................
  • Page 4 KATflow 210 Table of Contents 5.3.1 Main PV....................32 5.4 Output configuration..................33 5.4.1 Serial interface RS 232.................33 5.5 Inputs/Outputs..................... 34 5.5.1 Modbus RTU..................34 5.5.2 HART compatible output...............34 5.5.3 Analogue current output 0/4 ... 20 mA..........34 5.5.4 Analogue voltage output...............35 5.5.4 Analogue frequency output..............35...

  • Page 5: Safety Instructions, Legal Requirements, Warranty, Return Policy

    KATflow 210 1 Safety instructions, legal requirements, warranty, return policy 1 Safety instructions, legal requirements, war- ranty, return policy 1.1 Symbols used in these operating instructions Danger This symbol represents an immediate hazardous situation which could result in a serious injury, death or damage to the equipment. Where this symbol is shown, do not use the equipment further unless you have fully understood the nature of the hazard and have taken the required precautions.

  • Page 6: Warranty

    KATflow 210 1 Safety instructions, legal requirements, warranty, return policy 1.3 Warranty Any product purchased from KATRONIC is warranted in accordance with ● the relevant product documentation and as specified in the sales contract provided it has been used for the purpose for which it has been designed and operated as outlined in these operating instructions.

  • Page 7: Introduction

    The clamp-on sensors are attached to the outside of the pipes. The KATflow 210 uses ultrasonic signals for the measure- ment of the flow, employing the transit-time method.

  • Page 8: Installation

    ● provided to avoid loss. 3.1.3 Identification of components The following items are typically supplied (please refer to your delivery note for a detailed description): KATflow 210 portable flowmeter ● Fuse (removed for transport) ● Clamp-on sensors ●...

  • Page 9: Clamp-On Sensor Installation

    3 Installation KATflow 210 3.2 Clamp-on sensor installation The correct selection of the sensor location is crucial for achieving reliable meas- urements and a high accuracy. Measurement must take place on a pipe in which sound can propagate (see Acoustic Propagation) and in which a rotationally sym- metrical flow profile is fully developed (see Straight Pipe Lengths).
  • Page 10 3 Installation KATflow 210 For a free inlet or outlet pipe section: Select the measuring point at a location where the pipe cannot run empty. Correct Disadvantageous Correct Disadvantageous For a vertical pipe: Select the measuring point at a location where the liquid flows upward to ensure that the pipe is completely filled.
  • Page 11 3 Installation KATflow 210 Disturbance source: 2 x 90°-elbows in different planes Inlet Outlet L ≥ 40 D L ≥ 5 D Disturbance source: T-section Inlet Outlet L ≥ 50 D L ≥ 10 D Disturbance source: diffuser Inlet Outlet L ≥...

  • Page 12: Pipe Preparation

    3 Installation KATflow 210 3.4 Pipe preparation Clean dirt and dust from around the area of the pipework where the ● sensors are to be placed. Remove loose paint and rust with a wire brush or file. ● Firmly bonded paint does not necessarily need to be removed provided the flow- meter diagnostics indicate sufficient signal strength.

  • Page 13: Flowmeter Installation

    3 Installation KATflow 210 3.6 Flowmeter installation 3.6.1 Outline dimensions The KATflow 210 is a portable, battery operated device with the following outline di- mensions. Flowmeter outline dimensions Process I/O connector Drawing 1: Outline dimensions K1 type transducer Drawing 2: Transducers...

  • Page 14: Electrical Connections

    3.6.2 Electrical connections Battery charger Data Communication Input / Output Sensor connection Drawing 3: Electrical connections overview KATflow 210 3.7 Clamp-on sensor mounting Before the sensors can be mounted the installation location should have been determined, ● a sensor mounting method should be chosen, ●...

  • Page 15: Sensor Pipe Mounting Configurations

    3 Installation KATflow 210 3.7.1 Sensor pipe mounting configurations Illustration 4: Sensor pipe mounting configurations 3.7.2 Acoustic coupling gel In order to obtain acoustical contact between the pipe and the sensors, apply a bead of acoustic coupling gel lengthwise down the centre of the contact area of the sensors.

  • Page 16: Correct Positioning Of The Sensors

    3 Installation KATflow 210 3.7.3 Correct positioning of the sensors Illustration 6: Correct positioning of the sensors Mount the transducer pair so that the front edges of the sensors (opposite the cable entry) face each other. There is a different engraving on the top of each transducer. The transducers are mounted correctly if the engravings on the two transducers form an arrow.
  • Page 17 3 Installation KATflow 210 Place the transducer on the side of the pipe or alternatively up to 45 de- ● grees from the horizontal plane through the pipe. This is advisable to establish the best acoustic contact since on top of the pipe air pockets could develop and deposits could accumulate at the bot- tom of the pipe.

  • Page 18: Operation

    4 Operation KATflow 210 4 Operation 4.1 Switching On/Off The flowmeter is switched on by holding the <ON> key for more than 2 seconds continuously. Equally it can be switched off by pressing the <OFF> key for more than 2 seconds.

  • Page 19: Keypad And Display

    4 Operation KATflow 210 4.3 Keypad and display Display Keypad Illustration 10: Keypad and display overview 4.3.1 Keypad key functions Main function Secondary function Character entry: Show NEXT available item (1 short key stroke) (2 short key strokes) (3 short key strokes)
  • Page 20 4 Operation KATflow 210 Character entry: > Character entry: = Reset positive total value Character entry: Toggle MUltipleXer (where mul- ti-channel functions are provided) Character entry: = Stop totaliser function Character entry: Move menu/list selection item Character backspace clear Character entry:...

  • Page 21: Display Functions

    4 Operation KATflow 210 4.3.2 Display functions Display icons Menu header Display line 1 Display line 2 Date, time Illustration 11: Main display functions Display icon Function Icon not used Datalogger recording Datalogger switched off 1 segment = 33% battery power available...

  • Page 22: Quick Setup Wizard

    4 Operation KATflow 210 RTC operating RTC failure Error recorded in error log No error detected Serial output switched on Serial output switched off "L", "T" or "LT" Displays whether flow is laminar, turbulent or mixed 4.4 Quick setup wizard...
  • Page 23 4 Operation KATflow 210 Choose pipe material using cursor keys and pressing <ENTER>. Selecting “User” will allow manual entry of pipe sound speed. Enter outside pipe diameter using alphanumer- ic keys and confirm by pressing <ENTER>. Use key <UP> as character backspace clear to correct for data entry errors.

  • Page 24: Measurements

    4 Operation KATflow 210 Select transducer configuration (number of passes) using cursor keys. Auto Automatically recommended 1 pass, diagonal mode 2 passes, reflection mode 3 passes, diagonal mode 4 passes, reflection mode ..etc. Confirm by pressing <ENTER>. Use cursor keys to select Start Measurement.

  • Page 25: 3-Line Display

    4 Operation KATflow 210 3-line display format Display screen Operation The three-line display screen is configure- able to show flow, totalizers and diagnostic functions. Change to diagnostic displays by pressing <DISP> and to totalizer and dual mode screens by pressing <NEXT>.

  • Page 26: Dual Channel Measurement Screen

    4 Operation KATflow 210 4.5.4 Dual PV display (multi-channel meters) Display screen Operation Line 1 shows the PV on the selected channel. Line 2 shows the selected units. Line 3 shows the PV on the other channel (in its selected units) Change to diagnostic displays by pressing <DISP>...

  • Page 27: Commissioning

    5 Commissioning KATflow 210 5 Commissioning 5.1 Menu structure Menu structure Main menu Menu level 1 Menu level 2 Description/settings Quick Start Setup Wizard Select from list ↑↓ (Yes/No) Saver Mode Enter measurement period in minutes (Saver Meas. Period Mode) or seconds (Not saver Mode)
  • Page 28 5 Commissioning KATflow 210 Dynamic 0.000 ... 30000 mPa.s viscosity Only if user fluid selected Density 100 ... 2000 kg/m Only if user fluid selected Medium c- speed 100 ... 3500 m/s Temperature -30 ... 300 °C Select from list ↑↓...
  • Page 29 5 Commissioning KATflow 210 Wall thickness 0.5 ... 80 mm Inner 6 ... 6500 mm diameter C-speed 600 ... 6553,5 m/s (transverse sound speed) L-Speed 600 ... 8000 m/s (longitudinal sound speed) Circumference 18.8 ... 20420.4 mm Roughness 0.0 ... 10 mm Medium Select from fluid list ↑↓...
  • Page 30 5 Commissioning KATflow 210 Select from unit list ↑↓ Units Select from list ↑↓ Mode Alarm (select on point, off point) Pulse (select value, width) Linear (select min value, max value, damping) Relay Out Select from list ↑↓ Source Channel 1, Channel 2...
  • Page 31 5 Commissioning KATflow 210 Track zero offset Track Zero flow delta time offset in ns, read from sensor Delta PROM or entered directly for special sensors Upstream transit-time offset in µs, allows for fixed Timeup delays in special sensors, buffer rods and...

  • Page 32: Diagnostics

    5 Commissioning KATflow 210 Battery voltage Volts Remaining battery capacity (mAh) Capacity Datalogger A value of zero turns the datalogger off, a non- Interval zero value turns the datalogger on and defines logging interval. 0 ... 999 s Select up to 10 items from list ↑↓...

  • Page 33: Output Configuration

    5 Commissioning KATflow 210 5.4 Output configuration There are two output connectors on the KF210. One is for serial communication, the other provides process inputs and outputs using connecting wires and/or a junc- tion box. Illustration 12: Process output junction box 5.4.1 Serial interface...

  • Page 34: Inputs/Outputs

    5 Commissioning KATflow 210 5.5 Inputs/Outputs 5.5.1 Modbus RTU An RS 485 interface is used for networking up to 32 flowmeters to a centralised computer system. Each flowmeter is given an unique address to be able to com - municate effectively. The communication protocol used conforms to the conven- tions of the Modbus RTU protocol, a description of which is given in a separate doc- ument.

  • Page 35: Analogue Voltage Output

    5 Commissioning KATflow 210 5.5.4 Analogue voltage output 0 – 10 v Voltage outputs may be assigned to process values in the “mode” section of the output menu. The outputs can be programmed and scaled within the menu struc- ture.

  • Page 36: Digital Relay Output

    5 Commissioning KATflow 210 5.5.7 Digital relay output Relay outputs may be assigned to process values in the “mode” section of the out- put menu. The relay outputs are configured using the menu structure. Wiring Electrical Form A (SPDT-NO and NC) contacts Width 3...990 ms.

  • Page 37: Heat Quantity Measurement (Hqm)

    5 Commissioning KATflow 210 5.6 Heat quantity measurement (HQM) Where equipped, heat quantity (energy) and heat flow (energy flow) can be measured. If a heat quantity unit is specified for the Process Value, the KF210 will prompt the user for the Specific Heat Capacity of the medium in J/g/K (for example 4.186 J/g/K for water).

  • Page 38: Scope Function

    5 Commissioning KATflow 210 The screen displays the received acoustic pulse and values for the signal strength, the transit time, the reference thickness, the expected sound speed, the measured thickness at the reference sound speed and the measured sound speed at the ref- erence thickness (top to bottom).

  • Page 39: Maintenance

    6 Maintenance KATflow 210 6 Maintenance KATflow flowmeters are maintenance free concerning the flow measurement func- tions. Within the scope of periodic inspections, regular inspection for signs of dam - age or corrosion is recommended for the transducers, the junction box if installed, and the flowmeter housing.

  • Page 40: Troubleshooting

    7 Troubleshooting KATflow 210 7 Troubleshooting Should there be the need to call customer service, please let us know the following details: Model code ● Serial number ● SW, HW revision ● Error log list ● Possible error messages may include the following:...
  • Page 41 7 Troubleshooting KATflow 210 COMM HS1 ERR Hardware Internal communication Power on/off, otherwise error call customer support COMM READ AVE Hardware Internal communication Power on/off, otherwise error call customer support COMM READ RAW Hardware Internal communication Power on/off, otherwise error...

  • Page 42: Technical Data

    8 Technical data KATflow 210 8 Technical data Sound Speed* Shear Wave (at 25 ºC) Material ft/s Steel, 1% Carbon, hardened 3,150 10,335 Carbon Steel 3,230 10,598 Mild Steel 3,235 10,614 Steel, 1% Carbon 3,220 10,565 302 Stainless Steel 3,120...
  • Page 43 8 Technical data KATflow 210 All data given at 25 ºC (77 ºF) unless otherwise stated Change Kinematic Viscosity Sound Speed v/ºC Chemical Specific Substance ft/s m/s/ºC mm x10-6 ft Formula Gravity Acetic anhydride (CH3CO)2O 1.082 (20 ºC) 1,180 3,871.4 0.769...
  • Page 44 8 Technical data KATflow 210 (-89 ºC) (-128 ºF) Methanol CH4O 0.791 (20 ºC) 1,076 3,530.2 0.695 7.478 Methyl acetate C3H6O2 0.934 1,211 3,973.1 0.407 4.379 Methyl alcohol CH4O 0.791 1,076 3,530.2 0.695 7.478 1,328 4,357 Methyl benzene C7H8 0.867 4.27...
  • Page 45 8 Technical data KATflow 210 Tetrachloro-Methane CCl4 1.595 (20 ºC) 3,038.1 0.607 6.531 Tetrafluoro-methane 875.24 (- 2,871.5 1.75 (-150 ºC) 6.61 (Freon 14) 150 ºC) (-283 ºF) 1,328 4,357 Toluene C7H8 0.867 (20 ºC) 4.27 0.644 6.929 (20 ºC) (68 ºF)
  • Page 46 8 Technical data KATflow 210 100.4 1525 4997 102.2 1527 5010 104.0 1528 5013 105.8 1530 5020 107.6 1532 5026 109.4 1534 5033 111.2 1535 5036 113.0 1536 5040 114.8 1538 5046 116.6 1538 5049 118.4 1540 5053 120.2 1541 5056 122.0...
  • Page 47 8 Technical data KATflow 210 197.6 1549 5082 199.4 1548 5079 201.2 1547 5076 203.0 1547 5076 204.8 1546 5072 206.6 1545 5069 208.4 1544 5066 210.2 1543 5063 212.0 1543 5063 220.0 1538 5046 230.0 1532 5026 240.0 1524 5000 250.0...

  • Page 48: Specification

    9 Specification KATflow 210 9 Specification General Measuring principle : Ultrasonic time difference correlation principle Flow velocity range : 0.01 ... 25 m/s Resolution : 0.25 mm/s Repeatibility : 0.15 % of measured value ±0.015 m/s Accuracy : ± 1 ... 3 % of measured value depending on application, ±...
  • Page 49 9 Specification KATflow 210 Internal data logger Storage capacity : In excess of 1 million data points (16MB) Logging data : Up to ten selected variables Communication Serial interface : Universal Serial Bus (USB) Data : Instantaneous measured value, parameter set and configuration, logged data...

  • Page 50: Index

    9 Specification KATflow 210 10 Index Acoustic coupling gel Output Configuration Analogue outputs Output settings Certificate of Conformity Outside and Inner Diameter Commissioning Packaging Customer Return Note (CRN) Passes Data download difficulties Pipe material selection Datalogger Pipe parameters Diagnostic displays...

  • Page 51: Appendix A

    Appendix A KATflow 210 Appendix A Certificate of Conformity...

  • Page 52: Appendix B

    Appendix B KATflow 210 Appendix B Customer Return Note (CRN) Company Address Name Tel. No. E-mail Instrument model Katronic contract no. (if known) Serial number Sensor type(s) Sensor serial number(s) The enclosed instrument has been used in the following environment (please √):...
