Roborock Vacuum cleaner
User`s Manual
Thank you for choosing our device!

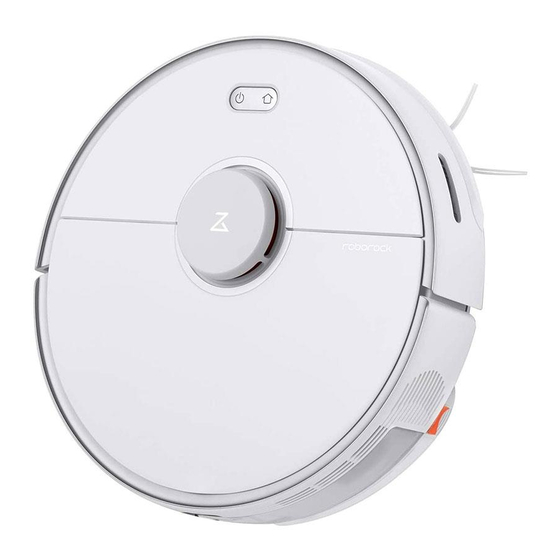

Smart robot equipped with a high-precision laser sensor. The vacuum cleaner
independently determines the cleaning route, performs the consistent cleaning
of the entire area of the room and is characterized by high productivity. First,
the device sweeps the floor, and then absorbs all foreign objects. The power
of drawing dust and foreign objects is 2000 Pa. At the same time, the vacuum
cleaner is equipped with many sensors and a powerful obstacle handling system,
so the device easily adapts to the situation in the room and chooses the optimal
trajectory of motion. At the end of cleaning, the robot automatically returns to the
docking station.
With the help of the mobile application «MiJia» you can check the cleaning
trajectory and the status of the robot in real time, and also set up a cleaning zone
and use the remote control device.
Make your life more comfortable. Free yourself from everyday homework and
enjoy life.
Pleasant use!
Scan the QR code for more
details or for advice.
Overview
The main unit
Clean/On/Off
Charge
Button to open a top panel of the
vacuum cleaner
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Xiaomi roborock
Summary of Contents for Xiaomi roborock
- Page 1 Overview The main unit Roborock Vacuum cleaner Partial cleaning User`s Manual Thank you for choosing our device! Clean/On/Off Smart robot equipped with a high-precision laser sensor. The vacuum cleaner independently determines the cleaning route, performs the consistent cleaning of the entire area of the room and is characterized by high productivity. First, the device sweeps the floor, and then absorbs all foreign objects.
- Page 2 Overview Dust Collector Partial cleaning - Press the button to activate the partial cleaning function. Cleaning the room / turning off and turning on the device - Press the button to turn on the cleaning function. Dust cover panel - Press and hold the button to turn the device on or off. Ring-shaped indicator - White color: level of charge>...
- Page 3 Overview Module for wet cleaning Water tank cover Filters Connector for mounting the nozzle Dock-station return sensor Fixing of the module for wet cleaning Water tank Collision sensor (bumper) Attachment for wet cleaning Zone of fixing of an attachment for wet Laser rangefinder sensor cleaning Laser tension sensor...
- Page 4 Setting Setting Wi-Fi indicator The correct location of the docking station: More than 0.5 m of free space on the left; - Slowly flashing: waiting for connection; More than 0.5 m of free space on the right; - Fast flashing: during connection; More free space 1.5 m ahead.
- Page 5 Setting during cleaning, as this may result in power failure, damage to the devices and damage to the cables. Start cleaning - If the cleaning time is less than 10 minutes, by default the device cleans the room twice. When the flashing ring-shaped indicator starts to glow constantly, it means that the Charging charging of the device is completely completed.
- Page 6 Using Troubleshooting Partial cleaning If a malfunction occurs during the cleaning process, the ring-shaped indicator of the device will flash rapidly in red and the voice message will turn on. To solve this problem, see the When the device is in the standby mode or paused, press the button for partial cleaning, «Troubleshooting»...
- Page 7 Attention: for optimal cleaning results it is recommended to change the main brush once * Not included in the standard configuration, please order it from www.roborock.com. every 6-12 months. Using a special tape, separate the area that you do not need to clean (for example, rooms,...
- Page 8 Press the catch to remove the filter. Maintenance Attention: Dust collector and filter - It is strongly recommended to dry the filter before using it (at least 24 hours to dry the * recommended to clean it weekly filter). - We recommend that you use two filters in turn. 1.
- Page 9 Maintenance Wheel * recommended to clean monthly Attachment for wet cleaning * recommended to rinsing after each use 1. Turn the vacuum cleaner to remove the wheel. 2. Clean the wheel of excess dirt and hair. 3. Install the wheel in the vacuum cleaner. 1.
- Page 10 Dock station Dock station * recommended to clean monthly Using a dry soft cloth, wipe the contact areas for recharging docking station. Update You can update the software using the mobile application. Before performing the update, install the vacuum cleaner on the docking station and make sure that there is sufficient charge (more than 20%).
- Page 11 Troubleshooting Troubleshooting Error 9: Install the dust bag and filter. If a malfunction occurs during a cleaning, the ring-shaped indicator of the device starts to flash rapidly in red and the voice message will turn on. Install the dust bag and filter, and make sure they are installed correctly; If the device Recommendations continues to show an error, try replacing the filter;...
- Page 12 Technology Service Center by number: 400-900-1755 or go to the official site of the company «Shitou Technology roborock». Is the electricity consumed while the device is in the docking station? During the stay of the device on the docking station, in order to maintain the level of its F.A.Q.
- Page 13 - Do not allow heavy or sharp objects (eg glass, nails, etc.) to enter the vacuum cleaner; XIAOMI-MI.COM - Do not accept the laser range finder’s protective panel, the top panel of the vacuum...
