Technical Manual Evolution Hopper Standard Interface Model (EV01000)

3.2 Options

3.2.1 Track options

The standard Evolution Hopper handles coins in the diameter range of 21.01 – 30.00 mm,
An Euro coin track is available for all Euro coins (between 19.00 – 26.40 mm).
The small coin Evolution Hopper handles coins in the diameter range of 16.25 mm 20.90 mm.

3.2.2 Connector position

The 12pin connector can be in one of two positions, either on the opposite side of the coin exit, known
as the Rear (R) position, or on the same side as the coin exit, known as the Front (F) position.
Standard for the Evolution hopper is the connector on the adjacent position.
The user can easily change this on an Evolution Hopper by loosening two screws on the bottom
section, taking out this part and then placing the cable with the connector at the opposite side.
Connector can be located
at the Rear or Front
positions

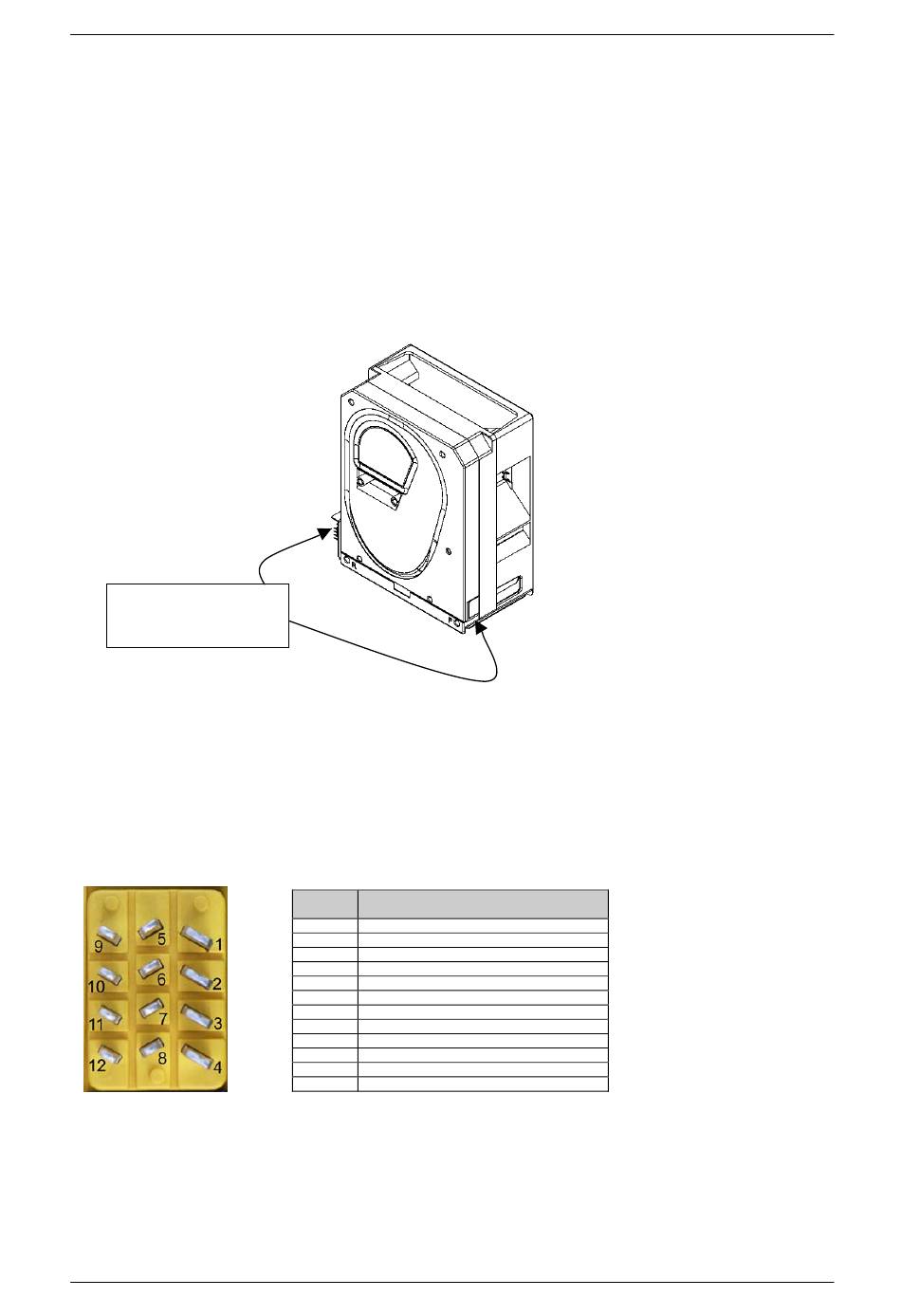

Figure 1: Connector locations

3.2 Level Sensing

All Evolution Hoppers are standard supplied with a low level and high level sensing function.

3.3 Connectors

Evolution Hopper is only available with the Industry compatible connector.
(Compatible with the green CINCH connector)

Figure 2: Connector pin-out

Pin
Description
1
Motor Supply 0 Vdc
2
Logic Supply 0 Vdc
3
Coin Exit Output
4
IN1
5
Security Output
6
High or Top level Sense Output
7
Low Level Sense Output
8
IN2
9
Motor Supply 24Vdc
10
Logic Supply 12 - 24Vdc
11
Coin Exit Output
12
IN3
Page 7 of 22
22-10-07
