Technical Manual Evolution Hopper Standard Interface Model (EV01000)

7. Hopper Application

7.1 Power Supply

For ease of use and maximum noise suppression, the 0 volt logic line (pin 2) and the motor 0
volt line (pin 1) are not commoned inside the hopper. This means the outputs from the hopper
(Coin Exit and Security) are noise free.

7.2 Suggested hopper connection

Machine
24Vdc
Optional
24Vdc
Power
Power
Switches
Supply
0V
VLogic
12-24Vdc
Logic
Supply
0V

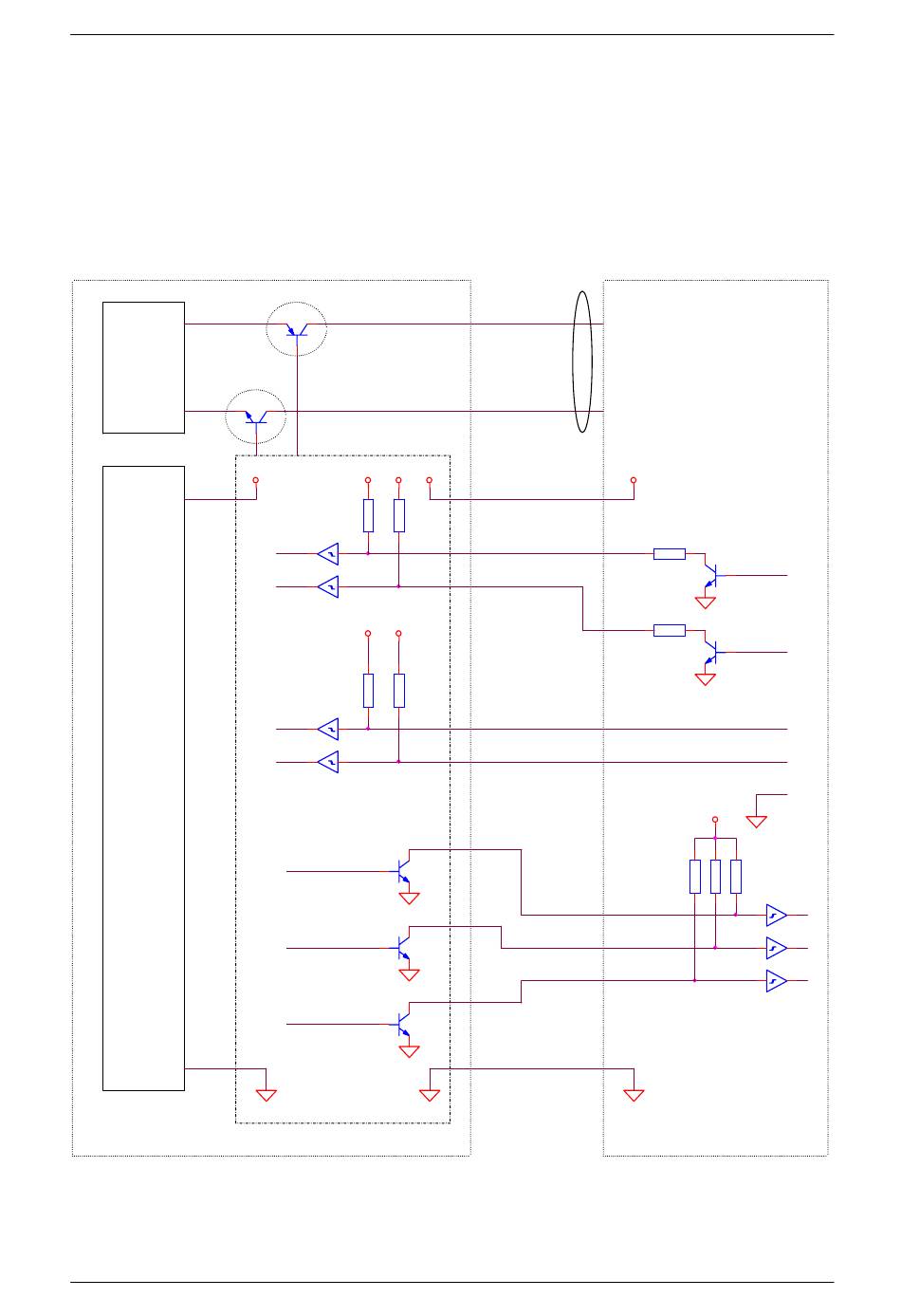

Figure 3: Hopper connection diagram

VL VL VL
10K
10K
VL VL
47K 47K
Set Mode In1
Set Mode In2
Start/Stop
CPU
Board
Page 14 of 22
Twist
Wires
Motor 24V dc Supply
Motor Gnd Supply
VL
Logic Power Supply
Security Output
Coi n Exit Output
High or Top Level Sense
Low Level Sense
NPN
In1
In2
NPN
In3
NPN
Logic Gnd
Evo Hopper
Pin9: Motor Supply 24Vdc
Pin1: Motor Supply 0V
VLogic
Pin10: Logic Supply 12-24Vdc
Pin5: Security Output
47E
Pin3,11: Coin Sensor Output
47E
Pin6: High or Top plate
Pin7: Low Level plate
Common ground plate
VLogic
39K
Pin4: In1
Pin8: In2
Pin12: In3
Pin2: Logic Supply 0V
22-10-07
