BATTERY DISCONNECT
SERVICE MANUAL

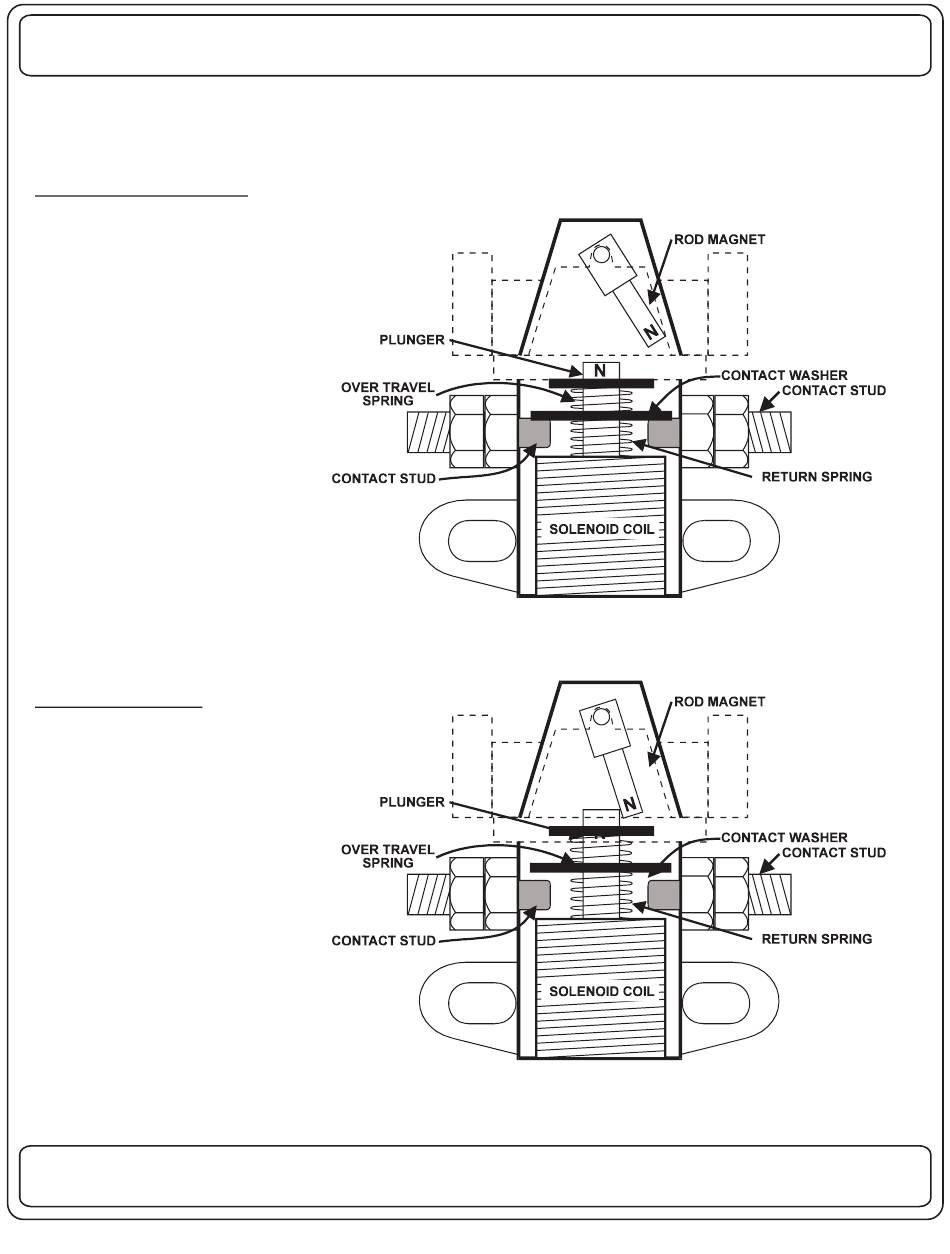

Relay Opening
Negative polarity applied to coil.
Current flowing in coil.
Plunger pulled in.
Rod magnet opposed by plunger
same polarity magnetic field,
swings out to side of housing.
FIGURE 3
Relay Open
Power removed.
No current flowing in coil.
Plunger pushed up by return spring
while magnet is off to the side.
Contacts open. Magnet comes
to rest at side of plunger.
FIGURE 4
131 Eisenhower Lane North
Intellitec
Lombard, IL 60148
630.268.0010 / 1.800.251.2408
www.intellitec.com
4
P/N 53-00066-100 Rev. B 030905
