System Description; Specifications; Typical Installation - Intellitec Battery Disconnect BD0 Installation Manual

BD0 FOR COACH - NO VOLTMETER
QTY 1 BDO BEZEL ASSY (BRN/GLD)
QTY 1 BD RELAY, 100 AMP, 12V
QTY 1 CABLE, BDO/1 20 FEET
BD1 FOR COACH - WITH VOLTMETER
QTY 1 BD1 BEZEL ASSY (BRN/GLD)
QTY 1 BD RELAY, 100 AMP, 12V
QTY 1 CABLE, BDO/1 20 FEET

SPECIFICATIONS

Relay Actuation Voltage
Continuous carry current
Short term carry current
Intellitec
131 Eisenhower Lane North
Lombard, IL 60148
630.268.0010 / 1.800.251.2408
FAX 630.916.7890
www.intellitec.com
Battery Disconnect
BATTERY DISCONNECT SYSTEM
01-00066-000
(BLK/SLV) 01-00066-004
01-00055-000
11-00063-000
01-00066-001
(BLK/SLV) 01-00066-005
01-00055-000
11-00063-000
10.5 Volts minimum
100 Amps maximum
500 Amps - 30 seconds maximum

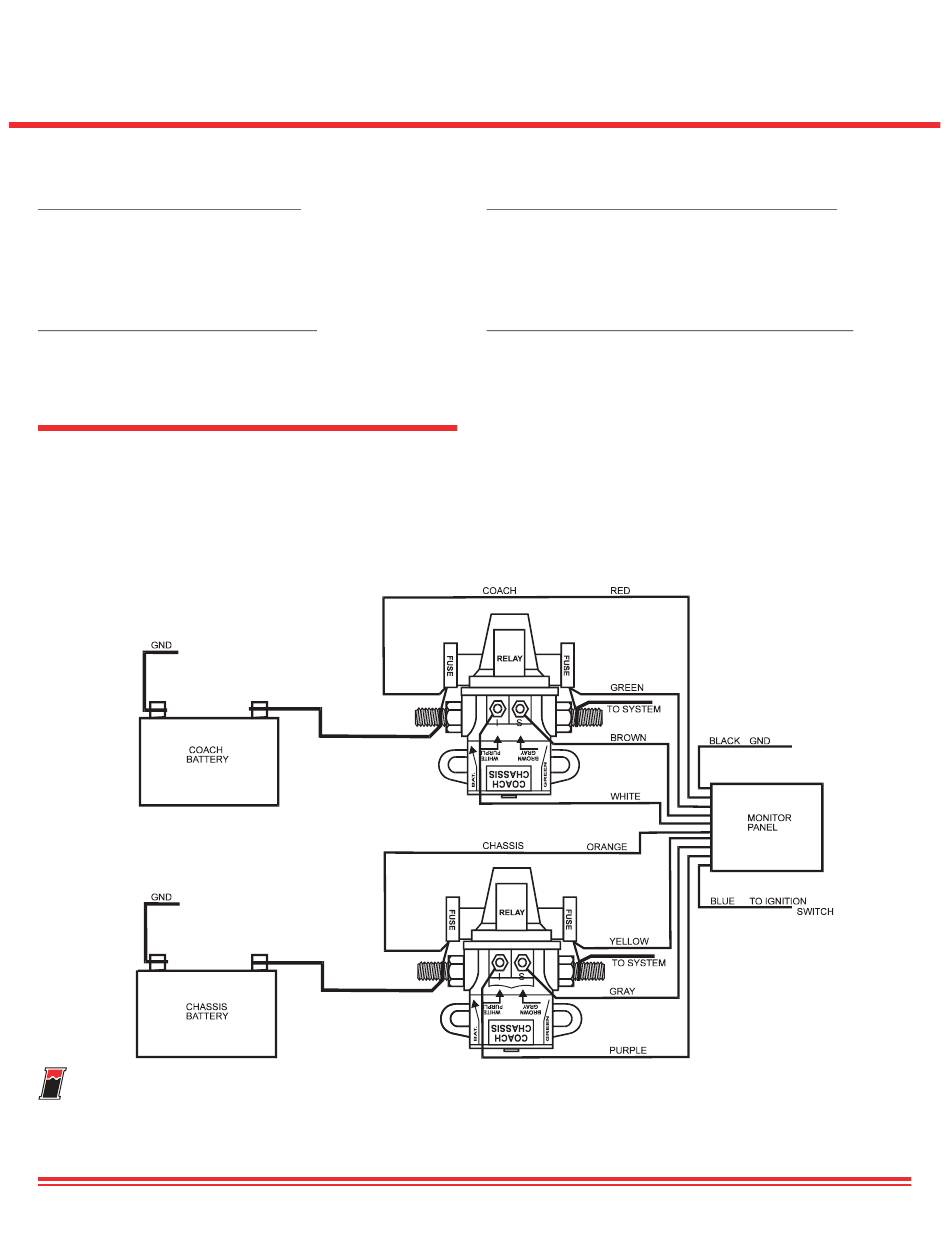

Typical Battery Disconnect Installation
BD2 FOR COACH & CHASSIS - NO VOLTMETER
QTY 1 BD2 BEZEL ASSY (BRN/GLD)
QTY 1 BD RELAY, 100 AMP, 12V
QTY 1 CABLE, BD2/3 25 FEET
BD3 FOR COACH & CHASSIS - WITH VOLTMETER
QTY 1 BD3 BEZEL ASSY (BRN/GLD)
QTY 1 BD RELAY, 100 AMP, 12V
QTY 1 CABLE, BD2/3 25 FEET
P/N 53-00066-000 Rev. B 111504
01-00066-002
(BLK/SLV) 01-00066-006
01-00055-000
11-00139-000
01-00066-003
(BLK/SLV) 01-00066-007
01-00055-000
11-00139-000
