Intellitec Battery Disconnect BD0 Installation Manual

Meet the remote battery disconnect that makes sure
a RV's batteries are alive, well and ready for the road.
Battery Disconnect is an easy-to-install system that will
allow RV owners to disconnect coach and chassis
batteries with just the touch of a switch. With
Disconnect , the owner can be sure the batteries are
disconnected when his RV is not in use or being stored
off-season. It is conveniently located inside the RV, and
it's all remote.
The heart of the Battery Disconnect
Intellitec invention. A latching relay, capable of carrying
heavy coach currents, draws power only when switched
on or off; yet, it requires no power to stay open or closed.
This sturdy relay is sealed against the environment and is
designed for the toughest use.
Unwanted battery drain during storage, or when the RV is
not in use, is not the only customer benefit of
Disconnect . Batteries are protected from overcharging
when the RV is plugged in for an extended time. Battery
Disconnect also prevents shorts or fire hazard while
working on the 12 Volt electrical system.
Easy Installation
Installation detail is straightforward, easy-to-follow, and
is simple enough that your customers can install it
themselves. (Shown on the reverse side of this sheet.)
If help is needed, there is a toll-free number that you can
call for assistance from Intellitec.
Intellitec
131 Eisenhower Lane North
Lombard, IL 60148
630.268.0010 / 1.800.251.2408
FAX 630.916.7890
www.intellitec.com
Battery Disconnect
Battery
system is another
Battery
Models and Specifications
There are four Battery Disconnect models in the product
line. There is one that's right for every RV and every
customer. See model choices with part numbers as
listed.
Intended for remote disconnect of a single battery.
Requires a relay, 20 ft. of cable, and a monitor panel
with ON/OFF indicator.
Intended for remote disconnect of a single battery.
Requires a relay, 20 ft. of cable, a monitor panel with
ON/OFF indicator, and digital voltmeter.

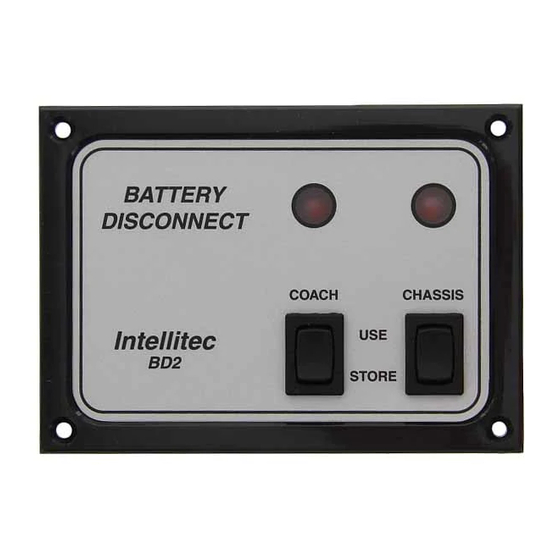

Intended for remote disconnect of both coach and
chassis batteries of motor homes. The BD2 system
requires two relay, 25 ft. of cable, monitor panel with two
ON/OFF indicators, and ignition interlock to prevent
disconnection while engine is running.
Intended for remote disconnect of both coach and
chassis batteries of motor homes. The BD3 requires two
Relays, 25 ft. of cable, and monitor panel with two
ON/OFF indicators, digital voltmeter and ignition
interlock to prevent disconnection while engine is
running.
P/N 53-00066-000 Rev. B 111504
