Installation Manual
BATTERY DISCO
ECT
SERVICE MANUAL

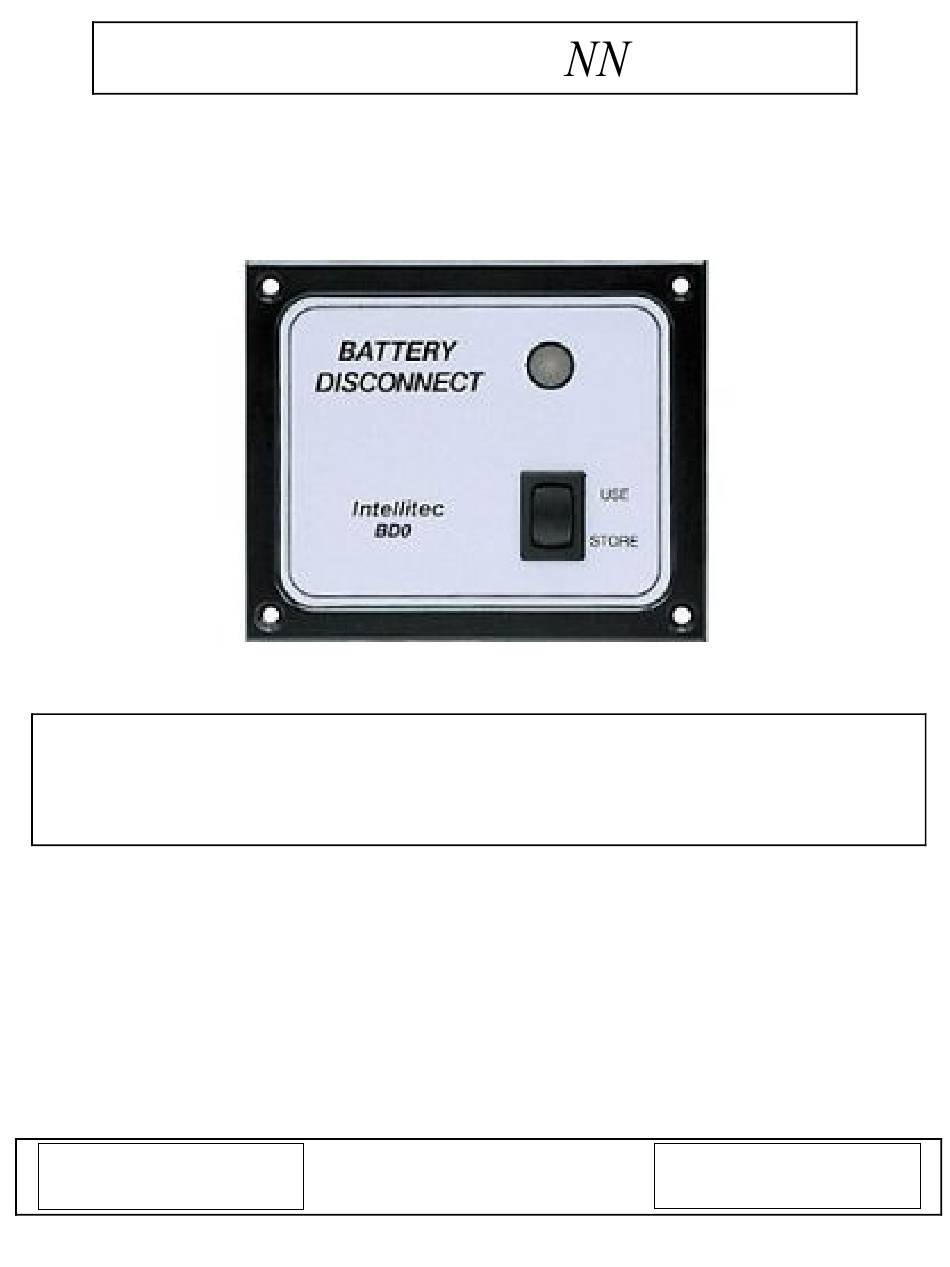

Intellitec Battery Disconnect Panel, BD0, 01-00066-004
Warning: The Battery Disconnect system connects directly to the vehicle's positive battery
terminal. Inadvertent shorts across the battery or to ground, may cause severe damage and
injury. Use extreme caution when working with these wires. Always wear safety glasses when
working with the battery connections.
Battery Disconnect provides a simple and safe means of remotely disconnecting
batteries of an RV or boat. With a touch of a remote switch, the batteries will be com-
pletely disconnected, preventing unwanted drain when the RV / boat are put into
storage.
The heart of the system is a unique latching relay developed specifically for this pur-
pose. While this relay is capable of carrying heavy currents, it requires NO power to
stay open or closed. It only draws power during activation. The relay is sealed against
the environments and is designed to withstand the shock and vibration experienced in
the most severe RV or boat applications.
INTELLITEC
PDX RV LLC
1
Advertisement
Related Manuals for Intellitec Battery Disconnect BD0
Summary of Contents for Intellitec Battery Disconnect BD0
- Page 1 BATTERY DISCO SERVICE MANUAL Intellitec Battery Disconnect Panel, BD0, 01-00066-004 Warning: The Battery Disconnect system connects directly to the vehicle’s positive battery terminal. Inadvertent shorts across the battery or to ground, may cause severe damage and injury. Use extreme caution when working with these wires. Always wear safety glasses when working with the battery connections.
- Page 2 When the voltage is removed from the coil, the plunger gets pushed upward by the return spring, but cannot move because the rod magnet is in the way. See FIGURE 2 Intellitec Battery Disconnect Relay with No Fuses, 01-00055-002 http://www.pdxrv.com/catalog/i1362.html...
- Page 3 Positive polarity applied to coil. Current flowing in coil. Plunger pulled in to coil. Rod magnet attracted to plunger by opposite polarity. Relay Closed Power removed from coil. Magnet blocks plunger from coming up, maintaining contact. INTELLITEC PDX RV LLC...
- Page 4 FIGURE 3 When the voltage is removed from the coil, the plunger gets pushed upwards by the return spring, breaking the connection between the two large terminals. See FIGURE 4. Intellitec Battery Disconnect Relay with Fuses, 01-00055-000 http://www.pdxrv.com/catalog/i1361.html INTELLITEC PDX RV LLC...
- Page 5 Relay Open Power removed. No current flowing in coil. Plunger pushed up by return spring while magnet is off to the side. Contacts open. Magnet comes to rest at side of plunger. PDX RV LLC INTELLITEC...
- Page 6 A typical motor home may use one or two relays to disconnect the batteries. These relays are usually independent and operate from a switch panel located inside the coach. A harness is used to connect from the panel to the relays. The Intellitec panels are offered in four models. They are:...
-
Page 7: Troubleshooting
# 1 while the switch is depressed. The STEP 6 voltage should read the same approximate value as the batteries. If not replace disconnect panel, refer to PARTS LINK # 2 (page 8). If the reading is the same go to step 7. INTELLITEC PDX RV LLC... - Page 8 10.5 Volts DC for the latching relay to close or STEP 10 open. If batteries are below 10.5 Volts DC, charge batteries and retest. If the batteries are charged and are above 10.5 Volts DC go to step11. INTELLITEC PDX RV LLC...
- Page 9 Is coach plugged in, unplug coach and retest panel remains on although Is engine running, turn engine off and retest STEP 15 relay is off. BD0 & BD1 If the panel fails one or both retests then go to step MODELS ONLY INTELLITEC PDX RV LLC...
- Page 10 BATTERY DISCO Possible Trouble Shooting Cause/Solution Problem Verify that the relay is actually in the disengaged House indicator light on (unlatched) state. With a test light, probe the larger panel remains on although 5/16” stud terminals on each side of the relay. Only relay is off.
- Page 11 (+ on the "I" terminal and STEP 26 ground on the "S" terminal), If 0 volts go to step 27. If voltage is 10.5 VDC or larger between the “I” & “S” terminals, replace house relay. INTELLITEC PDX RV LLC...
- Page 12 10.5 Volts DC for the latching relay to close or STEP 32 open. If batteries are below 10.5 Volts DC, charge batteries and retest. If the batteries are charged and are above 10.5 Volts DC go to step33. INTELLITEC PDX RV LLC...
- Page 13 Is coach plugged in, unplug coach and retest panel remains on although Is engine running, turn engine off and retest STEP 37 relay is off. BD2 & BD3 If the panel fails one or both retests then go to step MODELS ONLY INTELLITEC PDX RV LLC...
- Page 14 If the test light powers up, replace the relay and retest. If it does not, then probe the green wire. If there is voltage present replace the harness, refer to PARTS LINK #1 (page 7) INTELLITEC PDX RV LLC...
- Page 15 RV, replace fuse, if fuse re-blows either attempt to find damage in the harness STEP 46 and repair or replace harness, (see PARTS LINK# 1 page 7). If fuse doesn’t blow then go to step 47. PDX RV LLC INTELLITEC...
- Page 16 STEP 51 wire on pin # 6 while the switch is pressed. The voltage should read the same approximate value as the batteries. If not replace disconnect panel, refer to PARTS LINK # 2 (page 8). INTELLITEC PDX RV LLC...
- Page 17 PARTS LINK # 2 (page 8). If there is voltage on the blue wire, TBSH the ignition circuit as the ignition circuit is still on and is not being controlled by the ignition switch. INTELLITEC PDX RV LLC...
- Page 18 Is engine running / ignition switch on, turn engine panel remains on, although STEP 62 off and retest relay is off. BD2 & BD3 If the panel fails retests then go to step 63. MODELS ONLY INTELLITEC PDX RV LLC...
- Page 19 MODELS ONLY (latched) state. If only one is powering up the test light go to step 45. If both 5/16” terminals are powered up go to step 68. INTELLITEC PDX RV LLC...
- Page 20 PARTS LINK #1 (page 7). If the voltage reading is the same as the nominal battery reading then replace battery disconnect panel, refer to PARTS LINK #2 (page 8) INTELLITEC PDX RV LLC...
- Page 21 PARTS LINK #1 (page 7). If the voltage reading is the same as the nominal battery reading then replace battery disconnect panel, refer to PARTS LINK #2 (page 8) INTELLITEC PDX RV LLC...
- Page 22 PAGE 22...
- Page 23 PAGE 23...
