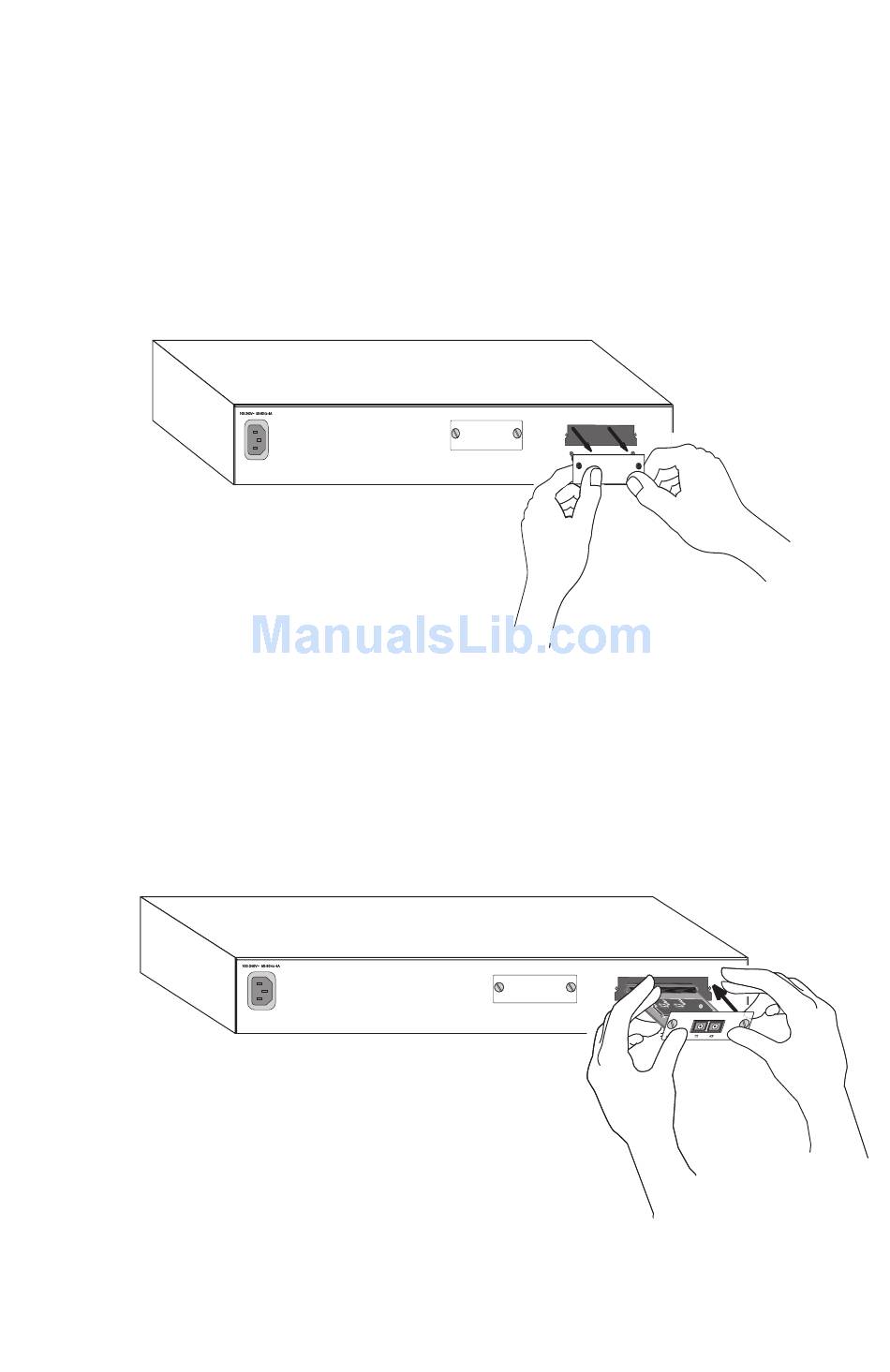

Remove the installed module or faceplate: Firmly pull on
4.
the screws until the module is free of the switch. Carefully
slide the module straight out of the slot.
Keep the original faceplate for future use. If you should
remove the module, replace the faceplate to prevent dust and
debris from entering the unit and to maintain proper air flow.
Insert the new module into the switch: Holding the new
5.
module with the text on the front panel upright, carefully slide
the module into the lower slot on the rear panel, and press
gently until it snaps into place. Be sure the new module's front
panel is flush with the switch panel.
I
NSTALLING THE
Slot 1
Slot 2
Slot 1
M
ODULE
Slot 2
1000BASE-SX Module
5
