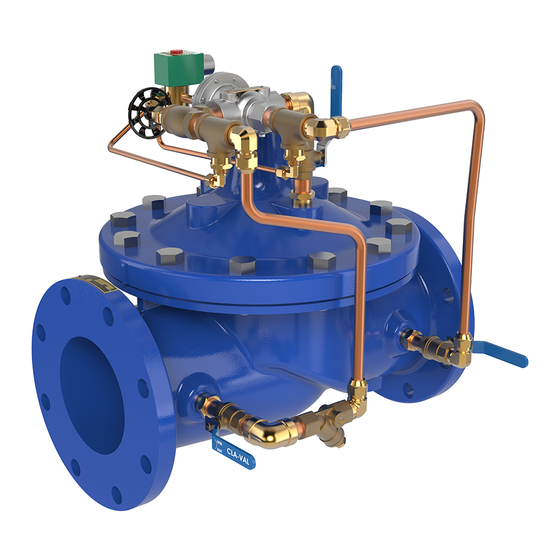

Hytrol valve
Hide thumbs Also See for 600 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation, Operation & Maintenance Manual
136-03/636-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for CLA-VAL 600 Series

Summary of Contents for CLA-VAL 600 Series

  • Page 1 136-03/636-03...

  • Page 5: Principles Of Operation

    (usually atmosphere) the line pressure With the use of a Cla-Val. "modulating chamber the valve closes drip-tight. (5 psi Min.) at the valve inlet opens the control," which reacts to line pressure valve.

  • Page 6: Flow Direction

    When flow is “up-and-over the seat,” it is in “normal” flow and the valve will fail in the open position. When flow is “over- 2. Cla-Val Model X101 Valve Position Indicator. This pro- the seat-and down,” it is in “reverse” flow and the valve will fail in the closed position.
  • Page 7 (See “Maintenance” the valve should be fully open. Section for procedure.) 6. If the valve has a Cla-Val X101 Position Indicator, observe the Tight Sealing Check (#3) indicator to see that the valve opens wide. Mark the point of max- imum opening.

  • Page 8: Preventative Maintenance

    Thread Size (UNF Internal) 1 1/4" —2 1/2" Preventative Maintenance 10—32 3"—4" 1/4—28 The Cla-Val Co. Model 100-01 Hytrol Valve requires no lubrication or 6"—14" 3/8—24 packing and a minimum of maintenance. However, a periodic inspec- 16" 1/2—20 tion schedule should be established to determine how the operating 3/4-16 conditions of the system are affecting the valve.

  • Page 9: Inspection Of Parts

    Inspection of Parts Lime Deposits After the valve has been disassembled, each part should be One of the easiest ways to remove lime deposits from the valve examined carefully for signs of wear, corrosion, or any other stem or other metal parts is to dip them in a 5-percent muriatic abnormal condition.
  • Page 10 INLET OUTLET TOP VIEW GLOBE PATTERN PARTS LIST Item Description Pipe Plug Drive Screws (for nameplate) Hex Nut (8” and larger) Stud (8” and larger) Cover Bearing Cover Stem Nut Diaphragm Washer Diaphragm Spacer Washers Disc Guide Disc Retainer Disc Stem OUTLET Seat...
  • Page 13 100-01 Hytrol. Only one part has been changed - the body. It is designed with different size inlet, seat The 600 series main valves have only one part -the body- that is and outlet openings. The 100-20 Hytrol has inlet and outlet different from standard 100 Series Cla-Val main valve parts.
  • Page 14 20" — 24" COVER DETAIL 3" — 6" COVER DETAIL CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

  • Page 15: Maintenance Instructions

    INSTALLATION AND BULLETIN 8320 MAINTENANCE INSTRUCTIONS 3-WAY SOLENOID VALVES, NORMALLY OPEN ASCO NORMALLY CLOSED AND UNIVERSAL CONSTRUCTION FORM NO. V5291R2 SOLENOID TEMPERATURE DESCRIPTION Standard catalog valves are supplied with coils designed for contin- Bulletin 8320 is a small 3-way solenoid operated valve with all three uous duty service.
  • Page 16 IF THE VALVE HAS A MANUAL OPERATOR, A HOLE MUST BE MADE THROUGH THE MOUNTING SURFACE FOR THE OPERATOR STEM. CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © N-V5291 (R-3/2011)

  • Page 17: Installation And Maintenance Instructions

    INSTALLATION AND BULLETIN 8016G MAINTENANCE INSTRUCTIONS OPEN-FLAME, GENERAL PURPOSE, ASCO WATERTIGHT/EXPLOSIONPROOF SOLENOIDS FORM NO. V6583R5 -SERVICE NOTICE- FOR BLACK ENCLOSURE TYPES 7 AND 9 ONLY CAUTION: To prevent fire or explosion, do not install solenoid and/or valve ASCO ® solenoid valves with design change letter "G" in the catalog where ignition temperature is less than 165˚...
  • Page 18 in-lbs (1,7 - 2,3 Nm). On solenoids with screw terminals, the socket head All solenoid operators and valves should be cleaned periodically. The time between cleaning will vary depending on medium and service conditions. screw holding the terminal block to the solenoid is the grounding screw. In general, if the voltage to the solenoid is correct, sluggish valve operation, Torque the screw to 15 - 20 in-lbs (1,7 - 2,3 Nm).
  • Page 19 Torque Chart Part Name Torque Value in inch-Pounds Torque Value in Newton-Meters solenoid base sub-assembly 175 ± 25 19.8 ± 2.8 valve bonnet (3/4" bonnet constructions) 90 ± 10 10.2 ± 1.1 bonnet screw (3/8" or 1/2" NPT pipe size) bonnet screw (3/4"...

  • Page 20: Torque Chart

    CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © N-V6583 (R-3/2010) Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
  • Page 22 • Material Handwheel Packing CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. PL- CN (R-3/2011)
  • Page 23 F), and the size of the external connection (refer to column B or G). CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
  • Page 24 CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. PL-CK2 (R-3/2011)

  • Page 25: Pressure Range

    20534309C 0 - 400 psi 20534310K *Specify desired pressure range and valve location (inlet or outlet) on order. 1701 Placentia Ave • Costa Mesa CA 92627 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: info@cla-val.com • www.cla-val.com CLA-VAL • •...
  • Page 26 *Specify desired pressure range and valve location (inlet or outlet) on order. CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

  • Page 27: Specifications

    • Easy Maintenance and Cleaning • Protected Indicator Rod The Cla-Val Model X101 Visual Position Indicator is designed to display Cla-Val valve position quickly and easily. A solid brass indicator rod fastened directly to the valve stem moves up and down inside a pyrex tube.
  • Page 28 4687 Christie Drive Chemin dés Mesanges 1 Beamsville, Ontario CH-1032 Romanel/ Canada L0R 1B4 Lausanne, Switzerland Phone: 905-563-4963 Phone: 41-21-643-15-55 Fax: 905-563-4040 Fax: 41-21-643-15-50 E-X101 (R-04/2018) COPYRIGHT CLA-VAL 2017 Printed in USA © www.cla-val.com Specifications subject to change without notice.
  • Page 29 • Material • Part Number CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. PL- X101 (R-3/2011)
  • Page 30 Brass No parts available. Rreplacement assembly only. 3/8 NPT P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com CLA-VAL © Copyright Cla-Val 2012 Printed in USA Specifications subject to change without notice.
  • Page 31 INLET SIZE & inquiries concerning valve operation, it is important to CAT NO. EINTRITT STOCK properly identify Cla-Val products already in service CODE ENTREE by including all nameplate data with your inquiry. MFD. BY CLA-VAL ENTRADA Pertinent product data includes valve function, size, NEWPORT BEACH, CALIF, U.S.A.

  • Page 32: Limited Warranty

    This product. Cla-Val shall not be liable for any damages or charges for warranty is expressly conditioned on the purchaser’s providing written labor or expense in making repairs or adjustments to the product.
  • Page 33 INSTALLATION / OPERATION / MAINTENANCE REPAIR KITS MODEL Model 100-01 Hytrol Main Valve BUNA-N MATERIAL RUBBER KIT REPAIR KIT REBUILD KIT STUD & NUT KIT STOCK NO. STOCK NO. STOCK NO. STOCK NO. 3/8” 9169801K 21176614B 21176633J 1/2” 9169802H 21176602F 21176615A 21176634H 3/4”...
  • Page 34 When ordering, please give complete nameplate data of the valve and/or control being repaired. MINIMUM ORDER CHARGE APPLIES CLA-VAL 1701 Placentia Ave • Costa Mesa CA 92627 Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: info@cla-val.com • www.cla-val.com © Copyright Cla-Val 2018 Printed in USA Specifications subject to change without notice.

This manual is also suitable for:

636-0336-03100-01100-20
