- Page 1 Pilots Manual...
-
Page 2: Table Of Contents
CONTENTS Warning Thank You Team Ozone Your Angel SQ Harness Installation Deploying your Angel SQ Packing Care and Maintenance Ozone Quality Guarantee Technical Specifications Materials EN v1.1 July 2017... -
Page 3: Warning
WARNING THANK YOU • Paragliding is a potentially dangerous sport that can cause serious injury including bodily harm, paralysis and Thank you for choosing Ozone. death. Using Ozone equipment is undertaken with the full knowledge that paragliding involves such risks. As a team of free flying enthusiasts, competitors and adventurers, our mission is to produce paragliding • As the owner of an Ozone emergency rescue parachute you take exclusive responsibility for all risks associated equipment of the highest quality using cutting edge designs and the best technical materials available. with its use. Inappropriate use and or abuse of your equipment will increase these risks. Any liability claims resulting from use of this product towards the manufacturer, distributor or dealers is excluded. -
Page 4: Team Ozone

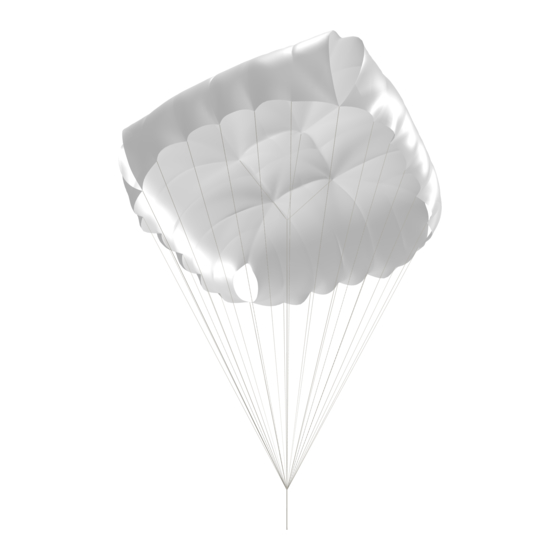

TEAM OZONE YOUR ANGEL SQ Everyone at Ozone continues to be driven by our passion for flying, our love of adventure and our quest to see Everyone needs an Angel… Representing the latest in lightweight square parachute design technology, the Ozone’s paraglider development create better, safer and more versatile paragliders. Angel SQ is a parachute you can rely on. The design team consists of David Dagault, Luc Armant, Fred Pieri, Russell Ogden and Honorin Hamard. Modern square rescue parachute designs have proven time and again to offer significantly better pendulum stability and sink rate performance than traditional round parachutes, whilst retaining the fast opening times Dav has a wealth of experience in competition flying, XC, XAlps and paraglider design. Luc, a dedicated XC that are critical for safety. and competition addict has a background in naval architecture. Fred, our resident geek is a mathematian, mechanical engineer and vol biv specialist. Russ is a competition pilot and test pilot with 1000s of hours testing... - Page 5 Panels option. Apex lines Lines Maillons must be closed tightly - finger tight then 1/2 a turn with pliers is sufficient. Do not overtighten. Attach the reserve handle to one of the loops on the deployment bag using a small maillon or a larks foot knot. Please refer to your harness manual to ensure the correct orientation. Bridle The Angel SQ is now ready to be installed into the deployment system of your harness. For detailed instructions of fitting the Angel into the deployment system please consult your harness manual. WARNING: Ozone strongly recommends that the reserve parachute system is installed by a qualified professional. Always seek experienced advice if you have any doubts.
-
Page 6: Deploying Your Angel Sq
DEPLOYING YOUR ANGEL SQ PACKING If you are in the unfortunate situation of needing to throw your reserve, do so with conviction: Your parachute should be repacked every 6 months, preferably by a qualified professional to ensure best operation and to give you peace of mind. When removing the parachute from the harness take the opportunity to complete Look; Reach; Pull; Throw. a practice deployment. Check that you can reach your handle easily and that the parachute can exit the harness smoothly, free of any resistance, Certification requires an effort of less than 7kgs. Look at the handle, grab it and pull out the retaining pins with sufficient force. Before repacking the parachute should have a thorough visual check of the cloth, lines and bridles. Do not use a Pull out the deployment bag. You need to adapt the way you pull your parachute depending on the design of your parachute with any sign of visible damage. The parachute must be completely dry and free of dirt, dust or any other harness’s deployment system. e.g. under seat positioning often requires an action to the outside so that the parachute contaminates. extracts sideways from the pocket, pulling the handle upwards will not allow the parachute to release. Know your Packing Procedure equipment and adapt your technique accordingly. - Page 7 Now neatly organise panels 1 and 12, maintain Ensure that the lines are free of twists and tangles - start at tension so that all folds are neat. Panels 1-12 the bridle and work towards the parachute keeping the ‘apex’ should be organised to one side. lines central and the lines either side separated. Double check that none of the lines are twisted around the ‘apex’ Panels 1 - 14 for the Angel SQ 220 lines or each other Now sort the panels into order. The Angel SQ has 12* panels...
- Page 8 Now repeat the above process, this time in the opposite direction. Panels 1 -12 should be folded neatly on top of each other to the left hand side with Now fold the right hand side underneath using ‘S’ folds to the the lines grouped neatly and free of twists as before. width of the deployment bag. Panels 1 - 14 for the Angel SQ 220 ‘S’ fold the left hand side, this time on top of the existing folds to the width of the deployment bag. The parachute should look as shown with the corner vent of panel 12* in the middle and on top. The corner vent of panel 1 should be in the middle underneath. At this stage, again double check the lines are free of twists and run cleanly either side of the apex lines all the way to the bridle.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE If you used a packing line, now completely remove it from the loops. Your Angel SQ is relatively maintenance-free, however there are several practices that need to be adhered to: Failure to do so will most certainly result in a deployment malfunction. • Keep your parachute free from exposure to UV, moisture, dirt, dust, chemicals or any other contaminates. • Always store all of your flying equipment in a cool dry room and protect it from direct heat such as radiators or sunlight. • Moisture, heat and humidity are the worst elements for damaging your parachute. • Your Angel SQ should be re-packed, preferably by a qualified packer every 6 months. The more often the reserve is repacked the better the chances of it opening quickly. -
Page 10: Ozone Quality Guarantee
Angel 29 Angel 37 At Ozone we take the quality of our products very seriously. All products are manufactured to the highest standards in our own facility and go through a series of stringent quality control procedures before delivery. Size Ozone guarantees all of its products against manufacturing defects or faults for the normal lifetime of the product and will repair or replace any defective product free of charge. Damage caused by tree landings or salt water... - Page 12 1258 Route de Grasse Le Bar sur Loup 06620 France...
