Summary of Contents for TEFAL CY505E40

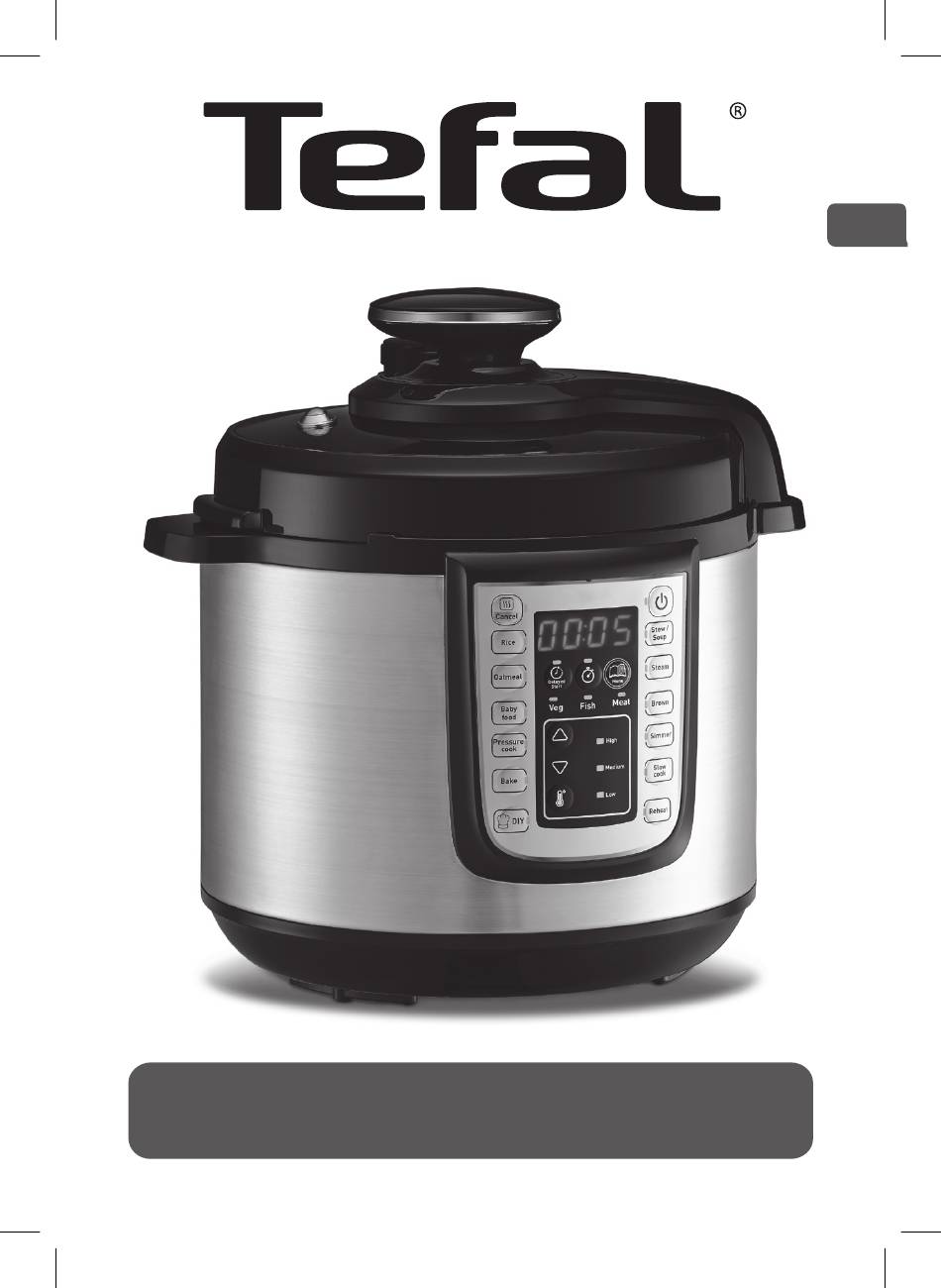

- Page 1 Electric Pressure Cooker www.tefal.com...
- Page 2 The user manuals are being updated and refined based on consumer response/feedback for the United Kingdom and Ireland. To access the latest version of this user manual, please visit www.tefal.co.uk and search for CY505E40 product code. SAFETY INSTRUCTIONS Take the time to read all the following instructions carefully.
- Page 3 in order to avoid a hazard. Do not replace the power cord supplied with other cords. • This appliance is intended for domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for: - staff kitchen areas in shops, offices and other working environments;...
- Page 4 the pressure limit valve are clean (see section Cleaning and maintenance). • Do not place any foreign objects in the pressure relief system. Do not replace the valve. • When you open the lid, always hold it by the lid handle. Position your arms in alignment with the side carrying handles.
- Page 5 • When cooking food with a thick texture (chick peas, rhubarb, compotes, etc.), shake the appliance slightly before opening it to ensure that the food or cooking juices do not spurt out. • Do not use the appliance to fry food in oil. Only browning is allowed. •...
- Page 6 The user manuals are being updated and refined based on consumer response/feedback for the United Kingdom and Ireland. To access the latest version of this user manual, please visit www.tefal.co.uk and search for CY505E40 product code.
- Page 11 DESCRIPTION Safety valve Sealing gasket Pressure limit valve Steam basket Lid handle Trivet D Cooking pot (removable) M Condensation collector Heating element N Measuring cup Carrying handle O Rice ladle G Control panel Power cord H Base CONTROL PANEL Keep warm Start / Stop function key Cancel function key Rice function key...
- Page 12 BEFORE FIRST USE Remove packaging • Take your appliance out of its packaging. Please keep your warranty card and remember to read the operating instructions before using the appliance for the first time. • Place your appliance on a flat surface. Remove all packaging materials from the inside of the appliance: plastic bags, accessories (trivet, rice ladle, measuring cup &...
- Page 13 Fit the pressure limit valve • Position the pressure limit valve and ensure that it is on. Please note that the valve does not click into place and that it will remain somewhat loose. Check that the pressure limit valve is down before you start pressure cooking (please see appliance description). FUNCTIONS ILLUSTRATION 1.
- Page 14 TIME SET TEMPERATURE (°C) LID POSITION (min) PROGRAMS MENU • Browning 1-60 100-160 • • Reheat 1-60 not applicable • 1-35 not applicable • fish 1-35 not applicable • Simmer meat/ • 5-35 not applicable bean • high 5-40 not applicable Pressure •...
- Page 15 COOKING PROGRAM INSTRUCTIONS Rice, Oatmeal (Porridge), Baby Food, Baking, Slow cooking, Reheat functions • Press the corresponding key of the desired function, the screen displays the default cooking time. • Then press and set the desired time by pressing keys. •...
- Page 16 Pressure cooking function • Press the Pressure cook key, the pressure level is indicated by a light on the control panel (High, Medium or Low) and on the display by «HI-P», «P», or «LO-P». • You can change the pressure level by pressing keys.
- Page 17 Delayed start setting • When choosing a function, before the appliance has started cooking, you can press set a delayed time. By pressing keys, you can adjust the time, in intervals of 10 minutes. • The delayed time setting range (2-24 hours) contains the cooking time; when you press the Delayed start/timer function key, it indicates «02:00», press the key to increase and the...
- Page 18 valve). • Don’t use the pressure cooking without a minimum amount of water of 10cl. • For cooking with pressure, the starting of the cooking is indicated by a single beep sound. The operational pressure is achieved after a double beep sound. Safety features Your pressure cooker contains several safety features: Safety When Opening:...
- Page 19 • Remove the condensation collector and clean it thoroughly under water. Place it back in its original position - fig. 35. • Rinse the sealing gasket. Dry it off thoroughly before placing it back. • To clean the float valve, remove the lid - fig. 36 then remove the valve gently from the lid - fig. 37...
- Page 20 TROUBLESHOOTING Problem Possible reasons Solutions Unable to open because a.Wait for the pressure in the pot to release of pressure in the inner completely. pot. b. Press and hold the pressure release button. a. Be sure the pressure is totally released by leaving to completely cool down for 2 hours Pressure in the pot is minimum (not under water).
- Page 21 This product is repairable by TEFAL/T-FAL*, during and after the guarantee period. TEFAL/T-FAL endeavours to keep most of the stock of the spare parts available for the repair of your product for up to 5 to 7 years on average, from the last date of production.
- Page 22 The repair process may require a longer time if the product is not locally sold by TEFAL/T-FAL. If the product is not repairable in the new country, the international TEFAL/T-FAL guarantee is limited to a replacement by a similar or alternative product at similar cost, where possible.
- Page 23 TEFAL/T-FAL INTERNATIONAL GUARANTEE: COUNTRY LIST SMALL HOUSEHOLD APPLIANCES www.tefal.com GROUPE SEB ARGENTINA S.A. 2 años Billinghurst 1833 3° 0800-122-2732 ARGENTINA 2 years C1425DTK Capital Federal Buenos Aires ՓԲԸ <<ԳՐՈՒՊՊԱ ՍԵԲ>> 2 տարի ՀԱՅԱՍՏԱՆ 010 55-76-07 125171,ՄՈՍԿՎԱ, ԼԵՆԻՆԳՐԱԴՅԱՆ...
- Page 24 FINLAND 2 years Pakkalankuja 6 01510 Vantaa GROUPE SEB France FRANCE Continentale + 2 ans Service Consommateur Tefal Guadeloupe, Martinique, 09 74 50 47 74 2 years 112 Ch. Moulin Carron, TSA 92002 Réunion, St-Martin 69134 ECULLY Cedex GROUPE SEB DEUTSCHLAND GmbH...
- Page 25 22 96 39 30 NORWAY 2 years Lilleakerveien 6d, plan 5 0283, Oslo ع ُ مان سلطنة 24703471 1 year www.tefal-me.com OMAN Groupe SEB Polska Sp. z o.o. 801 300 420 2 lata POLSKA Gdański Business Center II D koszt jak za...
- Page 26 ESPAÑA 933 06 37 65 C/ Almogàvers, 119-123, Complejo SPAIN 2 years Ecourban 08018 Barcelona 2 år Tefal Sverige, Löfströms allé 5, 172 66 SVERIGE 08 629 25 00 SWEDEN 2 years Sundbyberg 2 ans GROUPE SEB SCHWEIZ GmbH SUISSE SCHWEIZ...
- Page 28 Réf. NC00145348/02...
