- Page 1 Waterloo Multilevel Groundwater Monitoring System Assembly Manual April 2, 2018...
-
Page 3: Table Of Contents
Waterloo Multilevel System Assembly Manual Table of Contents Waterloo Multilevel System Pre-installation Requirements 1.0 Introduction 2.0 Installation Components 3.0 Preparation 4.0 Assembling the System 5.0 Joint Connections 6.0 Port Connections 6.1 Attaching Open Tubes 6.2 Attaching Vibrating Wire Transducers (VWT) 6.3 Attaching a Pump (Bladder or Double Valve) 7.0 Testing Monitoring Equipment 8.0 Packer Activation... -
Page 5: Waterloo Multilevel System Pre-Installation Requirements
*Note: Boreholes must be stable, circular, smooth and straight for best packer seal. Using the layout of monitoring equipment at the proposed depth, Solinst can assist the client in determining the appropriate number of components to achieve your proposed monitoring scenario for the Waterloo Multilevel System. -
Page 6: Introduction

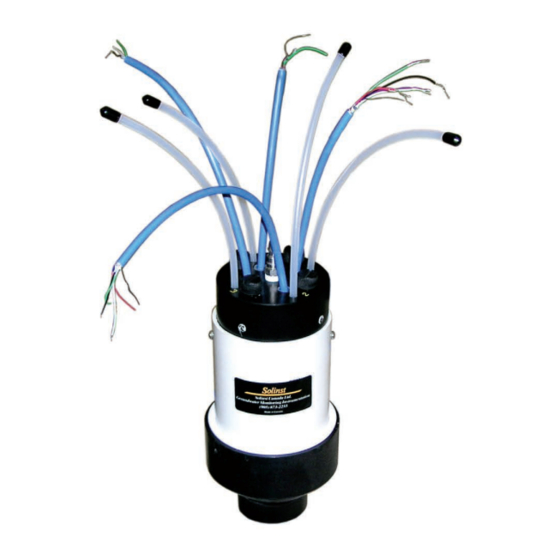

Waterloo Multilevel System Assembly Manual 1.0 Introduction The Waterloo Multilevel Monitoring System is comprised of modular units designed to allow discrete monitoring from several zones within a single borehole. A variety of portable and dedicated instrumentation allows users to retrieve samples, determine piezometric head, temperatures, and conduct basic hydraulic conductivity tests at each zone. -
Page 7: Installation Components
Waterloo Multilevel System Assembly Manual 2.0 Installation Components Individual components of the Waterloo Multilevel System include: PVC Casing, stainless steel Base Plug or PVC Base Plug, stainless steel Ports (single and dual stem), Permanent Packers, and Wellhead Manifolds. Components are shown in Figure 2-1. -
Page 8: Preparation
Contact Solinst immediately to resolve any issues before proceeding with the install. If a Solinst Trainer is requested, the training will be completed in its entirety, prior to starting the installation. See Appendix IV for the Terms and Conditions of training. -
Page 9: Assembling The System
Waterloo Multilevel System Assembly Manual 4.0 Assembling the System NOTE One person should be assigned as ‘Team Leader’ for the installation. This Team A System about 100 ft. (30 m) below water will most likely require water Leader is key in directing and ensuring that the components of the System are added to the casing string during installed in the correct sequence. - Page 10 Waterloo Multilevel System Assembly Manual Lock Adjustment Knob Figure 4-2 An Installation Clamp Over a Borehole Figure 4-3 A Base Plug, Casing, Port, and Packer Section Figure 4-4 Initial Section Being Installed Down-hole Page 6...
- Page 11 Waterloo Multilevel System Assembly Manual When adding each Port to the sequence you will connect the monitoring tubing and/or transducer or pump to be used at that Port. Each successive component will be threaded over the support cable, as well as the monitoring tubing and cabling as it is added.
-
Page 12: Joint Connections
Waterloo Multilevel System Assembly Manual 5.0 Joint Connections Connecting Casing, Packers, & Ports Figure 5-1 Packer and Casing Joint with Shear Tie Tools and accessories required: needle nose pliers, Oetiker pliers, hand spray water bottle, shear ties. NOTE Before threading component sections over the cables/tubing, feel inside the female joint end to ensure an o-ring is present. - Page 13 Waterloo Multilevel System Assembly Manual Figure 5-3 Coupled Joint Figure 5-4 Push Shear Tie Through the Window Figure 5-5 Pull Shear Tie Tight Figure 5-6 Cut Off the Excess Shear Tie Page 9...
-
Page 14: Port Connections
Waterloo Multilevel System Assembly Manual 6.0 Port Connections 6.1 Attaching Open Tubes Tools and accessories required: Oetiker pliers, tubing cutter, black electrical NOTE tape, rod/broom handle, sand paper. 1/2” x 3/8” or 5/8” x 1/2” tubing can be used. The 1/2” tubing is clamped directly onto the Port Stem with an Oetiker #14 clamp, while the 5/8”... -
Page 15: Attaching Vibrating Wire Transducers (Vwt)
Waterloo Multilevel System Assembly Manual Be sure there is a clean cut to the tubing end at the Port. Place one single ear Oetiker #14 clamp over the tubing and push the tubing end onto the stainless steel Port Stem. Using the Oetiker pliers, squeeze the clamp ‘shoulders’ together to securely attach the tubing to the stem. - Page 16 Waterloo Multilevel System Assembly Manual Each one of the VWT’s cables has been cut to the length requested in the original NOTE order. This length also includes an additional 10% contingency. The total cable length is labeled on the cable’s end. Match the serial number on the body of the VWT with the label at the end of the cable.
- Page 17 Waterloo Multilevel System Assembly Manual Figure 6-8 Figure 6-9 Page 13...
-
Page 18: Attaching A Pump (Bladder Or Double Valve)
Waterloo Multilevel System Assembly Manual 6.3 Attaching a Pump (Bladder or Double Valve) Tools and accessories required: tubing cutter, Oetiker pliers, Oetiker clamps, sand paper, 4" (10 cm) of 1/2" x 3/8" tubing, black electrical tape, rod/broom handle. Figure 6-11 Tools and Accessories Required Figure 6-10 Tools and Accessories Required There are two stems on each pump. - Page 19 Waterloo Multilevel System Assembly Manual Make a clean fresh cut to both tubing ends at the borehole. Place one small NOTE double ear Oetiker clamp over each pump stem. Wrap a small piece of sandpaper around the tubing for ‘traction’ and push the sample tubing over the shorter If you are using PTFE-lined tubing, be careful not to allow the PTFE pump stem.
-
Page 20: Testing Monitoring Equipment
Waterloo Multilevel System Assembly Manual Place another #14 Oetiker clamp over the open 1/2" x 3/8" tubing end. Push the pump intake into the tubing end. You will notice that the pump intake is recessed to receive the Oetiker clamp. Crimp the clamp to the pump. Figure 6-14 Pump Connected to Port Stem 7.0 Testing Monitoring Equipment Before Packer Expansion or Backfilling... -
Page 21: Packer Activation
Waterloo Multilevel System Assembly Manual 8.0 Packer Activation NOTE After the addition of water, the Adding Water Packers may take 1 - 3 days to expand. This primarily depends on the Head differential between the Tools and accessories required: water. water in the borehole and the water in the System. -
Page 22: Wellhead Manifold Completion
Waterloo Multilevel System Assembly Manual 9.0 Wellhead Manifold Completion NOTE Allow for at least 20” (50 cm) of 9.1 Standard Option clearance above the final PVC Casing ‘stick-up’ and the underside Tools and accessories required: tubing cutter, Phillips screwdriver, PVC pipe of your protective outer enclosure. -
Page 23: Multipurge Option
Waterloo Multilevel System Assembly Manual 9.2 Multipurge Option If pumps are used, follow the steps above, but before attaching the Wellhead, choose one drive line tube and hold it up against the 4” (100 mm) diameter white protective housing which is at its final elevation at the wellhead. Trim the red drive line tube at a point about 2”... -
Page 24: Wellhead Protection
Use a large well cover to allow plenty of room to access the wellhead. The following diagrams show some suggested completions for the 401 Multilevel System. These enclosures are not available at Solinst, however they are available from most drilling contractors. -
Page 25: Monitoring Options
Sampling Methods Depending on the depth to water at your site, and your Water levels and samples can be accurately obtained using sampling protocol, Solinst offers various sampling options. the following high quality Solinst instruments: Model 410 Peristaltic Pump Ideal for sample retrieval from shallow water levels less than 30 ft. - Page 26 Waterloo Multilevel System Assembly Manual - Appendix Page I...
- Page 27 Waterloo Multilevel System Assembly Manual - Appendix Page II...
- Page 28 Waterloo Multilevel System Assembly Manual - Appendix Sample Calculation Converting a VWT reading from the GK-404 to a depth to water In our example, let's assume the VWT is connected to a monitoring port that is located at a depth of 100 ft (30.48 m) below ground surface.
- Page 29 Waterloo Multilevel System Assembly Manual - Appendix Page IV...
