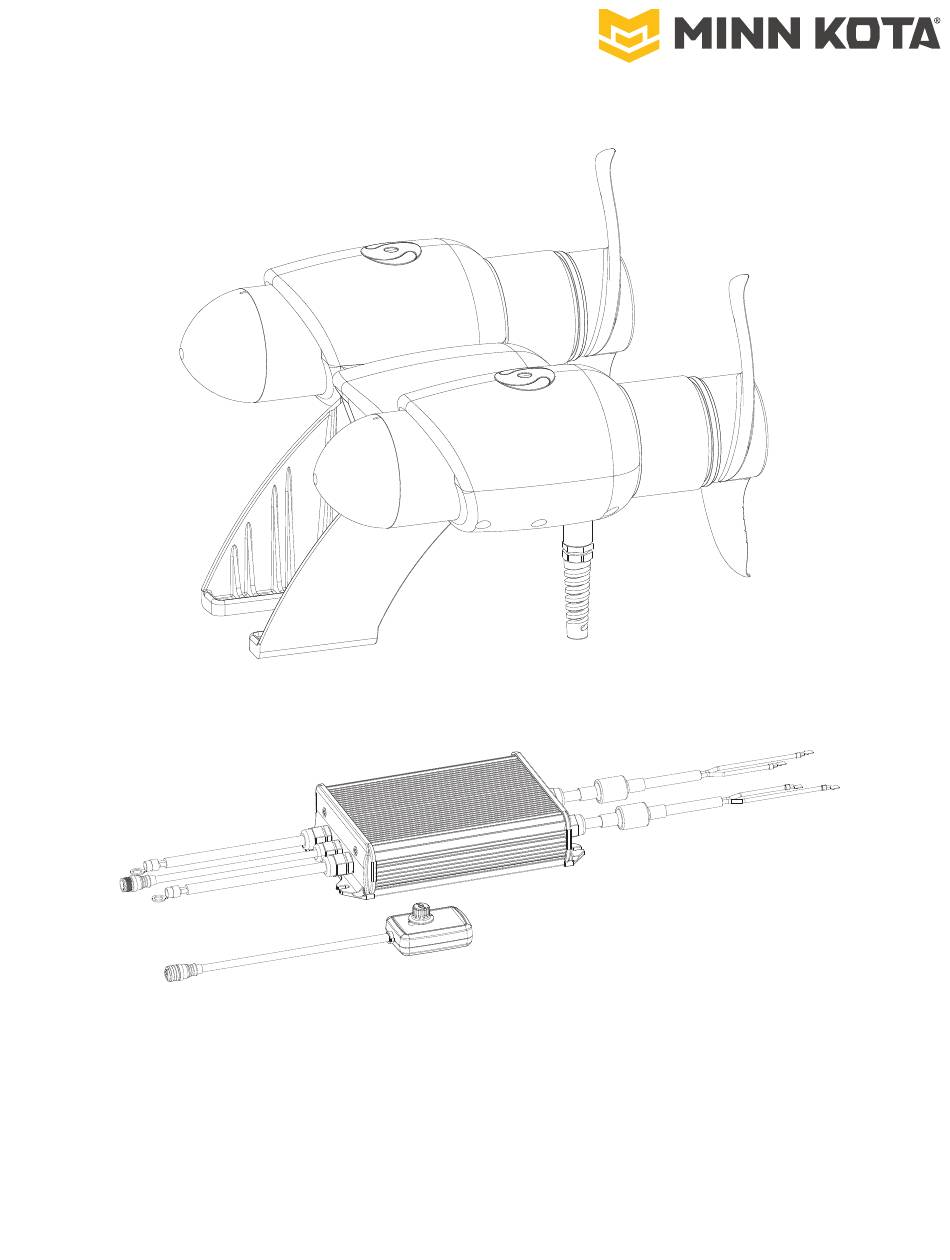

  • Page 1 ENGINE MOUNT TROLLING MOTOR Owner’s Manual...
  • Page 2 THANK YOU Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and rethought until it’s good enough to bear our name.

  • Page 3: Table Of Contents

    Table Of CONTeNTs SAFETY CONSIDERATIONS ....................4 WARRANTY ........................5 KNOW YOUR BOAT ......................6 FEATURES ........................7 INSTALLATION ......................... 8 Installing the Engine Mount ..................10 Installing the Control Module and Connecting it to the Motor ........14 Installing the Hand Controller and Connecting it to the Control Module ......19 BATTERY &...

  • Page 4: Safety Considerations

    WARNING You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat.

  • Page 5: Warranty

    Products purchased outside of the U.S. must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase.

  • Page 6: Know Your Boat

    KNOW YOUR bOaT Port Starboard Inboard Outboard Keel Port Starboard Gunwale Transom Stern Gunwale Stern Hull 6 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.

  • Page 7: Features

    feaTURes Cool Quiet Power Power Prop Composite Mount Sealed Electronics Remote Speed Control NOTICE: Specifications subject to change without notice. This diagram is for reference only and may differ from your actual motor. minnkotamotors.com | 7 ©2018 Johnson Outdoors Marine Electronics, Inc.

  • Page 8: Installation

    INsTallaTION INSTALLING THE ENGINE MOUNT Your Engine Mount comes with everything you’ll need to directly install it to the engine. To install the Engine Mount directly to the motor, please follow the instructions provided in this manual. Please review the parts list, mounting considerations and tools needed for installation prior to getting started.
  • Page 9 Check your boat for possible interference that may be caused by swimming platforms, trim and tilt mechanisms and other attachments that could interfere with the Minn kota motor once it is installed. Be sure to check for clearances with your engine both in its down position and in its up or tilt position.

  • Page 10: Installing The Engine Mount

    INSTALLING THE ENGINE MOUNT INSTALLATION Installing the Engine Mount ITEM(S) NEEDED #B x 1 WARNING Outboard Engine Remove the ignition key before beginning installation to prevent accidental starting of Outboard Engine during installation. Make sure that the key is removed from the ignition and review the Mounting Considerations to determine Engine Mount an acceptable mounting location on the Anti-...
  • Page 11 INSTALLING THE ENGINE MOUNT ITEM(S) NEEDED #20 x 2 Clamp or hold the Mounting Bracket in place and carefully mark the Anti-ventilation plate at each Mounting Hole on the Mounting Bracket. Remove the Clamps and set the Engine Mount Assembly aside. Use a Drill with a 3/8"...
  • Page 12 INSTALLING THE ENGINE MOUNT ITEM(S) NEEDED #2 x 6 #6 x 6 Route the Cable from the Engine Mount into the boat through a cable port or any other available opening. It is recommended to use any existing Cable Hooks if they are present.
  • Page 13 INSTALLING THE ENGINE MOUNT ITEM(S) NEEDED #4 x 6 #8 x 6 #12 x 6 Using six of the Fender Washers (Item #4), place one Washer on the end of each Screw and secure each with a Nylon Lock Nut (Item #8). Be sure to leave enough slack in the cable to raise and lower the Outboard Engine.

  • Page 14: Installing The Control Module And Connecting It To The Motor

    INSTALLING THE CONTROL MODULE AND CONNECTING IT TO THE MOTOR Installing the Control Module and Connecting it to the Motor The Control Module contains all of the electronics that are used Hand Control Control to control the speed of your Engine Mount. It is recommended Connection Wire Module to mount the Control Module on a flat surface in or near the...
  • Page 15 INSTALLING THE CONTROL MODULE AND CONNECTING IT TO THE MOTOR Once the Control Module is secured, the Power Leads from the Motors need to be connected. Each Motor has its own set of Power Leads that should be connected to separate Power Leads from the Control Module.
  • Page 16 INSTALLING THE CONTROL MODULE AND CONNECTING IT TO THE MOTOR ITEM(S) NEEDED #10 x 2 Take the first Positive (+) Lead Wire (violet) from the Positive (+) Lead Shrink Tube Wire from Control Control Module and slip a Heat Shrink (Item #10) Module (violet) Positive (+) over it.
  • Page 17 INSTALLING THE CONTROL MODULE AND CONNECTING IT TO THE MOTOR ITEM(S) NEEDED #10 x 2 Take the second Positive (+) Lead Wire (violet) from Positive (+) Lead Shrink Tube Wire from Control the Control Module and slip a Heat Shrink (Item Module (violet) #10) over it.
  • Page 18 INSTALLING THE CONTROL MODULE AND CONNECTING IT TO THE MOTOR Center all four Heat Shrinks and secure them by sealing the Heat Shrinks over the connections with a Set 2 heat gun. Route the wires in a way that they will not be a tripping hazard.

  • Page 19: Installing The Hand Controller And Connecting It To The Control Module

    INSTALLING THE HAND CONTROLLER AND CONNECTING IT TO THE CONTROL MODULE Installing the Hand Controller and Connecting it to the Control Module The Hand Controller comes equipped with approximately 18 feet WARNING of cable and is designed to be installed at or near the driver’s seat. Hook and Loop with self adhesive is supplied to mount the Hand Arcing (sparking) can cause batteries to explode.

  • Page 20: Battery & Wiring Installation

    CAUTION These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below.

  • Page 21: Selecting The Correct Batteries

    Additional Accessories Connected to Trolling Motor Batteries Significant damage to your Minn Kota motor, your boat electronics, and your boat can occur if incorrect connections are made between your trolling motor batteries and other battery systems. Minn Kota recommends using an exclusive battery system for your trolling motor.

  • Page 22: Connecting The Batteries

    CONNECTING THE BATTERIES CONNECTING THE BATTERIES 12 Volt Systems Make sure that the motor is switched off (speed selector on “OFF” or “0”). Connect positive ( + ) red lead to positive ( + ) battery terminal. Connect negative ( – ) black lead to negative ( – ) battery terminal. WARNING For safety reasons do not switch the motor on until the propeller is in the water.

  • Page 23: Connecting The Batteries In Series

    CONNECTING THE BATTERIES IN SERIES CONNECTING THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR) 24 Volt Systems +24 Volts to trolling motor positive (or circuit breaker) To trolling motor negative Two 12 volt batteries are required. The batteries must be wired in series, only as directed in wiring diagram, to provide 24 volts.

  • Page 24: Wiring Diagram

    WIRING DIaGRam ENGINE MOUNT Motor Motor Hand Controller Violet M+ Gray M- Violet M+ Gray M- Violet M+ Violet M+ Gray M- Gray M- Control Module Black B- Red B+ Red B+ Black B- Battery 2 Battery 1 Battery 1 NOTICE: This is a multi-voltage diagram.

  • Page 25: Using And Adjusting The Motor

    UsING & aDJUsTING THe mOTOR MOTOR OPERATION Become familiar with the features of the motor to maximize the capabilities this product offers. Cool Quiet Control Power Module Sealed Electronics Digital Maximizer Hand Controller Composite Mount Speed Control Power Prop Engine Mount Composite Mount WARNING The Engine Mount discretely mounts on the Anti-ventilation Plate of your Outboard Engine or I/O unit, with no stowing or deploying...
  • Page 26 Cool Quiet Power Nothing runs cooler or more quietly than a Minn Kota. Our extra large windings and commutators dissipate heat, resulting in cooler operation, extended battery power, and longer motor life. And our unique bearing system reduces friction to cut fish-spooking noise. So quiet, they’ll never hear you coming.

  • Page 27: Proper Operation

    PROPER OPERATION PROPER OPERATION CAUTION Once installed, the Engine Mount should be fully submerged when being used. Continuous high speed operation with the unit submerged, Trim the Outboard Engine, to bring the Engine Mount and can and will result in heavy steering and could cause severe propeller out of the water, before engaging in high speed damage to the motor or propeller.

  • Page 28: Service & Maintenance

    seRVICe & maINTeNaNCe PROPELLER REPLACEMENT TOOLS AND RESOURCES REQUIRED • 1/2” Open End Wrench • Flat Blade Screwdriver INSTALLATION Disconnect the motor from all sources of power prior to changing the propeller. Drive Pin Armature Shaft Hold the propeller and loosen the Prop Nut with a pliers or a wrench.

  • Page 29: General Maintenance

    GENERAL MAINTENANCE GENERAL MAINTENANCE • After every use, the entire motor should be rinsed with freshwater, then wiped down with a cloth dampened with an aqueous based silicone spray. Do not spray water into the ventilation openings in the head of the motor. •...

  • Page 30: For Further Troubleshooting And Repair

    Authorized Service Centers Minn Kota has over 800 authorized service providers in the United States and Canada where you can purchase parts or get your products repaired. Please visit our Authorized Service Center page on our website to locate a service provider in your area.

  • Page 31: Compliance Statements

    Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council.
  • Page 32 FCC COMPLIANCE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: COMPLIANCE STATEMENTS This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by Johnson Outdoors Marine Electronics, Inc.

  • Page 33: Parts Diagram & Parts List

    ENGINE MOUNT 24 VOLT The parts diagram and parts list provides Minn Kota® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.
  • Page 34 PARTS DIAGRAM & PARTS LIST Engine Mount Parts List Assembly Part # Description Quantity 2994856 BAG ASSY, EM 2990239 HAND CONTROLLER ASSY, EM 2396234 MTR ASY 24V 4” 80” SW 1378132 PROP KIT PWR PRP 2990248 CTRL MOD ASY 24/36V, DUAL 2889460 SEAL &...
  • Page 35 PARTS DIAGRAM & PARTS LIST Item Part # Description Quantity ENCLOSURE, HAND CONTROL, EM ✖ DECAL-HAND CONTROL, EM ✖ CABLE/POT ASSY, EM ✖ DETENT, EM ✖ HOUSING-DETENT, EM ✖ KNOB, EM HAND CONTROL ASSY ✖ SCREW-#4-24 X 3/8 HI-LO SS ✖...
  • Page 36 Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the fastest charge that protect and extend battery life.
