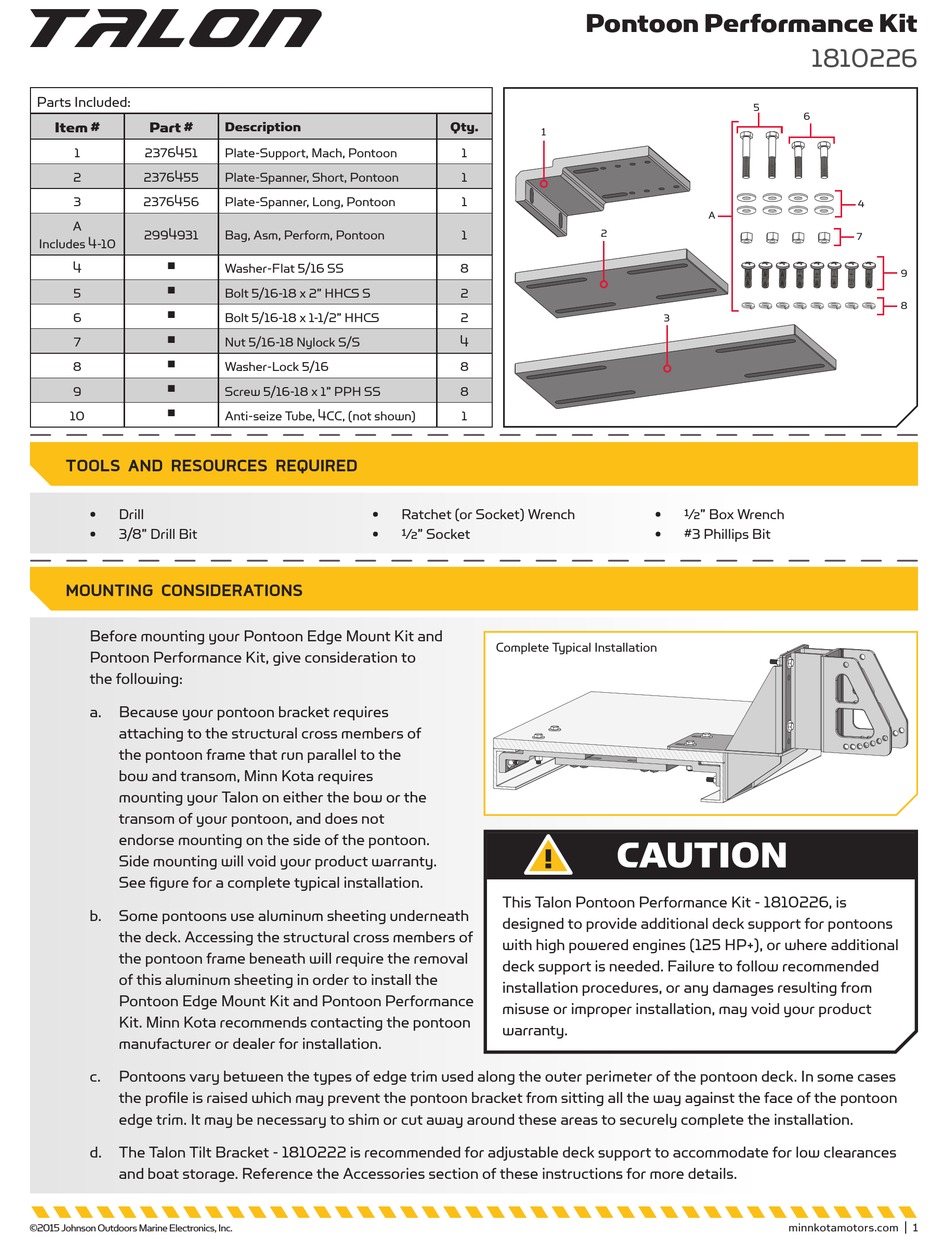

MINN KOTA Talon Pontoon Performance Kit Manual

Parts Included:
Item # Part #
1 2376451
2 2376455
3 2376456
A
2994931
Includes 4-10
n
4
n
5
n
6
n
7
n
8
n
9
n
10
TOOLS AND RESOURCES REQUIRED
• Drill
• 3/8" Drill Bit
MOUNTING CONSIDERATIONS
Before mounting your Pontoon Edge Mount Kit and
Pontoon Performance Kit, give consideration to
the following:
a. Because your pontoon bracket requires
attaching to the structural cross members of
the pontoon frame that run parallel to the
bow and transom, Minn Kota requires
mounting your Talon on either the bow or the
transom of your pontoon, and does not
endorse mounting on the side of the pontoon.
Side mounting will void your product warranty.
See fi gure for a complete typical installation.
b. Some pontoons use aluminum sheeting underneath
the deck. Accessing the structural cross members of
the pontoon frame beneath will require the removal
of this aluminum sheeting in order to install the
Pontoon Edge Mount Kit and Pontoon Performance
Kit. Minn Kota recommends contacting the pontoon
manufacturer or dealer for installation.
c. Pontoons vary between the types of edge trim used along the outer perimeter of the pontoon deck. In some cases
the profi le is raised which may prevent the pontoon bracket from sitting all the way against the face of the pontoon
edge trim. It may be necessary to shim or cut away around these areas to securely complete the installation.
d. The Talon Tilt Bracket - 1810222 is recommended for adjustable deck support to accommodate for low clearances
and boat storage. Reference the Accessories section of these instructions for more details.
©2015 Johnson Outdoors Marine Electronics, Inc.
Description
Plate-Support, Mach, Pontoon
Plate-Spanner, Short, Pontoon
Plate-Spanner, Long, Pontoon
Bag, Asm, Perform, Pontoon
Washer-Flat 5/16 SS
Bolt 5/16-18 x 2" HHCS S
Bolt 5/16-18 x 1-1/2" HHCS
Nut 5/16-18 Nylock S/S
Washer-Lock 5/16
Screw 5/16-18 x 1" PPH SS
Anti-seize Tube, 4CC, (not shown)
• Ratchet (or Socket) Wrench
• ½" Socket
Pontoon Performance Kit
Qty.
1
1
1
1
1 2
8
2
2
4
8
8
1
Complete Typical Installation
This Talon Pontoon Performance Kit - 1810226, is
designed to provide additional deck support for pontoons
with high powered engines (125 HP+), or where additional
deck support is needed. Failure to follow recommended
installation procedures, or any damages resulting from
misuse or improper installation, may void your product
warranty.
1810226
5
6
A
3
• ½" Box Wrench
• #3 Phillips Bit
UTION
minnkotamotors.com | 1
4
7
9
8
