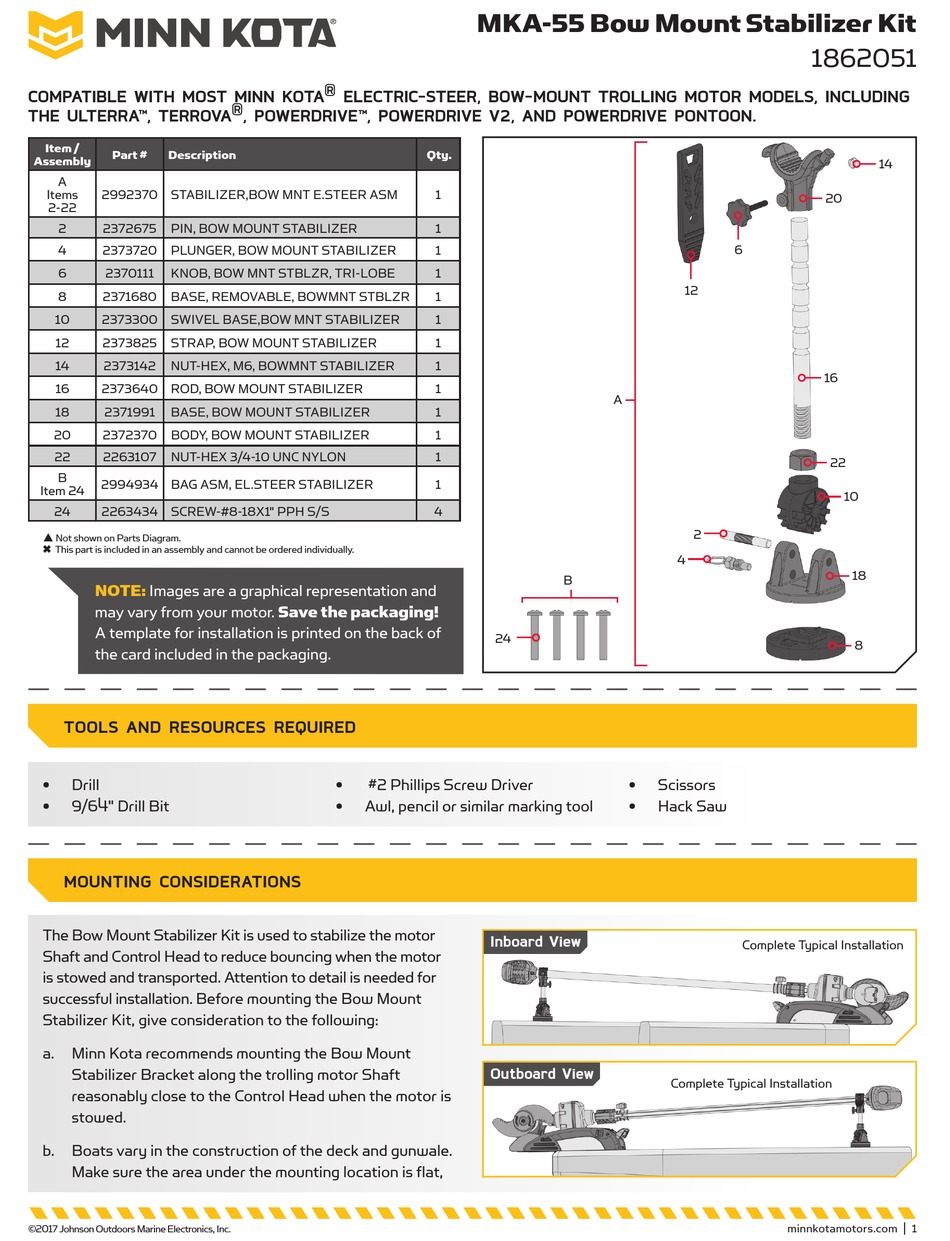

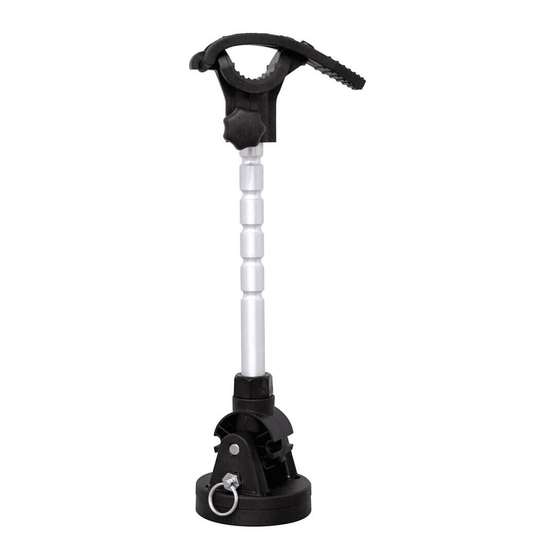

COMPATIBLE WITH MOST MINN KOTA ® ELECTRIC-STEER, BOW-MOUNT TROLLING MOTOR MODELS, INCLUDING
THE ULTERRA™, TERROVA ® , POWERDRIVE™, POWERDRIVE V2, AND POWERDRIVE PONTOON.
Item /
Part #
Description
Assembly
A
Items
2992370 STABILIZER,BOW MNT E.STEER ASM
2-22
2
2372675 PIN, BOW MOUNT STABILIZER
4
2373720 PLUNGER, BOW MOUNT STABILIZER
6
2370111
KNOB, BOW MNT STBLZR, TRI-LOBE
8
2371680 BASE, REMOVABLE, BOWMNT STBLZR
10
2373300 SWIVEL BASE,BOW MNT STABILIZER
12
2373825 STRAP, BOW MOUNT STABILIZER
14
2373142 NUT-HEX, M6, BOWMNT STABILIZER
16
2373640 ROD, BOW MOUNT STABILIZER
18
2371991
BASE, BOW MOUNT STABILIZER
20
2372370 BODY, BOW MOUNT STABILIZER
22
2263107 NUT-HEX 3/4-10 UNC NYLON
B
2994934 BAG ASM, EL.STEER STABILIZER
Item 24
24
2263434 SCREW-#8-18X1" PPH S/S
p Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
NOTE:
Images are a graphical representation and
may vary from your motor. Save the packaging!
A template for installation is printed on the back of
the card included in the packaging.
TOOLS AND RESOURCES REQUIRED
•
Drill
•
9/64" Drill Bit
MOUNTING CONSIDERATIONS
The Bow Mount Stabilizer Kit is used to stabilize the motor
Shaft and Control Head to reduce bouncing when the motor
is stowed and transported. Attention to detail is needed for
successful installation. Before mounting the Bow Mount
Stabilizer Kit, give consideration to the following:
a. Minn Kota recommends mounting the Bow Mount
Stabilizer Bracket along the trolling motor Shaft
reasonably close to the Control Head when the motor is
stowed.
b. Boats vary in the construction of the deck and gunwale.
Make sure the area under the mounting location is flat,
©2017 Johnson Outdoors Marine Electronics, Inc.
MKA-55 Bow Mount Stabilizer Kit
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
4
24
•
#2 Phillips Screw Driver
•
Awl, pencil or similar marking tool
Inboard View
Outboard View
6
12
A
2
4
B
•
Scissors
•
Hack Saw
Complete Typical Installation
Complete Typical Installation
1862051
14
20
16
22
10
18
8
minnkotamotors.com | 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MINN KOTA MKA-55
Summary of Contents for MINN KOTA MKA-55
- Page 1 MKA-55 Bow Mount Stabilizer Kit 1862051 COMPATIBLE WITH MOST MINN KOTA ® ELECTRIC-STEER, BOW-MOUNT TROLLING MOTOR MODELS, INCLUDING THE ULTERRA™, TERROVA ® , POWERDRIVE™, POWERDRIVE V2, AND POWERDRIVE PONTOON. Item / Part # Description Qty. Assembly Items 2992370 STABILIZER,BOW MNT E.STEER ASM...
-
Page 2: Installation
clear to drill holes and install screws. It may be necessary to shim or modify the deck or gunwale under the mounting location to create a flat area for the base to be mounted. c. The base of the bracket includes a Plunger that is used to adjust the Swivel Base of the bracket. The Swivel Base can be locked into 7 positions by pulling out the Plunger and rotating it up to 180 degrees at 30 degree increments. - Page 3 ITEM(S) NEEDED #24 x 4 Detach the Removable Base from the rest of Swivel Base the bracket by sliding it apart from the Non- Plunger removable Base. If the installation will include Inboard Non- the Removable Base, align it with the holes that removable Marking Base...
- Page 4 For warranty information please visit minnkotamotors.com WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc.
- Page 5 Ensemble de stabilisateur sur proue MKA-55 1862051 COMPATIBLE AVEC LA PLUPART DES MODÈLES DE MOTEUR DE PÊCHE À LA TRAÎNE SUR PROUE À COMMANDE ÉLECTRIQUE MINN KOTA ® , Y COMPRIS ULTERRA™, TERROVA ® , POWERDRIVE™, POWERDRIVE V2 ET POWERDRIVE PONTOON. Article/ Nº...
- Page 6 b. La construction du pont et du plat-bord varie selon le bateau. Vérifiez que la zone sous l’emplacement de montage est dégagée et plate pour percer des trous et installer des vis. Il pourrait être nécessaire de caler ou modifier le pont ou le plat- bord sous l’emplacement de montage afin de créer une zone plate pour fixer la base.
- Page 7 ARTICLE(S) REQUIS #24 x 4 Détachez la base amovible du reste du support Base en le glissant de la base non amovible. Si Pivotante Piston l’installation comprend la base amovible, Plongeur En-bord Base non alignez-la aux trous percés. Si elle n’est pas amovible Marque utilisée, mettez-la de côté...
- Page 8 AVERTISSEMENT : ce produit contient des produits chimiques reconnus par l’État de la Californie comme causant le cancer, des anomalies congénitales ou d’autres effets nocifs sur la reproduction. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc.
-
Page 9: Mounting Considerations
MKA-55 Bow Mount Stabilizer Kit 1862051 COMPATIBLE WITH MOST MINN KOTA ® ELECTRIC-STEER, BOW-MOUNT TROLLING MOTOR MODELS, INCLUDING THE ULTERRA™, TERROVA ® , POWERDRIVE™, POWERDRIVE V2, AND POWERDRIVE PONTOON. Item / Part # Description Qty. Assembly Items 2992370 STABILIZER,BOW MNT E.STEER ASM... - Page 10 gunwale under the mounting location to create a flat area for the base to be mounted. c. The base of the bracket includes a Plunger that is used to adjust the Swivel Base of the bracket. The Swivel Base can be locked into 7 positions by pulling out the Plunger and rotating it up to 180 degrees at 30 degree increments.
- Page 11 ITEM(S) NEEDED #24 x 4 Detach the Removable Base from the rest of Swivel Base the bracket by sliding it apart from the Non- Plunger removable Base. If the installation will include Inboard Non- the Removable Base, align it with the holes removable Marking Base...
- Page 12 For warranty information please visit minnkotamotors.com WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Minn Kota Consumer & Technical Service Minn Kota Consumer & Technical Service Minn Kota Consumer & Technical Service...
- Page 13 Ensemble de stabilisateur sur proue MKA-55 1862051 COMPATIBLE AVEC LA PLUPART DES MODÈLES DE MOTEUR DE PÊCHE À LA TRAÎNE SUR PROUE À COMMANDE ÉLECTRIQUE MINN KOTA ® , Y COMPRIS ULTERRA™, TERROVA ® , POWERDRIVE™, POWERDRIVE V2 ET POWERDRIVE PONTOON. Article/ Nº...
- Page 14 b. La construction du pont et du plat-bord varie selon le bateau. Vérifiez que la zone sous l’emplacement de montage est dégagée et plate pour percer des trous et installer des vis. Il pourrait être nécessaire de caler ou modifier le pont ou le plat-bord sous l’emplacement de montage afin de créer une zone plate pour fixer la base.
- Page 15 ARTICLE(S) REQUIS #24 x 4 Détachez la base amovible du reste du Base support en le glissant de la base non amovible. Pivotante Piston Si l’installation comprend la base amovible, Plongeur En-bord Base non alignez-la aux trous percés. Si elle n’est pas amovible Marque utilisée, mettez-la de côté...
- Page 16 AVERTISSEMENT : ce produit contient des produits chimiques reconnus par l’État de la Californie comme causant le cancer, des anomalies congénitales ou d’autres effets nocifs sur la reproduction. Minn Kota Consumer & Technical Service Minn Kota Consumer & Technical Service Minn Kota Consumer &...
