Showline SL eSTRIP 10 RGBW User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SL eSTRIP 10 RGBW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL eSTRIP 10 RGBW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Showline SL eSTRIP 10 RGBW

Summary of Contents for Showline SL eSTRIP 10 RGBW

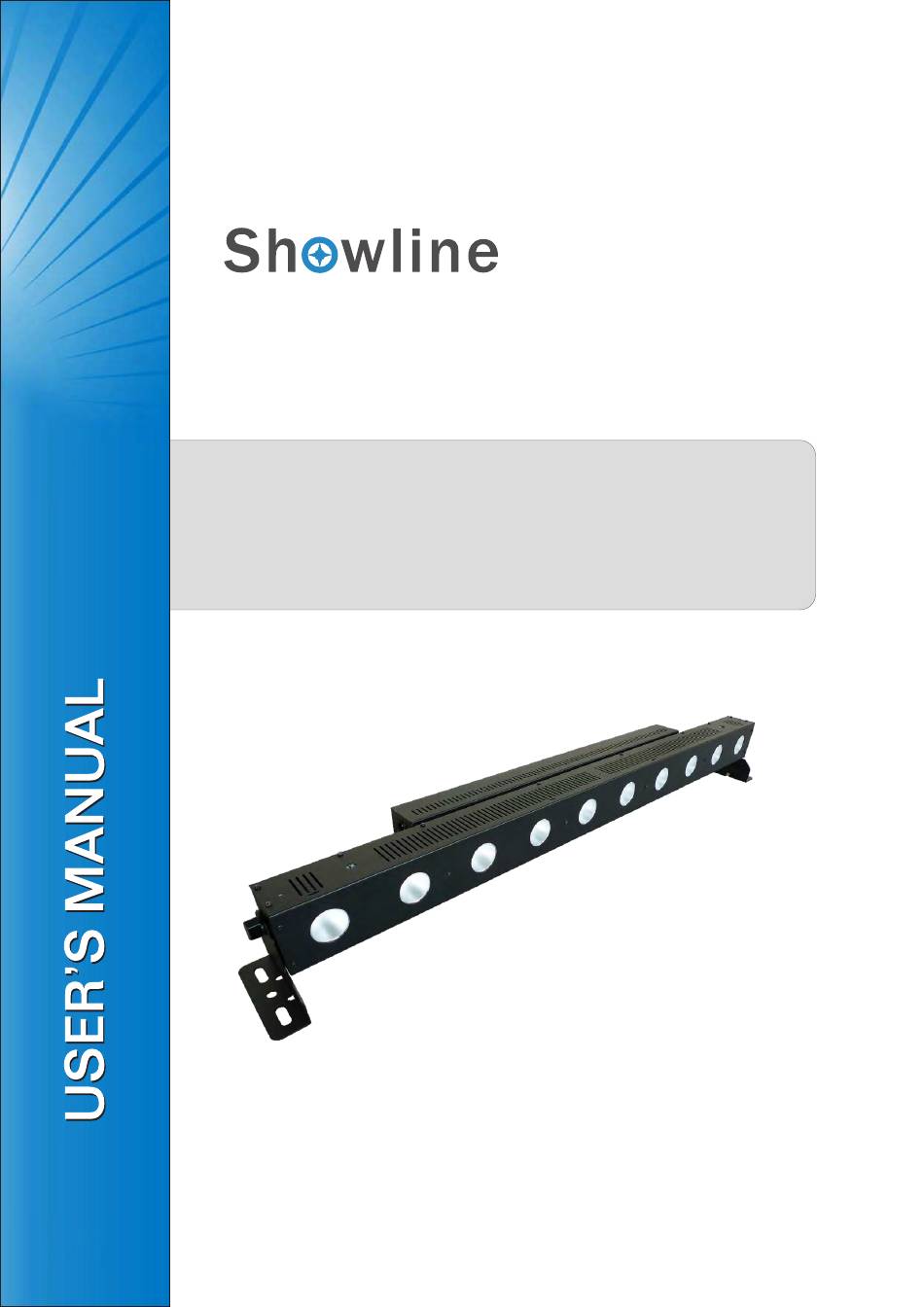

  • Page 1 SL eSTRIP 10 RGBW...
  • Page 2 Document Number: SL eSTRIP 10 RGBW LED Luminaires User Manual Version as of : 26th May 2014 SL eSTRIP 10 RGBW User’s Manual 2014 Vari-Lite.

  • Page 3: Warnings And Notices

    SL eSTRIP 10 RGBW IMPORTANT INFORMATION Warnings and Notices When using electrical equipment, basic safety precautions should always be followed including the following: a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. b. Do not mount near gas or electric heaters. c. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.

  • Page 4: General Information

    SL eSTRIP 10 RGBW GENERAL INFORMATION Thanks for your purchasing Showline SL eSTRIP 10 RGBW lighting equipment, the SL eSTRIP 10 RGBW is compatible of both DMX & RDM and with 10 channel LED intensity adjustable. Programs can be updated via RDM interface.

  • Page 5: Accessories Included

    SL eSTRIP 10 RGBW Accessories(Included): 1. The unit power cable (1pcs) 2. Wing screw(2pcs) + Grommet(2pcs) + Washer(2pcs) 3. Mounting Assemble(2pcs) MAIN FEATURES 01 pixel, 02 pixel, 05 pixel,10 pixel DMX Channels selection Standard DMX 5-pin In/Out 10 built-in programs subject to Speed and Dimmer...

  • Page 6: System Connection

    Maximum amount of this units that may be connected is 11pcs(AC120V) or 20pcs(230V). One universe DMX can drive up to 32 pcs of SL eSTRIP 10 RGBW, please add DMX booster if SL eSTRIP 10 RGBW are connected together in line over 32 pcs or data cable over 100M. The connections may be illuminated as following.

  • Page 7: Layout Overview

    SL eSTRIP 10 RGBW Layout Overview Rear Panel Overview 1 10 11 2 3 4 5 1. LCD Display This multi-function display will detail all DMX Address, Chase , Program, Speed activity that pertains to the current operation mode of the unit.

  • Page 8: Operation Modes

    OPERATION MODES The “SL eSTRIP 10 RGBW” has three different operation modes. It can be used as a 01 pixel, 02 pixel, 5 pixel, 10 pixel channel DMX dimmer. Please follow illustrations below to operate the unit in your desired mode.
  • Page 9 SL eSTRIP 10 RGBW SL eSTRIP 10 RGBW DMX Mapping (RGBW 16 Bit Mode) SL eSTRIP 10 RGBW DMX Mapping (RGBW 8 Bit Mode) OPERATION MODES...

  • Page 10: Chase Mode

    SL eSTRIP 10 RGBW 1. Setting DMX Address Press the “MODE’ button to select and activate “DMX” menu. In this menu, you can set the DMX address, DMX Bit, DMX Fade DMX Addr and DMX Channel. Press the “MENU” button to select and enter...

  • Page 11: Manual Mode

    SL eSTRIP 10 RGBW 2. Chase Speed Menu: Chase Press “MENU’ button to select and activate “Chase Speed” Speed:01 MODE DOWN MENU menu. In this menu, you can adjust the program chase speed. Use the "UP " and "DOWN" buttons to adjust the chase speed from 01 thru 99.
  • Page 12 SL eSTRIP 10 RGBW SL eSTRIP 10 RGBW RDM Parameter IDs The following tables outline and describe all the RDM parameters IDs associated with SL eSTRIP 10 RGBW. Table 1: SL eSTRIP 10 RGBW RDM Parameter IDs SL eSTRIP 10 RGBW...
  • Page 13 SL eSTRIP 10 RGBW Table 1: SL eSTRIP 10 RGBW RDM Parameter IDs RDM PARAMETER IDS...
  • Page 14 SL eSTRIP 10 RGBW Table 2: SL eSTRIP 10 RGBW Manufacturer Status IDs Manufacturer Defined Status IDs Manufacturer Specific messages are in the range of 0x8000 —0xFFDF. Each Manufacturer-specific Status ID shall have a unique meaning, which shall be consistent across all products having a given Manufacturer ID.

  • Page 15: Program Update

    Programs of this device can be updated via the RDM interface with proper tool named SC-NODE and RDM Program Tool. Connect the SL eSTRIP 10 RGBW to the output terminal of the SC-NODE then connect the SC-NODE to the PC, run the TCP/IP setting, see the following figures for details.

  • Page 16: Technical Specifications

    SL eSTRIP 10 RGBW TECHNICAL SPECIFICATIONS LED Source 10 pcs 4in1 RGBW (RGB+Cool White) Beam Angle 22 Degrees Power Thru/Input AC110~240V, 50/60Hz Control Protocols DMX512 (1990) / DMX512A (RDM) / On-Board Menu IP Rating IP20 Power Consumption 150W Max. Weight Dimension 1040(L)*130(W)*140(H)mm.
  • Page 17 Sh wline Vari-Lite Asia Unit C , 14/F, Roxy Industrial Centre,NO. 41-49, Kwai Cheong Road,Kwai Chung, N.T.Hong Kong Tel: +(852)2796 9786 Fax: +(852)2798 6545 Vari-Lite 2014 All rights reserved. The Company reserves the right to make any variation in design or construction to the equipment described.
