Sh wline
SC-DMXrec
SMPTE
MEMORY
PLAY
PAUSE
STOP
BLACK OUT
USB
1
2
3
4
5
6
7
8
MIDI
SC-DMXrec
DMX Recorder
DMX OUT
SD CARD
DMX IN
User's Manual
24-004-3215-00
Rev2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-DMXrec and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Showline SC-DMXrec

Summary of Contents for Showline SC-DMXrec

  • Page 1 Sh wline SC-DMXrec SMPTE MEMORY PLAY PAUSE STOP BLACK OUT MIDI SC-DMXrec DMX Recorder DMX OUT SD CARD DMX IN User’s Manual 24-004-3215-00 Rev2.0...

  • Page 2: Safety Precaution

    Report any damage and save all packing materials if any parts damaged during transport. Do not attempt to use this apparatus if it is damaged. This shipment packing includes: Philips Showline SC-DMXrec, 1pcs User's Instruction, 1pcs USB Cable, 1pcs Transformer, 1pcs Safety Note Please read all instruction prior to assembling, mounting, and operating your DMX Recorder Pro Rack.

  • Page 3: General Instructions

    General Instructions Descriptions Thanks for you purchasing Philips Showline DMX Recorder SC-DMXrec. The present content pretends to make a description of the technical features, Specifications and operation, etc. Features 128x160 Characters color LCD display Up to 8 memories with individual Master setting allows users to assign Scenes, Chases or Shows.

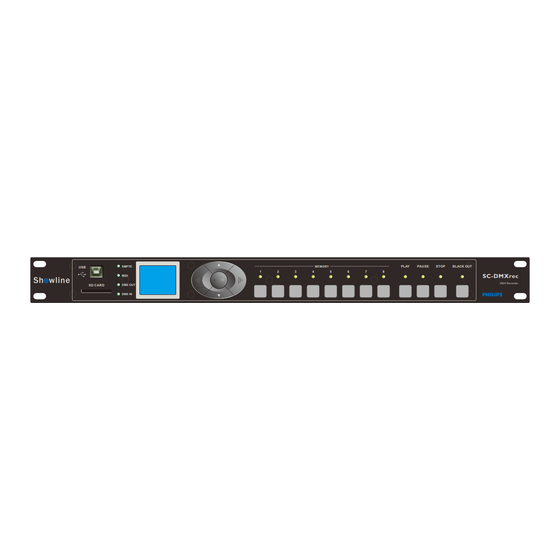

  • Page 4: Front View

    Front View SMPTE MEMORY PLAY PAUSE STOP BLACK OUT SC-DMXrec MIDI DMX Recorder DMX OUT SD CARD DMX IN 2 3 4 1. USB Port Connects to PC for communications and program updating. 2. SD Card Port Use to insert SD card for data transmission.

  • Page 5: Back View

    Overview Back View DMX IN DMX OUT MIDI IN SMPTE IN MEMORY POWER DC Input( 35 C 9-12VDC, 500mA Min, 4.5W Max. Serial Number: 1=Ground 2=Data- 3=Data+ 1=Ground 4,5=NC 2=Data- 3=Data+ PLAY PAUSE STOP BLACK OUT 4,5=NC 1. 2. 3=NC; 4=V+; 5=Signal RoHS IP20 Made in China...

  • Page 6: Operation Guide

    Operation Guide 1) Select Work Mode There are 5 work modes available for DMX Recorder SC-DMXrec: 1) Manual control 2) Real-time trigger 3) Time code trigger 4) External DMX trigger 5) DMX monitor The user may press the OK Button and keep hold it for 2 seconds, the Work Mode option menus appears, now use Up/Down button to select the work mode, and press OK to confirm.
  • Page 7 2.2.5) Modify the recorded Chase 2.2.5.1) To select "Edit Chase" and access it, use Up/Down to select the Chase you want to modify, press OK to confirm. 2.2.5.2) Now the user may use function button to modify ChaseName, the Scene of the specified Step, HoldTime and FadeTime.

  • Page 8: Dmx Values

    2.3.3.6) Delete Weekly/Delete Dately Use this function may delete the specified event. 2.3.4) Select "Finish & Return" back to the previous level. 2.3.5) SMPTE/MTC Event This event is triggered by the external assigned time. 2.3.5.1) The user may add Trigger Event, edit event and delete event in this mode. 2.3.5.2) Select Add SMPTE/EMC 2.3.5.3) The user may set EventName, Frame Rate, trigger time, trigger memory, playback state, output state, etc.

  • Page 9: Program Updating

    2.5.6) Select "Scene" may set FadeTime for it.When select Chase or Show, may set the Speed Scale of playback. 2.5.7) Select "Finish & Return" to return. 2.6) Modify Clock This function is used to modify the inner calendar clock. 2.7) Set password This function is used to modify user password.
