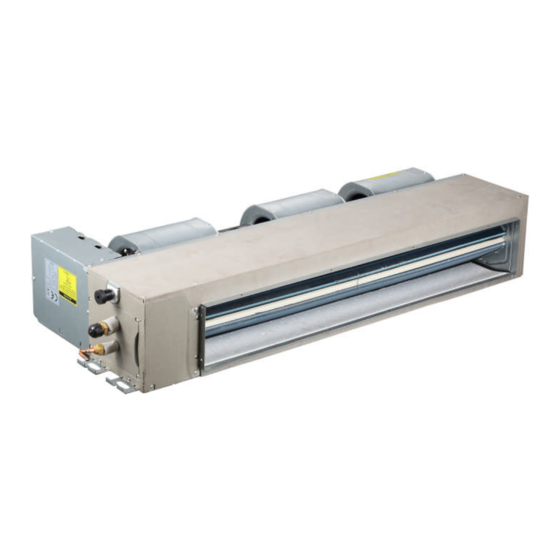

- Page 1 Technical Service Manual TVR LX Systems Low Static Pressure Duct Units with DC Fan Motor 220-240V/50-60Hz/1ph August 2015...
-
Page 2: Table Of Contents
Low Static Pressure Duct with DC Fan Motor Low Static Pressure Duct with DC Fan Motor 1. Features................2 2. Specifications ..............3 3. Dimensions ..............7 4.Service Spaces ..............8 5.Piping Diagrams ...............9 6. Wiring Diagrams ............10 7.Fan Performance ............11 8.Capacity Tables...............13 9.Electrical Characteristics ..........19 10.Sound Levels ..............20 11.Accessories..............25... -
Page 3: Features
Low Static Pressure Duct with DC Fan Motor 1. Features 1.1 Adopting DC fan motor Efficiency can be up to 90%. Contrast with the AC fan motor, the power consumption of DC fan motor can reduce up to 30%. DC and AC motors power contrast Power Inpu t：W DC moto r AC moto r... -
Page 4: Specifications
Low Static Pressure Duct with DC Fan Motor 2. Specifications Model 4TVL0006DF000AA 4TVL0007DF000AA Power supply V-Hz-Ph 220-240V~50/60Hz Capacity Btu/h 6100 7500 Cooling Input Rated current 0.31 0.31 Capacity Btu/h 7500 8900 Heating Input Rated current 0.31 0.31 Model WZDK100-38GS WZDK100-38GS Type DC motor DC motor... - Page 5 Low Static Pressure Duct with DC Fan Motor Model 4TVL0009DF000AA 4TVL0012DF000AA Power supply V-Hz-Ph 220-240V~50/60Hz Capacity Btu/h 9600 12300 Cooling Input Rated current 0.31 0.36 Capacity Btu/h 10900 13600 Heating Input Rated current 0.31 0.36 Model WZDK100-38GS WZDK100-38GS Type DC motor DC motor Indoor fan Brand...
- Page 6 Low Static Pressure Duct with DC Fan Motor Model 4TVL0015DF000AA 4TVL0018DF000AA Power supply V-Hz-Ph 220-240V~50/60Hz Capacity Btu/h 15400 19100 Cooling Input Rated current Capacity Btu/h 17100 21500 Heating Input Rated current Model WZDK100-38GS-2 WZDK100-38GS-2 Type DC motor DC motor Indoor fan Brand Pansonic/Nidec/Welling Pansonic/Nidec/Welling...
- Page 7 Low Static Pressure Duct with DC Fan Motor Model 4TVL0024DF000AA Power supply V-Hz-Ph 220-240V~50/60Hz Capacity Btu/h 24200 Cooling Input Rated current Capacity Btu/h 27300 Heating Input Rated current Model WZDK100-38GS-1 Type DC motor Indoor fan Brand Pansonic/Nidec/Welling motor Input Speed (H/M/L) r/min 1070/980/840 Number of rows...
-
Page 8: Dimensions
Low Static Pressure Duct with DC Fan Motor 3. Dimensions... -
Page 9: Service Spaces
Low Static Pressure Duct with DC Fan Motor 4.Service Spaces Ensure the needed spaces for installation and maintenance. The ceiling is horizontal, and its structure can endure the weight of the indoor unit. The outlet and the inlet are not impeded, and the influence of external air is the least. ... -
Page 10: Piping Diagrams
Low Static Pressure Duct with DC Fan Motor 5.Piping Diagrams motor flare nut gas side heat exchanger flare nut liquid side... -
Page 11: Wiring Diagrams
Low Static Pressure Duct with DC Fan Motor 6. Wiring Diagrams... -
Page 12: Fan Performance
Low Static Pressure Duct with DC Fan Motor 7.Fan Performance How to Read the Diagram For static pressure dial code, please see the following Table: ENC2 Low static pressure Medium static pressure High static pressure Model 18~71 0~15Pa 10~25Pa 15~30Pa 1.The noise is higher when ENC2 is than that when it is , and the noise is higher when ENC2 is... - Page 13 Low Static Pressure Duct with DC Fan Motor 1000 1200 1400 1600 Model:71 m3/h If the external static pressure is too great (due to long extension of duct, for example), the air flow volume may drop too low at each air outlet. ...
-
Page 14: Capacity Tables
Low Static Pressure Duct with DC Fan Motor 8.Capacity Tables 8.1 Cooling TC: total capacity SC: sensible capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature (℃WB/DB) Outdoor Indoor 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Unit size temperature (kW) (℃DB) 10.0 12.0... - Page 15 Low Static Pressure Duct with DC Fan Motor 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0 10.0 12.0 14.0...
- Page 16 Low Static Pressure Duct with DC Fan Motor 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0...
- Page 17 Low Static Pressure Duct with DC Fan Motor 8.2 Heating TC: total capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature (℃ DB) Outdoor temperature 16.00 18.00 20.00 21.00 22.00 24.00 Indoor Unit size (℃) (kW) -19.8 1.23 1.23 1.23 1.23 1.23 1.23...
- Page 18 Low Static Pressure Duct with DC Fan Motor -7.60 -7.00 2.43 2.43 2.43 2.43 2.43 2.43 -5.60 -5.00 2.53 2.53 2.53 2.53 2.53 2.53 -3.70 -3.00 2.66 2.66 2.66 2.66 2.66 2.66 -0.70 0.00 2.85 2.85 2.85 2.85 2.85 2.69 2.20 3.00 3.01...
- Page 19 Low Static Pressure Duct with DC Fan Motor -14.7 4.10 4.10 4.10 4.10 4.10 4.10 -13.00 -12.60 4.22 4.22 4.22 4.22 4.22 4.22 -11.00 -10.50 4.41 4.41 4.41 4.41 4.41 4.41 -10.00 -9.50 4.60 4.60 4.60 4.60 4.60 4.60 -9.10 -8.50 4.73 4.73...
-
Page 20: Electrical Characteristics
Low Static Pressure Duct with DC Fan Motor 9.Electrical Characteristics Indoor Unit Power Supply Model Voltage Min. Max. 4TVL0006DF000AA 50/60 220-240 0.375 0.016 4TVL0007DF000AA 50/60 220-240 0.375 0.016 4TVL0009DF000AA 50/60 220-240 0.375 0.016 4TVL0012DF000AA 50/60 220-240 0.375 0.021 4TVL0015DF000AA 50/60 220-240 0.032 4TVL0018DF000AA... -
Page 21: Sound Levels
Low Static Pressure Duct with DC Fan Motor 10.Sound Levels 10.1 Test condition Low Static Pressure Duct Note: 1. During actual operation, these values are normally somewhat higher as a result of ambient conditions. 2. Semi-anechoic chamber conversion value, measured at a point which is 1.4m under the unit. 10.2 Test value Sound Levels value dB(A) Model... - Page 22 Low Static Pressure Duct with DC Fan Motor 4TVL0006DF000AA 4TVL0007DF000AA...
- Page 23 Low Static Pressure Duct with DC Fan Motor 4TVL0009DF000AA 4TVL0012DF000AA...
- Page 24 Low Static Pressure Duct with DC Fan Motor 4TVL0015DF000AA 4TVL0018DF000AA...
- Page 25 Low Static Pressure Duct with DC Fan Motor 4TVL0024DF000AA...
-
Page 26: Accessories
Low Static Pressure Duct with DC Fan Motor 11.Accessories 11.1 Standard accessories Name of accessories Quantity Outline Usage Installation manual (This manual) Remote control the Remote controller air-conditioner Frame 7# alkaline battery For remote controller Remote controller manual Pipe insulation material Heat insulation Water outlet joint For drainage...
