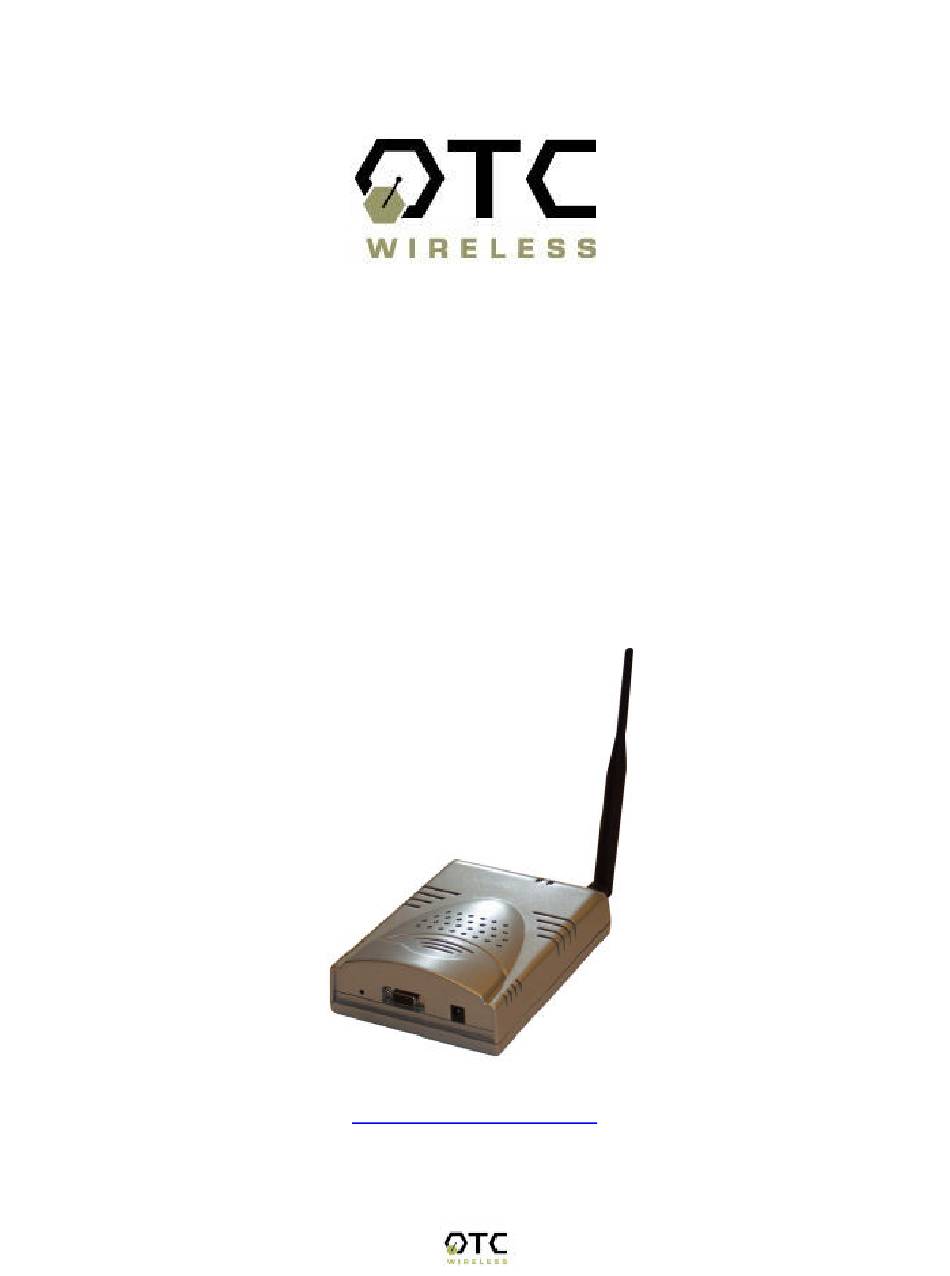

- Page 1 WiJET.Video Wireless Projector and Monitor Adapter With Motion Video Technical Manual * * * * * D R A F T * * * * * www.otcwireless.com...
- Page 2 The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners. Copyright 2004 OTC Wireless, Inc. All rights reserved. Rev 1.01 Draft WiJET.Video Technical Manual Page ii of 29...
-
Page 3: Table Of Contents
TROUBLESHOOTING ................21 Unable to Connect or Establish a Session with Unit ..........21 The Presentation screen appears frozen during a presentation ........ 21 The WiJET.Video Session is Interrupted During a Presentation ....... 22 Radio Interference ....................22 Technical Support ....................23 Appendix A: LIMITED WARRANTY................ -
Page 4: Chapter 1: Introduction
IT costs. In summary, the WiJET.Video is a tool that will change h ow people come to view conferences and meeting rooms. Instead of a static meeting place, the conference rooms can now become a dynamic meeting place where new thoughts and ideas are exchanged and created. -
Page 5: Key Features
Up to1024x768 resolution for optimized speed/resolution tradeoff Automatic re-connect of sessions/ wireless link User customizable WiJET.Video-ready banner image to allow the display of information such as meeting agenda, conference logo, etc. before and between presentations Web browser based administration application for upgrading firmware and setting encryption... -
Page 6: Chapter 2: Wijet.video System Installation
2.2.4 Status LED’s There are two status LED’s on the WiJET.Video. From the front of the unit, the LED on the left is the power indicator while the LED on the right is the link status and video out indicator. -
Page 7: User Software Installation
RAM. 2.3.1.1 Installation for the WiJET.Video Presentation Session Manager (PSM) This step is optional and can be skipped for those who simply want to run WiJET.Video Presentation Session Manager (PSM) without the administration capability. PSM can be executed on CD-ROM without being “installed” to the local hard drive. To install the WiJET.Video software on your local hard drive, insert the Installation CD in your... - Page 8 (2) IEEE 802.11g or Wi-Fi enabled computer (either built-in or add-on NIC). See Chapter 4: for detailed information on how to configure the WiJET.Video using Web-served application. WiJET.Video Technical Manual Page 5 of 29...
-
Page 9: Chapter 3: Using Wijet.video
Wireless Presentation Meeting unfolds: 1. Copies of the WiJET.Video installation CD are kept with the product in the meeting room. The meeting host, before the presentations start, identifies the meeting participants who do not yet have the Presentation Session Manger installed on their computers and hands them the installation CDs. -
Page 10: Starting The Wijet.video
RF activities detected on other channels (none). No other 802.11g/b channels detected in use other than the WiJET.Video at all. Your connection to the unit should be smooth and error free. WiJET.Video Technical Manual... -
Page 11: Configuring Computer To Control Wijet.video
In a noisy environment, channel information might get outdated quickly since the product does not monitor channels continuously. Once you have turned the WiJET.Video on and noted the above information, you can now configure your computer to connect to the unit. - Page 12 Figure 3.3 Radio Linking Message Once you have acknowledged the above message, the main PSM dialog displays as below, as well as start out a WiJET.Video tray icon. Figure 3.4 WiJET.Video PSM There are several action buttons in the PSM. The functions of these action buttons will be described in detail in the following sections.
-
Page 13: Configuring The Wireless Adapter To Connect With Wijet.video
1 – 11 for the US or 1 – 13 for Europe. WiJET.Video operates as an Access Point, or, AP. It therefore must be set an SSID. When the product starts up, its SSID will be displayed on the upper left corner of the monitor/projector. - Page 14 Properties button. A new window much like Figure 3.12 should appear. Figure 3.11 Wireless Network Connection Figure 3.12 Network Properties Click on the “Wireless Networks” tab and you should see a figure like Figure 3.13. WiJET.Video Technical Manual Page 11 of 29...
- Page 15 Figure 3.13 Wireless Networks tab. Here you will find the various networks that your wireless card has been able to detect. To allow for a connection to the WiJET.Video, you must click the “Advanced” button. A figure like Figure 3.14 should appear.
-
Page 16: Start Or Resume Your Presentation Session
If there is more than one network, you must use the “Move up” and “Move down” buttons to move the WiJET.Video you wish to have connected to the top. When you are done, press the “OK” button. At that time, you should be able to connect to the unit and your system tray should display an image much like Figure 3.16. -
Page 17: Wijet.video Is Occupied" Message
In case of failing to keep the use in session, WiJET.Video will return to the banner page and be available for a new session. Certain abnormal conditions that cause interruption of the link may be localized on the current presenter’s computer and/or its wireless card. -
Page 18: Chapter 4: Web-Served Administration Application
WiJET.Video Administration Manager. To use its Administration Manager, the users must have an IEEE 802.11g wireless network adapter and the WiJET.Video Utility installed on their PCs. The users can start the Administration Manager by going through START, Programs, WiJET.Video Utility, and then Administration. -
Page 19: Configuring The Wijet.video Using Administration Manager
Figure 4.2: WiJET.Video IP Address List Window Select the desired unit according to its assigned IP address and then click on OK button to open the web-browser to access the web-based utility program. 4.3 Configuring the WiJET.Video Using Administration Manager When you successfully reach the Web site, a logon window will be prompted as shown in Figure 4.3. -
Page 20: Wijet.video Firmware Version
Web page are explained below. Figure 4.4: Web-served Application Screen 4.3.1 WiJET.Video Firmware Version This is the current WiJET.Video firmware version. It is important to know which firmware version you have before calling or emailing technical support. WiJET.Video Technical Manual... -
Page 21: Configuration
PC wireless adapter security settings accordingly so that PSM can connect wirelessly to the unit. Authentication Type: When the “Open system” option is chosen, no encryption is applied to the exchanged packets between this Station radio and another radio. WiJET.Video Technical Manual Page 18 of 29... -
Page 22: Administration
(default) or manual operation mode. Automatic mode will make the unit automatically select an unused SSID AND a clearest channel when boots up. Under the Manual mode, the user can select SSID and channel for WiJET.Video to operate. 4.3.3 Administration When you click on the Administration hyperlink, you will see the following page as on Figure 4.6. -
Page 23: Firmware And Banner
.tar.gz. For Banner page file, you will want to get a file with the extension of .jpg. For the best picture on the WiJET.Video banner screen, the picture file should be of 800 x 600 resolution. The maximum .jpg size is 2 megabytes or 2048 bytes. -
Page 24: Chapter 5: Troubleshooting
6) With certain brands of PCMCIA 802.11g Wi-Fi cards, it might take a bit longer to link up with the WiJET.Video than with other brands of PCMCIA cards. The reason for this is that the drivers and features set of each brand might cause the link up time between the WiJET.Video and the... -
Page 25: The Wijet.video Session Is Interrupted During A Presentation
The default duration for a link-loss is 8 seconds. WiJET.Video will retry 3 periods of this duration. If no re-connection is established before the reconnection time running out, the product returns itself to the banner page. -
Page 26: Technical Support
5.5 Technical Support Visit http://www.otcwireless.com/. WiJET.Video Technical Manual Page 23 of 29... -
Page 27: Appendix A: Limited Warranty
Customer an equivalent product or part to replace the defective item. All products that are replaced will become the property of the seller. Replacement products may be new or reconditioned. WiJET.Video Technical Manual Page 24 of 29... -
Page 28: Appendix B: Regulatory Compliance
Changes or modifications not expressly approved by seller could void the user’s authority to operate the equipment. Warning: This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. WiJET.Video Technical Manual Page 25 of 29... -
Page 29: European Community (Ec) Directives Conformity And Restrictions
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment that is installed outdoors is subject to licensing. WiJET.Video Technical Manual Page 26 of 29...
