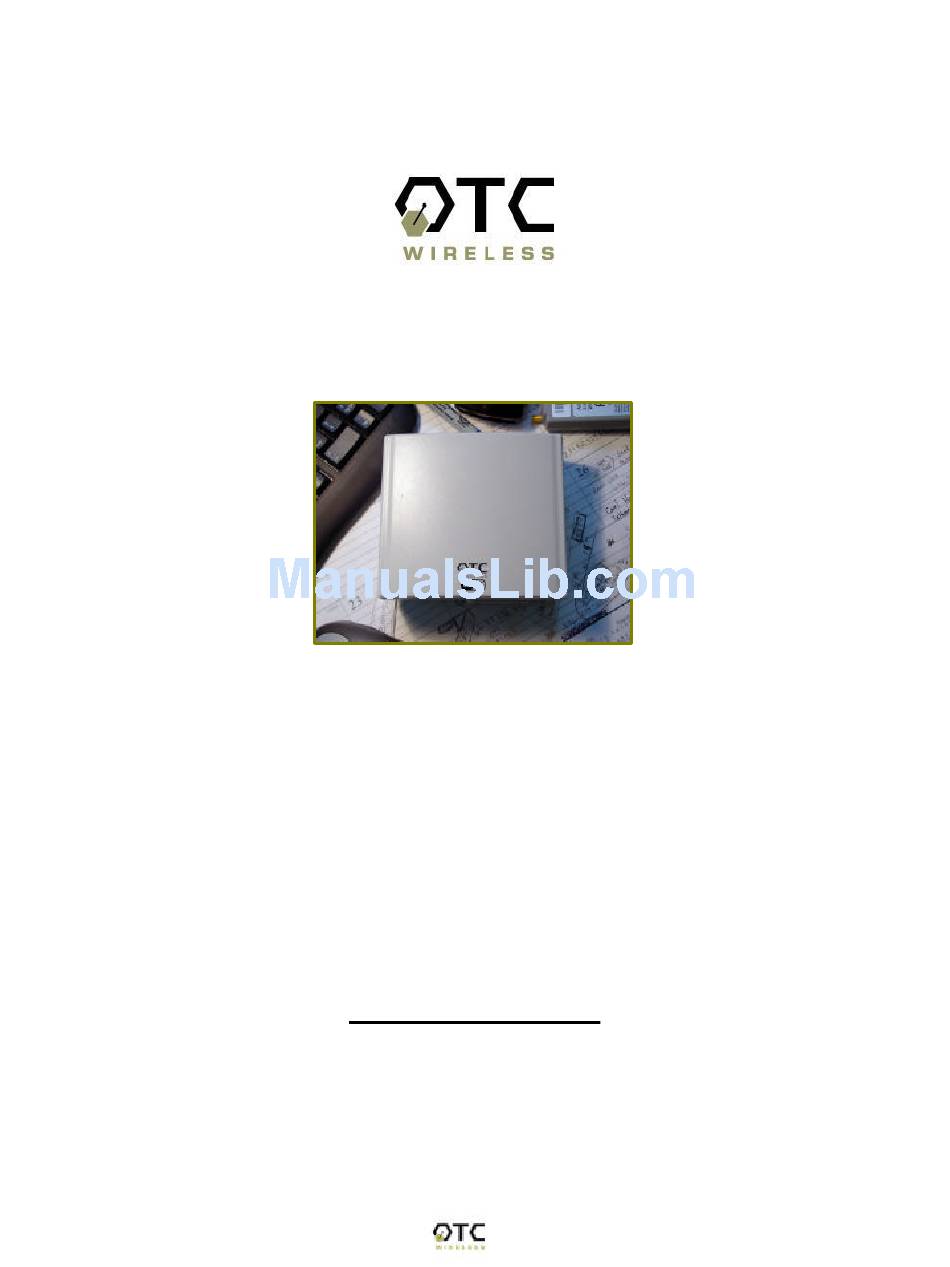

- Page 1 AVCW-G Wireless Ethernet Adapter Technical Manual www.otcwireless.com...
- Page 2 The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners. Copyright 2001-2003 OTC Wireless, Inc. All rights reserved. Rev 1.00 August 12, 2003...
-
Page 3: Table Of Contents
Table of Contents AVCW-G Technical Manual Table of Contents ......................iii Chapter 1 Introduction..................... 1 AVCW-G Radio ......................2 Specifications ........................2 Chapter 2: Hardware Installation................... 3 Safety Statements ......................3 Power ..........................3 Ethernet connection......................4 Status LEDs........................4 System Requirements for Web-based Utility program........... -
Page 4: Chapter 1 Introduction
AP installation using this Utility if a valid IP address is assigned to AVCW-G. In most cases, a pre-configured AVCW-G AP can be plugged into a RJ-45 receptacle on the wall of any network environment without running the Utility program. -
Page 5: Avcw-G Radio
AVCW-G Radio Key Features Plug & Play — o No driver on the host device is required for radio operation o Radio operation is independent of the operating system on computer or any connecting device (Windows 98/2000/ME/XP, MAC, Linux, Unix, embedded, etc.), as long as the device has a properly supported Ethernet port. -
Page 6: Chapter 2: Hardware Installation
Important: After the radio units are properly installed and positioned, use the provided coax-seal tapes to wind around and seal the connection between the radio and Ethernet cable and, for AVCW-G, the connection between the radio and the antenna. This prevents moisture from entering and damaging the radio. -
Page 7: Ethernet Connection
Wireless Ethernet Adapter is correct. If one cannot communicate, and the yellow LED is off, you may want to re-position the AVCW-G to a different location for better RF reception. You may also want to check if the unit is configured with the proper RF channel and security settings by using the Utility software. -
Page 8: System Requirements For Web-Based Utility Program
System Requirements for Web-based Utility program A Web-based Configuration Utility is a built-in program of the Wireless Adapter for changing the configuration settings of the Adapter. For using the AVCW-G Web-based Configuration Utility, your computer must meet the following requirements: (1) A Web browser must be installed on the computer. -
Page 9: Chapter 3 Web-Based Utility Software
With most browsers, there are six web pages accessible through six tab links. These web pages are hosted by a built-in web server in the AVCW-G radio. Details of each Web page will be discussed in the following sections. The web pages may look different;... -
Page 10: Basic Information
Alternatively, the user can change the setting of the internet browser such that the browser would retrieve new web pages instead of displaying the cached web pages. Basic Information The “Info” page (Figure 1) is the default home page for the built-in web server. You can click on the “Info”... - Page 11 Shows if WEP (the wireless encryption standard) is enabled or not. To enable/disable/change WEP settings, see “security” tab à WEP. 2. Bridge Information: This section displays basic information of the AVCW-G unit Bridge Name Name of the AVCW-G device Number of Bridged Clients Number of clients connected to the AVCW-G bridge.
-
Page 12: Wireless
Ubicom Firmware Version Shows the version info of the Ubicom firmware. 3. Available Access Points This field displays the available access points detected by the AVCW-G Bridge. Wireless On this page (Figure 3) you can configure the basic 802.11g access point settings. -
Page 13: Security
(Access Points) the AVCW-G is going to connect with. Channel The channel option is only available when the AVCW-G is in ad-hoc mode. In infrastructure mode, the AVCW-G would use the channel of the connected access point. If you experience interference (e.g. lost connections or slow data transfers) you may need to try different channels to see which is the best. - Page 14 Figure 6. Security and Encryption Settings Enabled WEP: This check box allows users to enable or disable WEP feature. While WEP is disabled, all the other fields on this “Encryption” page are disabled too. A set of four keys needs to be created in the default-key scheme.
-
Page 15: Advance
To activate the Bridging mode, the user needs to select WLAN card option allowing multiple clients connecting to an AVCW-G unit. If Ethernet client option is selected, the AVCW-G unit can connect to only a single client. 2. Advance Wireless... - Page 16 Figure 5. Advanced Wireless RTS threshold Transmitted wireless packets larger than this size will use the RTS/CTS protocol to (a) maintain performance in noisy wireless networks and (b) prevent hidden nodes from degrading performance. To minimize the...
-
Page 17: Admin
potential packet collision associated with hidden nodes in a wireless network, IEEE 802.11 standard has the option to complete a “Request to Send (RTS)” and “Clear to Send (CTS)” two-frame exchange prior to sending the real data. This reduces the throughput of the real data. Since the probability of packet collision increases with the size of the packets transmitted, an optimum trade-off between data-throughput and data- integrity may be reached by turning on the two-frame exchange only for... - Page 18 Select 'DHCP' to get the IP settings from a DHCP server on your network. Select 'Static' to use the IP settings specified on this page. Default IP address Type in the IP address of your Access Point. Allows the user to set a static IP address to the Wireless Adapter.
- Page 19 Figure 7. IP Settings...
-
Page 20: Help
3. Security User Name This is the user name that you must type when logging in to these web pages. Administrator Password This is the password that you must type when logging in to these web pages. You must enter the same password into both boxes, for confirmation. -
Page 21: Chapter 4 Troubleshooting
A minimum of 20% is recommended. If the “Signal Strength” is less than 20%, the distance between the AVCW-G and the targeted radio (an AP or another Station) may be too far. Decrease the distance to see if the radio link can be established. -
Page 22: Poor Link Quality
CAT-3 standard and has a straight-through connection, not a crossover. • Make sure that the AVCW-G is not connected to a hub with multiple computers/devices plugged in. • Make sure that the IP address of the host computer/device is properly set up for the network. -
Page 23: Tftp Timeouts
• Reseat the AVCW-G radio to a location where the interference is minimized; in general, increase the distance between the wireless devices and the device causing the radio interference. • Avoid using 2.4GHz cordless phone in the vicinity of the radio •... -
Page 24: Appendix A: Limited Warranty
Appendix A: Limited Warranty The seller warrants to the end user (“Customer”) that this product will be free from defects in workmanship and materials, under normal use and service, for one (1) year from the date of purchase from the seller or its authorized reseller. The seller’s sole obligation under this express warranty shall be, at the seller’s option and expense, to repair the defective product or part, or deliver to Customer an equivalent product or part to replace the defective item. -
Page 25: Appendix B: Regulatory Compliance
FCC Part 15 Declaration of Conformity (DoC) The following equipment: Product Name: Wireless Ethernet Adapter Model Number: AVCW-G WLAN is herewith confirmed to comply with the requirements of FCC Part 15 rules. The operation is subject to the following two conditions: 1. - Page 26 Compliance is indicated by the CE marking Hereby, OTC Wireless, Inc. declares that this AVCW-G is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. OTC Wireless, Inc. vakuuttaa täten että AVCW-G tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä...
- Page 27 S???? ? ? S ? ? ? ? ? ? ? ? S ? ? S ? ? ? G ? ? S 1999/5/? ? Con la presente OTC Wireless, Inc. dichiara che questo AVCW-G è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
