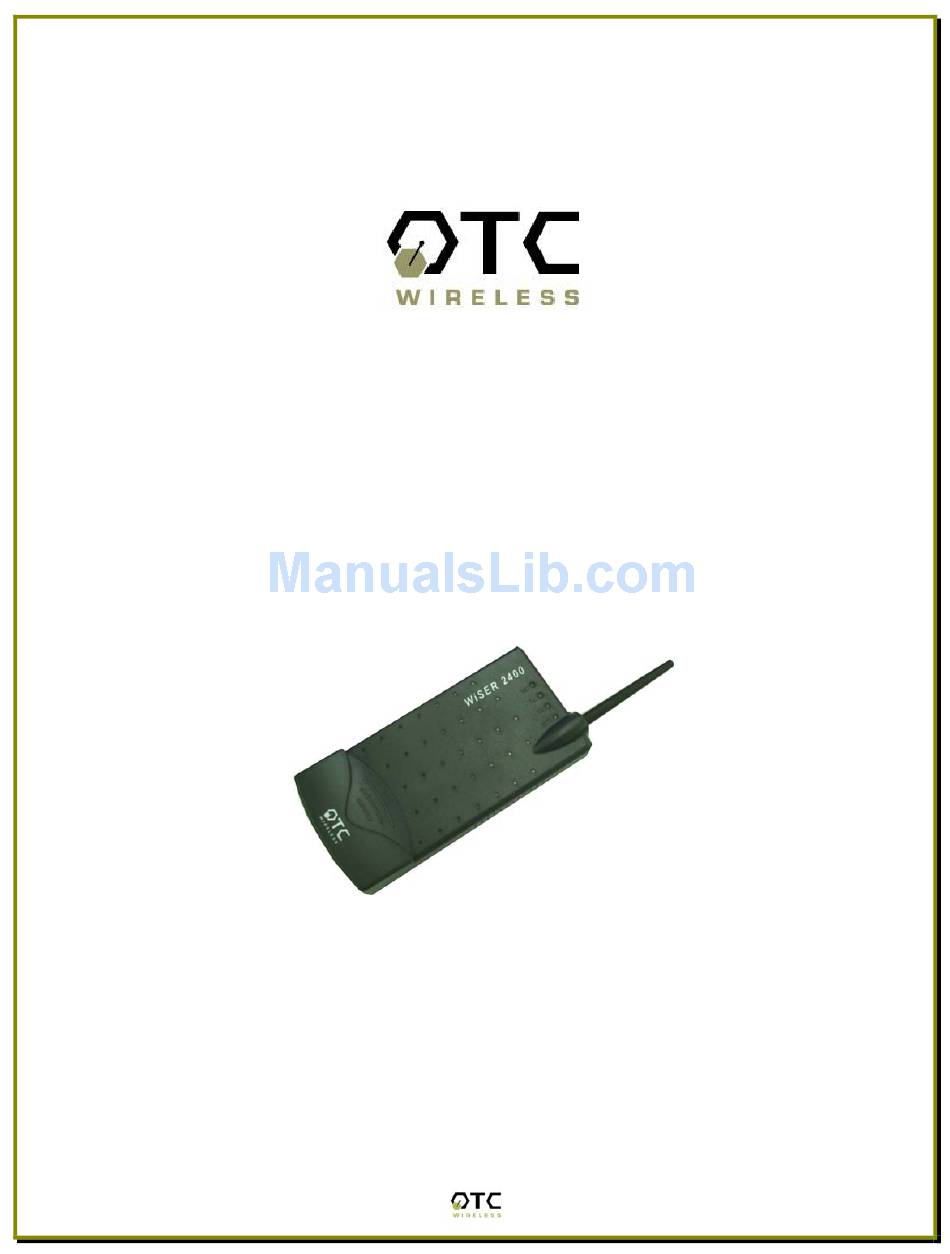

- Page 1 802.11b Wireless Serial Port Adapter WiSER2400.IP User Guide www.otcwireless.com...
- Page 2 The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners. Copyright 2001-2003 OTC Wireless, Inc. All rights reserved. Revision 1.08 May 14, 2003...
-
Page 3: Table Of Contents
TABLE OF CONTENT CHAPTER 1 - INTRODUCTION SER2400.IP W ADIO ...2 PECIFICATIONS CHAPTER 2 - INSTALLATION OF WISER2400.IP SER2400.IP H NSTALLATION OF Standard Hardware Items ...3 Power ...3 RS232 Connection...3 Status LED’s ...4 SER2400.IP S NSTALLATION OF System Requirements ...6 Installation...6... -
Page 4: Chapter 1 - Introduction
Chapter 1 - INTRODUCTION WiSER2400.IP is an 802.11b compliant, or WiFi, radio with an RS232 serial interface. The WiSER2400.IP radio takes serial data from the equipment or computing device connected via its RS232 port, converts the serial data into 802.11- compliant data packets, and transmits these packets with the RF modulation that is compliant with the specifications of the 802.11b physical layer. -
Page 5: Wiser2400.Ip Wifi Radio
WiSER2400.IP WiFi Radio Plug & Play operation— o No driver on the host device is required for radio operation o Radio operation is independent of the operating system on the host equipment or device (Windows 98/NT/2000/ME/XP, Linux, Unix, embedded, etc.), as long as an RS232 port is... -
Page 6: Chapter 2 - Installation Of Wiser2400.Ip
Connect the modular plug (which resembles an over-sized telephone plug) of the RS232 cable to the modular jack (which resembles an over-sized telephone jack) at the bottom panel of the WiSER2400 radio. Connect the DB-9 (9-pin, can be female or male depending on the equipment) connector of the RS232 cable to... -
Page 7: Status Led's
Status LED’s Power on the WiSER2400 Radio, the LED’s on the front panel should exhibit the following patterns: Color Light Blinking Pattern Indication Steady on GREEN Steady on Steady blink Flickering LINK YELLOW Steady on The WiSER2400.IP radio is configured as a client Station and cannot be changed. -
Page 9: Installation Of Wiser2400.Ip Software
To install the utility program, simply insert the CD-ROM provided. Copy the “wue101.exe” file to the desired location on your PC. Note that to use the WiSER2400.IP properly as intended, you must configure the WiSER2400.IP radio to the appropriate IP [Internet Protocol] configurations as your network. -
Page 10: Chapter 3 - Diagnostic And Configuration Utility
WiSER2400.IP radios. The WiSER2400.IP utility program is supported on Microsoft Windows® 95(OSR2), 98(SE), NT, Millennium, 2000, and XP. Figure 1 below is WiSER2400.IP utility main window. Warning: The utility program may not work simultaneously with another RS232 application program since both programs would compete for the control to the same RS232 serial (COM) port connecting the WiSER2400 radio. -
Page 11: Connection And Overall Status Panel
Figure 2. Connection and Overall Status Panel The pull-down menu allows users to select COM ports (RS232 serial port) so that the utility program knows where to connect to WiSER2400 radio unit. The pull- down menu becomes inactive and inaccessible when the connection between the WiSER2400 radio and the utility program is active. -
Page 12: Configuration Panel
Figure 3. Radio Status Panels (AP: left; Station: right) In general, the Radio Status Panel displays the firmware version, firmware release date, role, and communication channel used by the radio. The panel displays additional radio signal information such as the Port Status, Link Quality, and Signal strength. - Page 13 SSID. Network Type: this is the 802.11b mode the radio unit is running on. It can be either”Ad hoc” or “Infrastructure”. For WiSER2400.IP to connect with a normal AP, always select “Infrastructure” mode Please refer to IEEE 801.11 documentation for more information of the Network Type.
-
Page 14: Rs232 And Wlan Statistics Panel
RS232 and WLAN Statistics Panel The transmission statistics of the RS232 (COM port) and Wireless Local Area Network (WLAN) is shown in this panel. To retrieve the statistics, click Refresh button located at the bottom of the main window of the utility program. The following explains the statistics shown in the panel: 1. -
Page 15: Security Panel
Security Panel This panel shown in Figure 5 enables users to configure security options for the WiSER2400 radios. WiSER2400 supports Wired Equivalent Privacy (WEP) encryption both 64bits and 128bits.The Security panel contains two sub-panels, Encryption sub-panel and WEP Keys Creation sub-panel. - Page 16 There are two methods to generate WEP encryption keys. One is to use auto key generation through the Passphrase field, and the other method is to manually input a set of keys in the Manual Entry fields. To auto-generate WEP encryption keys, select the radio button next to the Passphrase label and then the users can enter up to any 64 characters in the Passphrase field.
- Page 17 The Manual Entry Key 1/2/3/4 fields accept hexadecimal inputs as the encryption keys. If 64 bits encryption is enabled, each key field allows the user to enter up to 10 hexadecimal characters. If 128 bits encryption is enabled, each of the key field allows up to 26 hexadecimal characters.
-
Page 18: Chapter 4 - Udp/Ip Implementation
Chapter 4 - UDP/IP Implementation This section describes how the radio firmware composes RS232 data into UDP packets and sends them out, as well as how it receives the UDP packets and performs necessary checks. If all checks are passed, it retrieves the RS232 data from the packets, and sends the data out to RS232 cable. -
Page 19: Incoming Udp/Ip Packet
b. UDP header: Source Port number = “UDP Port” in the “This Unit” portion in the configuration panel. Destination Port number = “UDP Port” in the “Dest. Unit” portion in the configuration panel. iii. UDP Length = UDP header length + data length. This data length would be =<... -
Page 20: Chapter 5 - Troubleshooting
A minimum of 20% is recommended. If the “Signal Strength” is less than 20%, the distance between the WiSER2400 and the targeted AP may be too far. Decrease the distance between the radio pair to see if the radio link can be improved. -
Page 21: Poor Link Quality
• Reseat the WiSER2400 radio to a location where the interference is minimized; in general, increasing the distance between the radio pair may cause radio interference. -
Page 22: Technical Support
Technical Support If problems are still not solved, please contact our Technical Support to obtain further assistance. Call: 1-800-770-6698 in USA Call: 011-510-490-8288 outside of USA E-mail:techsupport@otcwireless.com... -
Page 23: Appendix A: Limited Warranty
Appendix A: Limited Warranty WiSER2400 Hardware The seller warrants to the end user (“Customer”) that this hardware product will be free from defects in workmanship and materials, under normal use and service, for one (1) year from the date of purchase from the seller or its authorized reseller. -
Page 24: Appendix B: Regulatory Compliance
Connect the WLAN equipped laptop computer into an outlet on a circuit different from that of other electronics. Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by OTC Wireless could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - Page 25 European Community (EC) Directives Conformity and Restrictions This product is in conformity with the protection requirements of EC Council directives 89/336/EEC, 73/23/EEC, and 1999/5/EC on the approximation and harmonization of the laws of the Member States relating to electromagnetic compatibility, safety of electrical equipment designed for use within certain voltage limits and on radio equipment and telecommunications terminal equipment.
-
Page 26: Glossary
Glossary Access Point An internetworking device that seamlessly connects wired and wireless networks. Access Points combined with a distributed system support the creation of multiple radio cells that enable roaming throughout a facility. Ad Hoc Network A network composed solely of stations within mutual communication range of each other (no Access Point connected).
