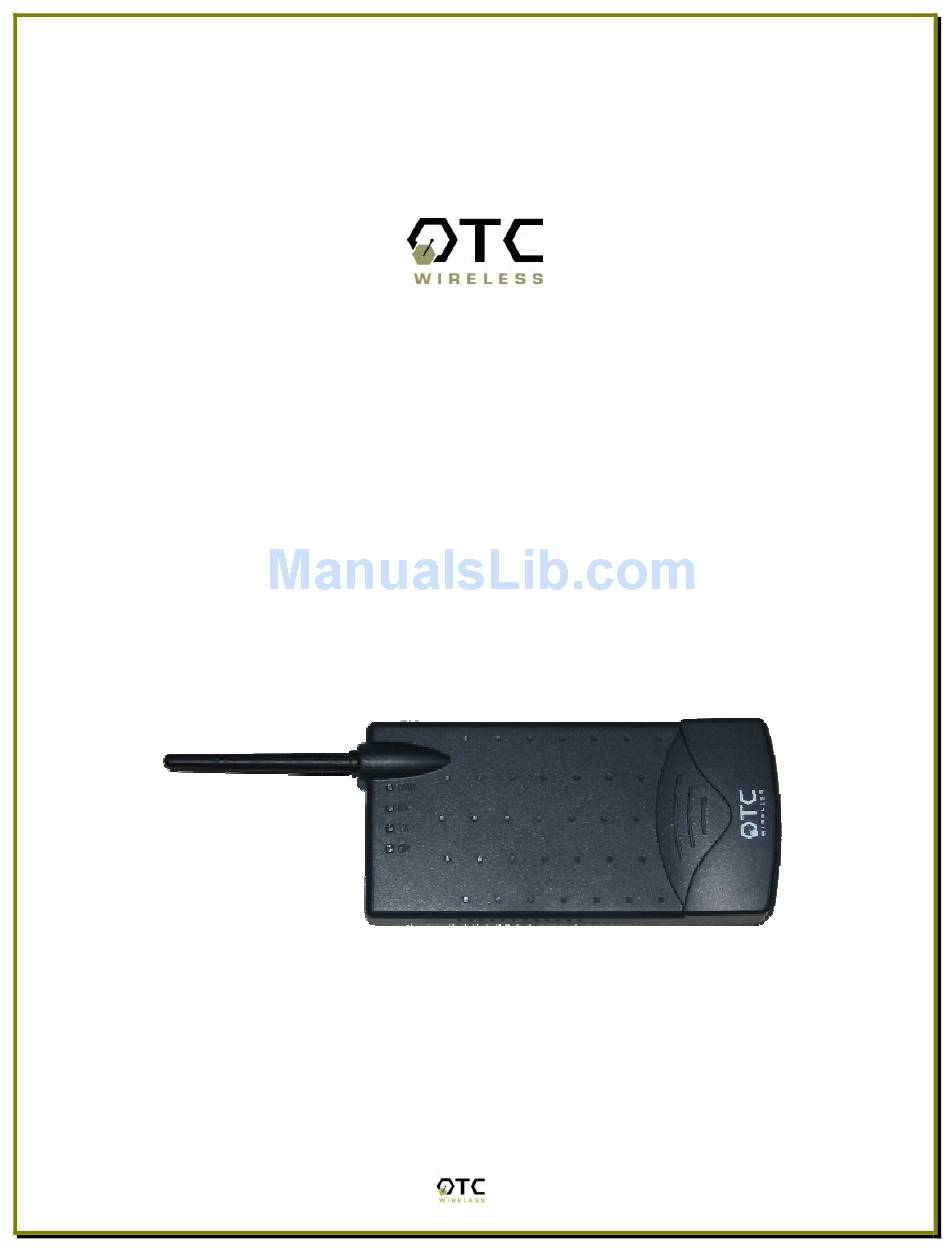

Page 1: User Guide
WiFi Wireless Ethernet Adapter AirEZY-2411-BT (ASR-102/ACR-201) User Guide... - Page 2 The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners. Copyright 2001, 2002 OTC Wireless, Inc. All rights reserved. Revision: v1.13, 10/15/2002...
-
Page 3: Table Of Contents
Chapter 3 UTILITY SOFTWARE Use the Utility Program Overview of the Tabs Configure AirEZY-2411-BT Configure AirEZY-2411-BT as an Access Point (ASR-102) Configure AirEZY-2411-BT as a Station (ACR-201) Set up the Encryption Obtain the Link Information View the Packet Statistics Uninstall the Utility Software... -
Page 4: Chapter 1 Introduction
Two features separate AirEZY-2411-BT from many other 802.11b-compliant radios. Firstly, this 802.11b-compliant (WiFi) radio can be configured as either a Station (ACR-201) or an AP (ASR-102). Secondly, when configured as a Station, the 10-BaseT interface affords it a true plug-and-play feature that is unavailable from any other 802.11b Station radios are based on either a PCMCIA... -
Page 5: Data Sheet
AirEZY-2411-BT (ASR-102/ACR-201) WiFi Radio Highest degree of security provided by Configurable as either an Access Point or a Station Plug & Play as a Station— o No driver on the host device is required for radio operation o Radio operation is independent of the operating system on the host device (Windows 98/2000/ME, Linux, Unix, embedded, etc.), as long as an Ethernet port is properly supported... -
Page 6: Chapter 2 Installation
NOC side. This scheme is particularly useful when AirEZY-2411- BT is deployed as Access Point at a location without an installed AC outlet. Ethernet Connection When configured as a Station, , i.e., ACR-201, AirEZY-2411-BTcan connected computer’s, or a printer- server’s Ethernet port via... - Page 7 in the shipment. Power on the AirEZY 2411 BT, the LEDs on the front panel should exhibit the following patterns: Color Light Blinking Pattern Steady on GREEN Steady on on, when transmitting RF signal LINK YELLOW Flickering when communicating over the Ethernet port;...
-
Page 8: Optional Hardware
Three installation examples are shown below. Power drawn from the USB Printer Optional Hardware Radio with externally mounted antenna (ASR-102E/ACR-201E) Power over Ethernet: DC-injector and dc-extractor 9V adapter if up to 120-ft long CAT-5 cable is used 12V adapter if up to 240-ft long CAT-5 cable is used USB power cable PS2 power cable Ethernet... -
Page 9: Installing The Utility Software
Installing the Utility Software System Requirements To use the AirEZY-2411-BT Wireless Ethernet Adapter’s utilities software, your computer must meet the following minimum requirements: Windows® 95 (OSR2)/ 98 (SEC)/ME/2000/XP Ethernet capable computer with RJ-45 port (either built-in or add-on NIC) Installation To install the utility program, simply insert the CD-ROM provided and the installation process will finish with you clicking a few “OK”. -
Page 10: Chapter 3 Utility Software
Chapter 3 Use the Utility Program Once the radio is properly turned on and connected either directly to the Screen-Shot #1 Clicking the OK button signals the successful completion of the use of the Utility program. The program applies the modifications made to all tabs and exits. Clicking the Exit button exits the program without changing the setting of the radio. -
Page 11: Configure Airezy-2411-Bt As An Access Point (Asr-102)
Configure AirEZY-2411-BT as an Access Point (ASR-102) By checking the “Change Role to AP” (red-arrowed in screen-shot #3), most Screen-Shot #2 parameter fields become undimmed and modifiable, as seen in screen-shot #3 . With the exception of the “MAC” field, and sometimes the “Allowed Station List” field, each filed can be modified and uploaded into the radio by clicking the Apply button without exiting the program, or by clicking the OK button right before exiting the program. - Page 12 Each field on this “Access Point” sub-tab is explained below. Device Name: Allows the user to enter a user- defined name for the radio. Up to 32 bytes can be used. MAC: Displays the MAC address of the radio when it is configured as an AP. This filed cannot be modified.
- Page 13 exactly the same SSID as the SSID entered in this sub-tab. The tightest level of network access control is implemented in Allowed List], add one additional criterion for a Station to gain access to the network associated with this AP—its MAC address must appear in the Station List”...
- Page 14 system” mode. When the “shared key” option is chosen, the “Encryption” tab of the Utility program must be properly filled out. Fragmentation Threshold: In the presence of hostile RF environment, such as interference, frames longer than this threshold numbers in bytes are divided prior to transmission into one or more fragments equal in length to the fragmentation threshold.
-
Page 15: Configure Airezy-2411-Bt As A Station (Acr-201)
Configure AirEZY-2411-BT as a Station (ACR-201) Click on the “Station” sub-tab to display the “Station” page if the “Access Point” page after clicking “Configuration” tab. Similar to the case of configuring the radio for AP, checking the “Change Role to Station” undims the page and makes most fields modifiable. -
Page 16: Set Up The Encryption
PS Mode: Power Saving can be enabled only when “Infrastructure” is selected for the “Network Type”. Channel: This field is modifiable only when the “Ad hoc” type is selected for “Network Type”. The Station automatically scans for the right channel to join when operated in the “Infrastructure”... - Page 17 applied to other Wi-Fi radios, however, may result in very different keys. For this reason, clicking the Apply button after entering the pass-phrase will cause the 4 sets of keys being temporarily displayed under “Manual Entry” as if they were entered manually.
-
Page 18: Obtain The Link Information
of the default keys for transmitting its data. When Use Dynamic WEP Key checked, only 3 default keys are available for selection (Screen Shot #11). Note that once the Dynamic WEP Key is in force, the Transmission Key Selection (Screen Shot#12) made by the user is only used in the authentication process... -
Page 19: View The Packet Statistics
transmitted data packets. “Signal Strength” directly measures the amount of RF energy received relative to a “maximum” expected for the best condition. The two measures are related, but could differ due to various reasons. In general, as a first step toward maximizing Link Quality, one should try to maximize the Signal Strength by moving the radio around. -
Page 20: Uninstall The Utility Software
Notice also that in this manual mode throughputs in Bits/Sec are not calculated due the imprecise timing. Uninstall the Utility Software If you need to uninstall the Utility software for any reason, complete the following steps: 1. Close all programs that are currently running. 2. -
Page 21: Chapter 4 Troubleshooting
Check to make sure that the Ethernet card of the computer running the Utility program is functional. No Radio Link When Set Up As a Station (ACR-201) If the AirEZY-2411-BT is intended to function as a Station but the “Link Quality”... -
Page 22: No Network Connection While The Radio Link Is Good
• Make sure that the MAC address of the Station in question is properly entered into the “Allowed Station List” of the AP if enhanced security level 3, [Hide SSID, Match SSID, Use Allowed • Make sure that the Station in question has exactly the same SSID as the AP if enhanced security level 2 or 3 is chosen. -
Page 23: Radio Interference
• Make sure that the radio is not surrounded by many strongly reflecting (metallic) surfaces. With multiple reflecting surfaces between the radio in question and the target radio, a severe “multi-path” problem may introduce high bit error rate despite a strong “Signal Strength”. •... -
Page 24: Appendix A: Limited Warranty
Appendix A: LIMITED WARRANTY Wireless LAN Hardware The seller warrants to the end user (“Customer”) that this hardware product will be free from defects in workmanship and materials, under normal use and service, for one (1) year from the date of purchase from the seller or its authorized reseller. -
Page 25: Appendix B: Regulatroy Compliance
Appendix B: REGULATORY COMPLIANCE FCC Part 15 Declaration of Conformity (DoC) The following equipment: Product Name: Wireless Ethernet Adapter Model Number: AirEZY-2411-BT WLAN is herewith confirmed to comply with the requirements of FCC Part 15 rules. The operation is subject to the following two conditions: 1. - Page 26 European Community (EC) Directives Conformity and Restrictions This product is in conformity with the protection requirements of EC Council directives 89/336/EEC, 73/23/EEC, and 1999/5/EC on the approximation and harmonization of the laws of the Member States relating to electromagnetic compatibility, safety of electrical equipment designed for use within certain voltage limits and on radio equipment and telecommunications terminal equipment.
-
Page 27: Glossary
GLOSSARY 10BaseT An IEEE standard (802.3) for operating 10 Mbps Ethernet networks (LANs) with twisted pair cabling and a wiring hub. Access Point An internetworking device that seamlessly connects wired and wireless networks. Access Points combined with a distributed system support the creation of multiple radio cells that enable roaming throughout a facility. - Page 28 Hidden Node The situation where two or more radios in a multiple-radio network fail to detect the RF signals from each other. For example, in a 3-radio network, radio 2 and 3 both have good link to radio 1. Radio 2 and 3, however, are isolated from each other by, say, a metal wall.
- Page 29 PCMCIA Personal Computer Memory Card International Association. This Association develops standards for PC cards, formerly known as PCMCIA cards. These cards are available in three types, and are about the same length and width as credit cards. However, the different cards range in thickness from 3.3 mm (Type I) to 5.0 mm (Type II) to 10.5 mm (Type III).
