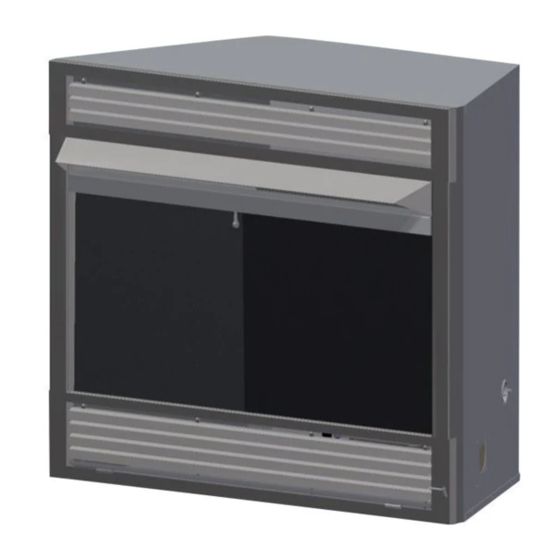

Unvented firebox

Advertisement

MODEL #PHZC32C / PHZC36C / PHZC42C / PHZC32F / PHZC36F / PHZC42F
WARNINGS
If the information in this manual is not
followed exactly, a
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
– Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Carefully review the instructions supplied with
the decorative type unvented room heater for
the minimum fireplace size requirement.
DO NOT INSTALL AN APPLIANCE IN THIS
FIREBOX UNLESS THIS FIREBOX MEETS
THE MINIMUM DIMENSIONS REQUIRED
FOR THE INSTALLATION.
80-10-505
USE AND CARE GUIDE
UNVENTED FIREBOX
fire
or
explosion
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 877-447-4768 8:30 a.m. – 4:30 pm CST,
Monday – Friday. or email us at customerservice@ghpgroupinc.com
C
US
C
US
ANS Z21.91-2017
For use with a listed gas-fired
unvented decorative room heater
not to exceed 40,000 BTU/hr. Do
Not Build a Wood Fire.
INSTALLER: Leave this manual
with the appliance.
CONSUMER: Retain this manual
for future reference.
1
Español p. 18
6440 W. Howard St.
Niles, IL 60714-3302
2018-06-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHZC32C and is the answer not in the manual?

Questions and answers

Summary of Contents for pleasant hearth PHZC32C

  • Page 1 USE AND CARE GUIDE UNVENTED FIREBOX MODEL #PHZC32C / PHZC36C / PHZC42C / PHZC32F / PHZC36F / PHZC42F Español p. 18 WARNINGS If the information in this manual is not followed exactly, a fire explosion may result causing property damage, personal injury or loss of life.
  • Page 2: Table Of Contents

    Framing Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 7 PHZC32C / PHZC36C / PHZC42C . . . . . . . . . . . . . 14 Minimum Clearances .
  • Page 3: Important Safety Information

    Important Safety Information WARNING! • Any change to this heater or its controls can be dangerous . • Improper installation or use of the heater can cause serious injury or death from fire, burns, explosion or carbon monoxide poisoning . •...
  • Page 4 Important Safety Information 24 . Do not use this room heater if any part has been under water . Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water . 25 .
  • Page 5: General Installation Information

    The PHZC32F, PHZC36F, and PHZC42F models are radiant vent-free fireboxes . The PHZC32C, PHZC36C, and PHZC42C feature a self contained heat-circulating system . This installation manual will enable you to obtain a safe, efficient and dependable installation of your vent-free fireplace system .
  • Page 6: Firebox Dimensions And Firebox Location

    Firebox Dimensions and Firebox Location LOCATION OF FIREBOX Carefully select the best location for installation of your vent-free firebox . The following factors should be taken into consideration: • Clearance to side wall, ceiling, woodwork and windows . 20.7 See “Clearances/Height Requirements on page 8 . Minimum clearances to combustibles must be main- tained.
  • Page 7: Framing Dimensions

    Framing Dimensions MINIMUM CORNER FRAMING DIMENSIONS Firebox Size 31 1/2" 44 1/2" 32" 63" 33 1/2" 47 3/8" 36" 67" 36 1/2" 51 5/8" 42" 73" Figure - Corner Framing Dimensions MINIMUM FRAMING DIMENSIONS FIREBOX SIZE 34 3/4" 36 1/2" 21 1/2"...
  • Page 8: Minimum Clearances

    Minimum Clearances Ensure that minimum clearances shown in Figures 4 through 8 are maintained . Left and right clearances are determined when facing the front of the firebox . Follow these instructions carefully to ensure safe installation . 42" Minimum Clearance to Ceiling Failure to follow these requirements may create a fire hazard .
  • Page 9: Minimum Clearances And Firebox Framing

    Minimum Clearances and Framing FIREBOX FRAMING 5 . Floor clearance: This inner chamber firebox floor must be installed at least 5” above any combustible flooring material, Firebox framing can be built before or after the appliance is set in such as carpeting or asphalt tile, which is closer than 14” to place .
  • Page 10: Fireplace And Canopy/Hood Installation

    Fireplace and Canopy/Hood Installation TOP Standoff Nailing Flanges Slotted Mounting Hole #8 x 3/8" Mounting Screws SIDE Standoff (Nailing Flange) Standoff Installation Instructions: Figure 9 - Mounting Standoff Brackets 1. Position the "Side" Standoff Bracket as shown and start both mounting screws. Push the Standoff Bracket forward and tighten both mounting screws to position the Firebox for 9/16"...
  • Page 11: Gas Line Installation

    Gas Line Installation WARNING! WARNING! Plumbing connections should only be performed by a qualified, Connecting directly to an unregulated propane / L .P .G . tank can licensed plumber . Main gas supply must be off when plumbing cause an explosion . gas line to fireplace or performing service .
  • Page 12: Combustion Air

    Combustion Air COMBUSTION AIR Notice: If you do not install an outside air kit be sure to 1 . Locate combustion air assembly at an exterior location which is keep the lever in the “closed” position to avoid cold air not likely to be accidentally blocked in any manner .
  • Page 13: Optional Equipment

    OPTIONAL BLOWER (ZCB100) If you are installing the forced air kit on PHZC32C, PHZC36C, and PHZC42C models, see the installation instructions provided with the kit for electrical wiring requirements, or the blower installation section . The firebox must be connected to main power supply at time of firebox installation .
  • Page 14: Replacement Parts

    Replacement Parts PHZC32C / PHZC36C / PHZC42C CIRCULATING CANOPY/HOOD FIREBOX LH PANEL CENTER PANEL TOP GRILL ASSEMBLY RH PANEL OPTIONAL BLOWER CURTAIN SCREEN ROD CURTAIN SCREEN BOTTOM GRILL ASSEMBLY FIREBOX COMPONENTS Fig. - Circulating Firebox Assembly Ref. Description Qty. PHZC32C...
  • Page 15: Phzc32F / Phzc36F / Phzc42F

    Replacement Parts PHZC32F / PHZC36F / PHZC42F RADIANT FIREBOX CANOPY/HOOD LH PANEL CURTAIN SCREEN ROD RH PANEL CURTAIN SCREEN CENTER PANEL FIREBOX COMPONENTS Ref. Description Fig. Qty. - Radiant Firebox Assembly PHZC32F PHZC36F PHZC42F Canopy/Hood ZCF-7018 ZCF-5018 ZCF-3018 Curtain Screen Rod ZCF-5016 ZCF-5017 ZCF-3017...
  • Page 16: Warranty

    Warranty 1-YEAR WARRANTY LIMITED WARRANTY: GHP Group Inc . warrants this product to be free from defects in materials and components for ONE (1) year from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions, to make a claim under this warranty, the Bill of Sale or cancelled check must be presented .
