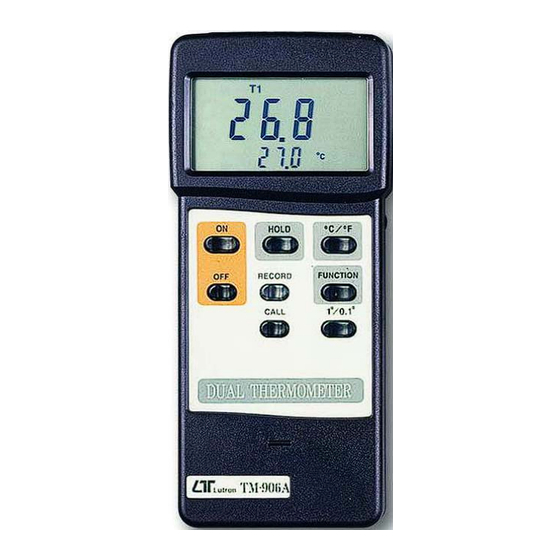

Lutron Electronics TM-906A Operation Manual
  1. Manuals
  2. Brands
  3. Lutron Electronics Manuals
  4. Thermometer
  5. TM-906A
  6. Operation manual

Lutron Electronics TM-906A Operation Manual

Dual thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

RS-232
DUAL
THERMOMETER
Model : TM-906A
OPERATION MANUAL
Your
purchase
DUAL
THERMOMETER
marks a step forward for
you
into
the
precision measurement.
A l t h o u g h
THERMOMETER
complex
and
instrument,
structure will allow many
years of use if proper
operating techniques are
developed.
Please
the following instructions
carefully and always keep
this manual within easy
reach.
of
this
field
of
t h i s
is
a
delicate
its
durable
read

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-906A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics TM-906A

Summary of Contents for Lutron Electronics TM-906A

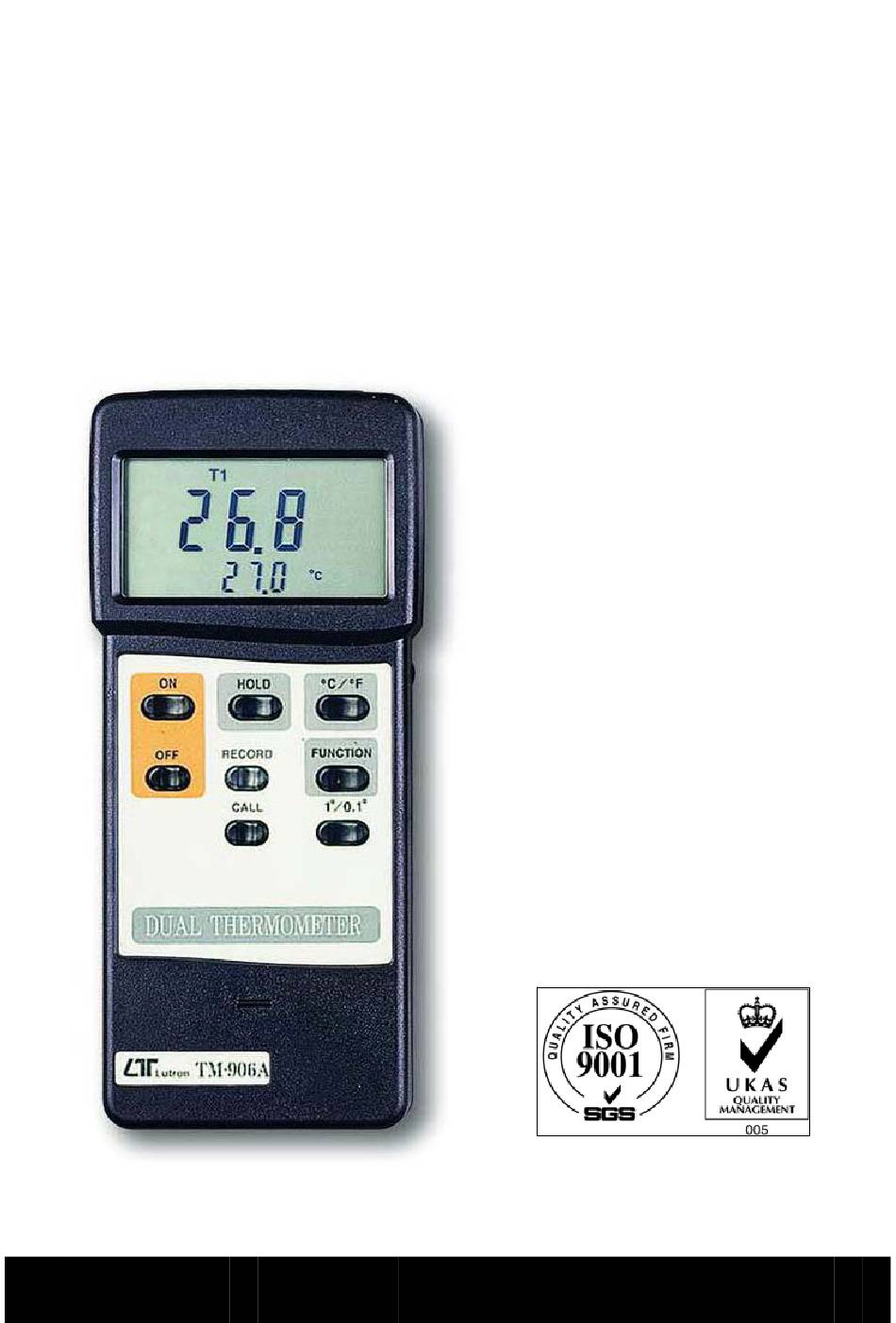

  • Page 1 RS-232 DUAL THERMOMETER Model : TM-906A Your purchase this DUAL THERMOMETER marks a step forward for into field precision measurement. A l t h o u g h t h i s THERMOMETER complex delicate instrument, durable structure will allow many...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............2 2-1 General Specifications..........2 2-2 Electrical Specifications........... 3 3. FRONT PANEL DESCRIPTION........4 Display..............4 Power On button..........4 Data Hold Button..........4 蚓/ 蚌 button............4 Power Off button..........4 Memory "Record" Button........4 Memory "Call"...

  • Page 3: Features

    1. FEATURES * Microprocessor circuit assures high accuracy and provides special functions and features. * Super large LCD display, easy reading. * Dual function meter's display. * Heavy duty & compact housing case. * Records Maximum, Minimum readings with RECALL. * Data hold.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom one-chip of microprocessor LSI with thermocouple linearity correction circuit. Display Dual function meter's display, 13 mm(0.5"), Super large LCD display with annuciator. Measurement Two channel temp. input (T1, T2), differential temp. measurement(T1 -T2), 蚓/蚌, 0.11degree.

  • Page 5: Electrical Specifications

    006P DC 9V battery(Heavy duty type). Power Supply Approx. DC 6.2 mA. Power Current Weight 275 g/0.61 LB (included batteries & probe) Size Main instrument: 180 x 72 x 32 mm(7.1 x 2.8 x1.3 inch). Instruction Manual ....1 PC. Accessories Included Temperature probe, carrying case.

  • Page 6: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-8 Function Button 3-2 Power On button (T1, T2, T1-T2) 3-3 Data Hold Button 3-9 10.1Button 3-4 蚓/ 蚌 button 3-10 Battery Compartment 3-5 Power Off button /Cover 3-6 Memory "Record" 3-11 T1 Input Socket 3-12 T2 Input Socket Button 3-7 Memory "Call"...

  • Page 7: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Temperature Measurement (1) Push the "Power Off Button"(3-2, Fig. 1) to let the instrument power "ON". The instrument has built-in "Auto Power Shut-off" in order to prolong battery life. To eliminate the " Auto power off " function, select the memory record function during measurement, by pressing the "...
  • Page 8 e. The main display(upper display) will show the differential temperature reading of the first & second probe(T1 - T2) & the lower display will show the temperature reading of first probe(T1), if push the "Function Button"(3-8, Fig. 1) until the display show the marker "T1 - T2".

  • Page 9: Measuring Consideration

    4-4 Following are the block diagrams for quick measuring procedures Main procedures Power ON Determine 蚓 / 蚌 or 10.1 Select the function switch to T1, T2, or T1 - T2. Optional measuring procedures DATA HOLD MEMORY RECORD RS232 OUTPUT Max., Min.

  • Page 10: Rs232 Pc Interface

    6. RS232 PC INTERFACE The instrument features an RS232 output via 3.5 mm Terminal ( 3-13, Fig. 1). The connector output is a 16 digit data stream which can be utilized to the user's specific application. An RS232 lead with the following connection will be required to link the instrument with the PC serial input.

  • Page 11: Battery Replacement

    D11 & D12 Anunuciator for Upper Display 00 =No Symbol 07 = mg/L 14 =mS 01 =C 08 = m/s 15 =Lux 02 =F 09 = Knots 16 =Ft-cd 03 = % 10 = Km/h 17 =dB 04 = % RH 11 = Ft/min 18 =mV 05 = % PH...

  • Page 12: Optional Temperature Probe & & Other Accessories

    * Dimension: 10cm tube, 8mm Dia. Surface Probe * Measure Range: -50 蚓 to 400 蚓, (Type K), TP-04 -50 蚌 to 752 蚌. * Size : Temp. sensing head - 15 mm Dia. Probe length - 120 mm. 0506-TM-906A...
