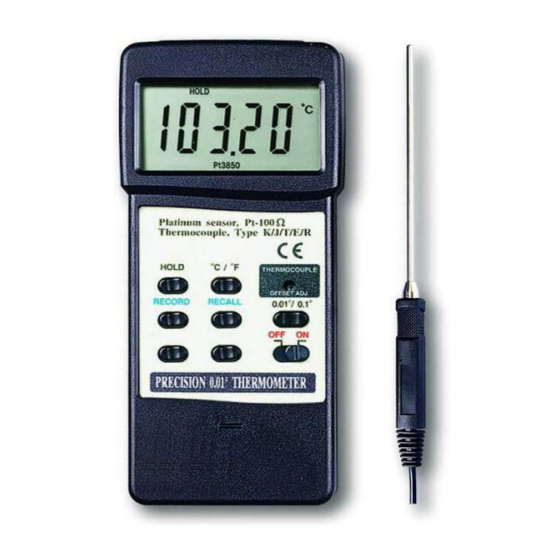

PRECISION 0.01°
THERMOMETER
Model : TM-917
PT 100 ohm, type K/J/R/E/T
Your purchase of this PRECISION THERMOMETER marks a step
forward for you into the field of precision measurement.
Although this METER is a complex and delicate instrument, its
durable
structure
developed.
Please
read
the
following
instructions carefully and always keep this manual within easy
reach.
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-917 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics TM-917

Summary of Contents for Lutron Electronics TM-917

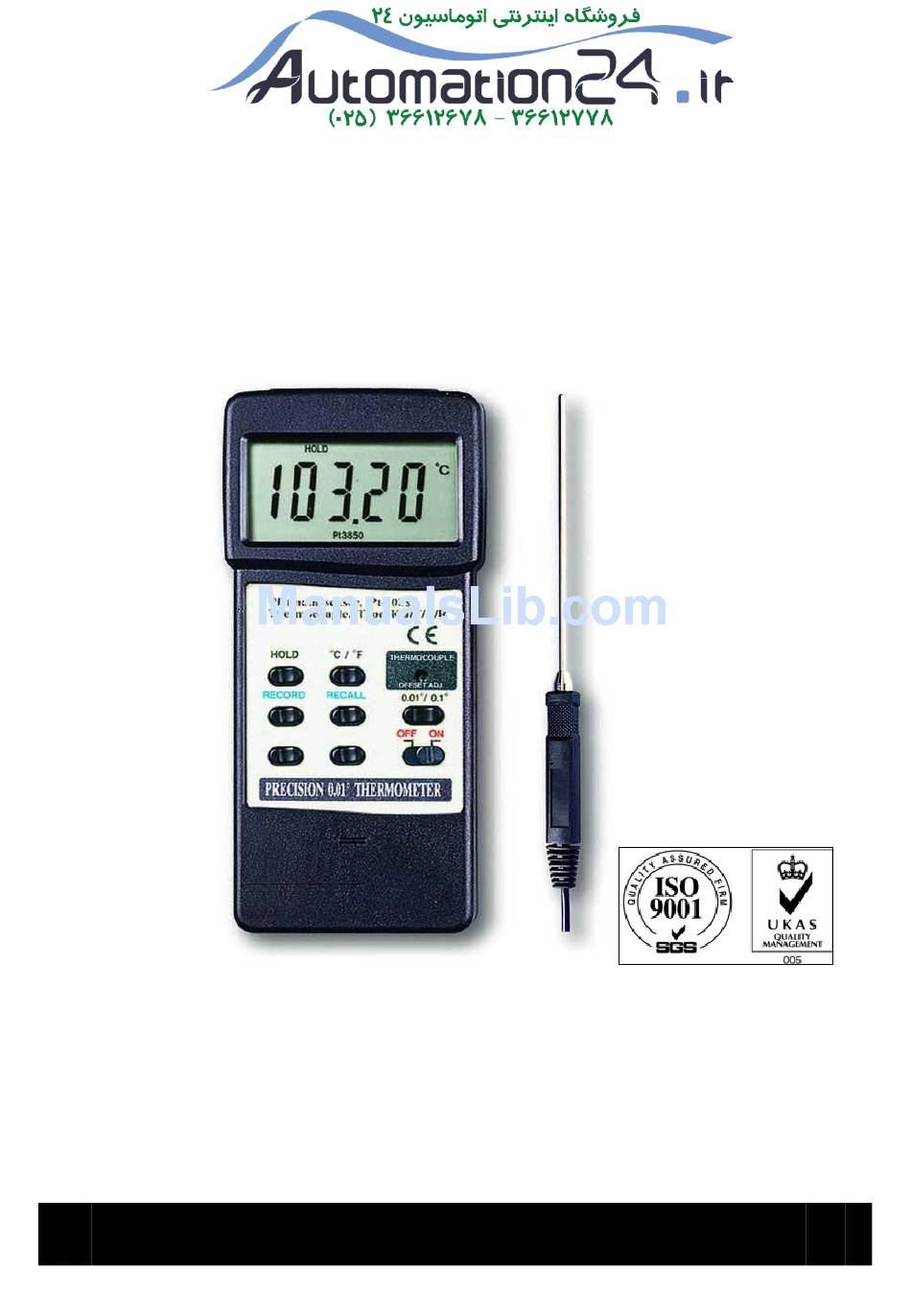

  • Page 1 PRECISION 0.01° THERMOMETER Model : TM-917 PT 100 ohm, type K/J/R/E/T Your purchase of this PRECISION THERMOMETER marks a step forward for you into the field of precision measurement. Although this METER is a complex and delicate instrument, its durable structure developed.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES............... 1 2. SPECIFICATIONS............ 1 2-1 General Specifications........1 2-2 Electrical Specifications........2 3. FRONT PANEL DESCRIPTION........3 3-1 Display..............3 3-2 Hold Button............3 3-3 Record Button........... 3 3-4 Recall Button.............3 3-5 Sensor Select Button..........3 3-6 Rel. ( Relative ) Button........3 3-7 Power On/Off Switch.........

  • Page 3: Features

    1. FEATURES * Professional thermometer with high accuracy & 0.01 resolution. * Accept multi type temp. probe input : platinum Pt 100 ohm, thermocouple type K/J/T/E/R. * With 0.01 high resolution both for Platinum & Thermocouple probe input. * Pt 100 probe input cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Display 62 mm x 34 mm supper large LCD display, 13 mm ( 0.5" ) digit size. 6 types : Sensor type 1. Platinum PT 100 ohm ( 0.00385 alpha coefficient, meet DIN IEC 751 ) 2.
  • Page 5 Heavy duty or Alkaline type, Power Supply DC 9V battery, 006P, MN1604 ( PP3 ) or equivalent. Power Approx. DC 15 mA. Consumption Operating 0 to 50 蚓 (32 to 122 蚌). Temperature Operating Less than 80% RH. Humidity Meter Size HWD 180x72x32 mm ( 7.1x2.8x1.3 inch ).

  • Page 6: Electrical Specifications

    2-2 Electrical Specifications ( 23 5 蚓 ) Type Reso- Range Accuracy lution Platinum 0.01 蚓 -199.99 to 199.99 蚓 0.1% + 0.2蚓) 0.1 蚓 200.0 to 850.0 蚓 100 ohm 0.01 蚌 -199.99 to 392.00 蚌 0.1% + 0.4蚌) 0.1 蚌...

  • Page 7: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 Hold Button 3-3 Record Button 3-4 Recall Button 3-5 Sensor Select Button 3-6 Rel. ( Relative ) Button 3-7 Power On/Off Switch 3-8 0.10.01Button 3-9 Offset VR 3-10 CFButton 3-11 Thermocouple Socket 3-12 Pt 100 ohm Probe Socket 3-13 RS-232 Output Socket 3-14 Battery Cover/Compartment...

  • Page 8: Measuring Procedures

    4. MEASURING PROCEDURE 1) Connect the " Probe Plug " into the " Input Socket ". * The input socket of PT-100 ohm is the " 3-12, Fig. 1 ". * The input socket of Thermocouple type K/J/T/E/R is the "...
  • Page 9 Data Hold : During the measurement, push the " Hold Button " ( 3-2, Fig. 1 ) will freeze the display value & LCD will show the " HOLD " marker. Push the " Hold Button " once again will release the data hold function. Relative Measurement @ During the measurement, the circuit will memorize the last measured values if push the "REL.
  • Page 10 Data Record ( Max. and Min. reading ) The Data Record function displays the maximum and minimum readings. To start the Data Record function, press the " Record Button " ( 3-3, Fig. 1 ) once. " REC " symbol will appear on the LCD display. With the "...

  • Page 11: Rs232 Pc Serial Interface

    b) Use the fingers to hold on the "REL Button " ( 3-6, Fig. 1) together with the " Sensor Select Button " (3-5, Fig. 1) until the right down corner of LCD display show the "A" mark, use the screw driver to adjust the "...

  • Page 12: Replacement Of Battery

    Each digit indicate the following status : End Word D1 & D8 Display reading, D1 = LSD, D8 = MSD For example : If the display reading is 1234, then D8 to D1 is : 00001234 Decimal Point(DP), position from right to the left 0 = No DP, 1= 1 DP, 2 = 2 DP, 3 = 3 DP Polarity 0 = Positive...

  • Page 13: Optional Accessories

    7. OPTIONAL ACCESSORIES 7-1 Pt-100 ohm Probe, Model : TP-100 Model TP-100 Features Cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751. 0 蚓 100 ohm. resistance Measuring -50 C to 400 C. Range -58 F to 752 F. Plug DIN plug, 4 pins/4 wires.
  • Page 14 260 x 110 x 55 mm. Model : CA-03 Vinyl soft carrying case size : 190 x 90 x 55 mm. 7-4 Software & RS 232 cable Model : Data acquisition software SW-U101-WIN ( windows version ) Model : RS232 cable UPCB-01 0310-TM-917...
