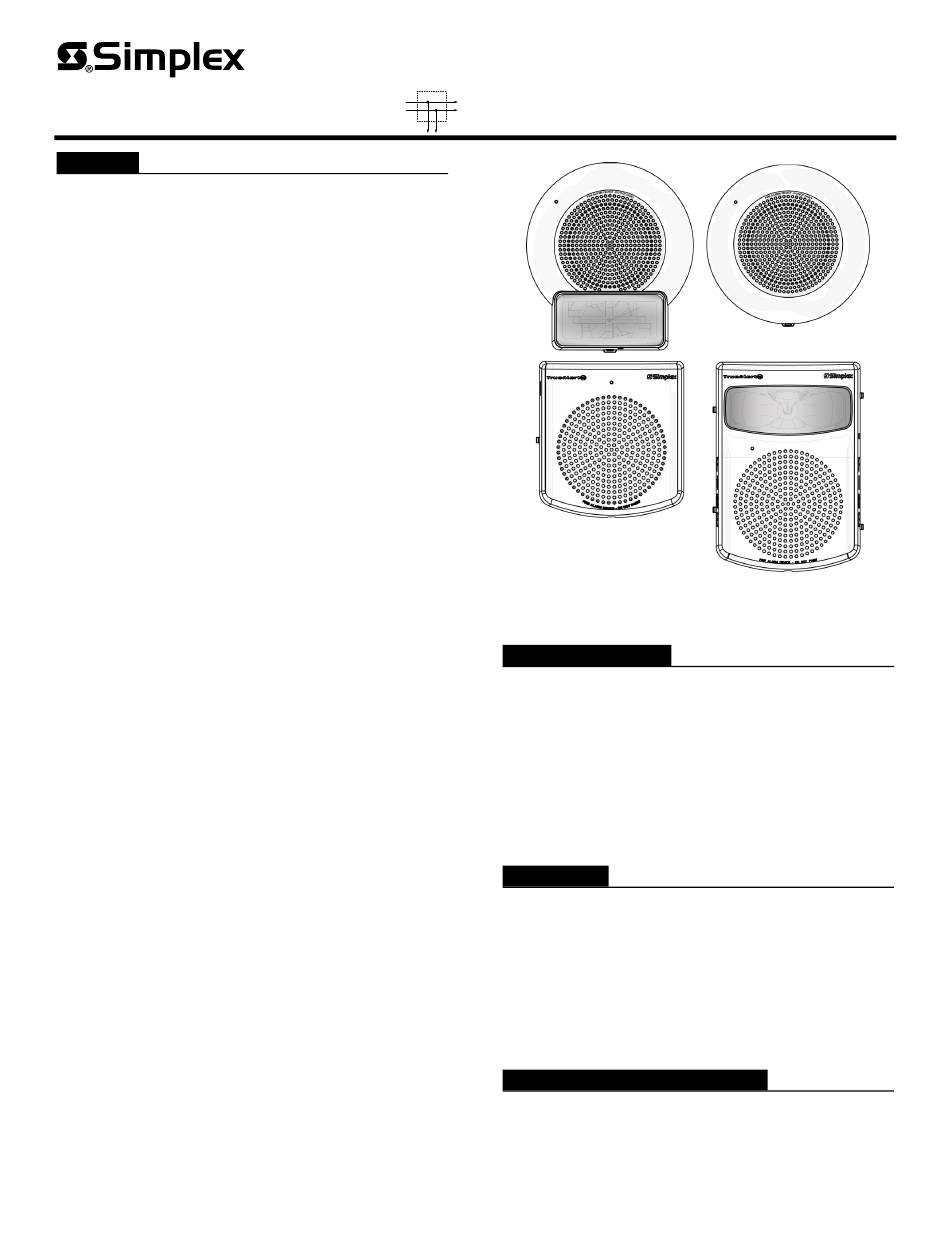

Simplex TrueAlert 49HF-APPLW Instructions

UL, ULC Listed*
Features
Individually addressed and controlled Speaker
(S/O) and Speaker Visible (S/V) notification
appliances
 Advanced addressable notification controlled by IDNAC
SLCs provides regulated 29 VDC for low current operation
even under battery backup.
 Wiring supervision is electronically monitored and
allows audio wiring to be T-tapped for class B wiring,
reducing wiring costs and wiring distances.
 Speaker selectivity is controlled by the panel. Only those
speakers that are needed are connected to the audio
NAC.
 Separate appliance and cover selection greatly simplifies
the ordering and installation process.
 Strobe intensity can be programmed from the control
panel or the device for S/V models.
 Self-Test Mode allows on-board sensors to detect the
strobe and speaker output and then report their status to
the control panel.
 Wiring terminals separate from the Audio terminals.
 TrueAlert Device Reports at the control panel detailing
appliance point ID, custom label, type, and candela
setting.
 Magnet test diagnostics to assist checkout and testing of
appliances and wiring.
 Compatibility with ADA requirements.
LED indicator and magnet test feature
 Appliance LED can be selected to display each polling
cycle to indicate appliance supervision
 In diagnostic mode, the magnet test pulses the LED to
indicate appliance address and pulses to indicate the
intensity selection; a brief output of the strobe is also
selectable to confirm operation
Mechanical design features
 Rugged, high impact, flame retardant thermoplastic
housings are available for wall or ceiling mount models
 Covers are available in red or white with various
lettering options
 Covers can be easily removed without disturbing the
connected housing and avoiding trouble conditions
 In/out wiring terminals for 18 AWG to 12 AWG
 Mounts to 4" square 2 ⅛" gang US electrical boxes
* Additional listings may be applicable; contact your local Simplex product supplier for
the latest status. Listings and approvals under Simplex Time Recorder Co. are the
property of Tyco Fire Protection Products.
TrueAlert Addressable Notification Appliances

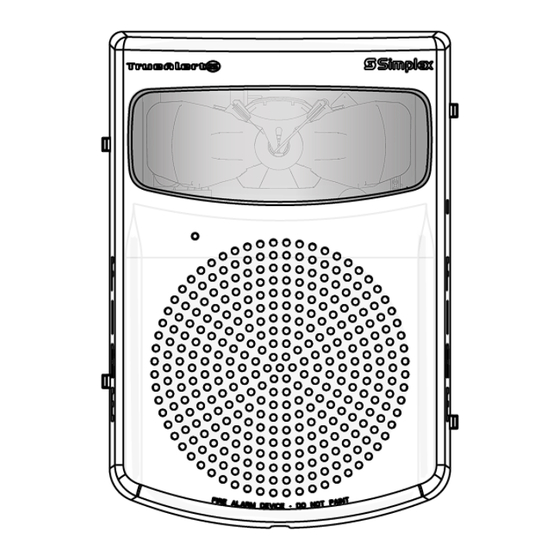

Wall and Ceiling Mount Addressable Speaker
and Speaker Visible Notification Appliances
Ceiling and Wall Mount Addressable Speaker Only and
Features (Continued)
Speaker design features
 High quality voice and tone reproduction with taps for
¼, ½, 1, or 2 W, at 25 or 70.7 VRMS
 Speakers have capacitor input for connection to DC
supervised NACs and are wired separately from strobes
 Listed to UL 1480 and ULC S541*
 Compliant with NFPA 72, 520 Hz Low Frequency
Signal Requirements for Sleeping Areas
 High and low frequency response models available,
200-10000 Hz and 400-4000 Hz respectively.
Description
Wall and ceiling mount addressable speaker and
speaker visible appliances provide convenient
installation to standard electrical boxes. The speaker is
individually addressed and individually controlled with
power, supervision, and control supplied from a Simplex
fire alarm control panel IDNAC Signaling Line Circuit
(SLC). Audio is provided by a panel that supports audio
output or from a separate audio source. Appliances use a
multi-tapped speaker for audio/tone notification.
Strobe Application Reference
Proper selection of visible notification is dependent on
occupancy, location, local codes, and proper applications
of: the National Fire Alarm and Signaling Code
(NFPA 72), ANSI A117.1; the appropriate model
building code: BOCA, ICBO, or SBCCI; and the
application guidelines of the Americans with Disabilities
Act (ADA).
Speaker Visible Strobes
S49SWC-0001-1 11/2015
