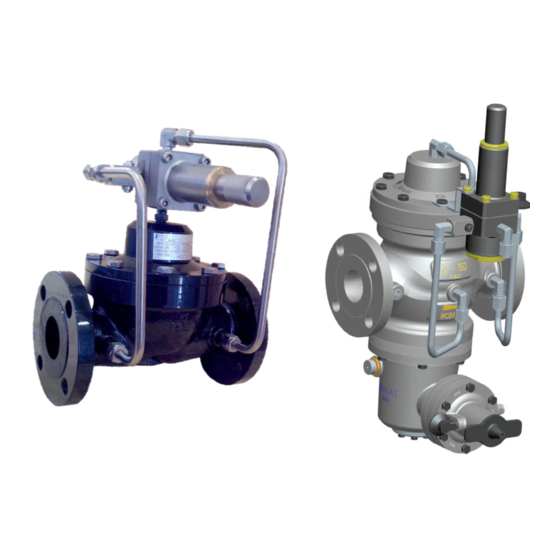

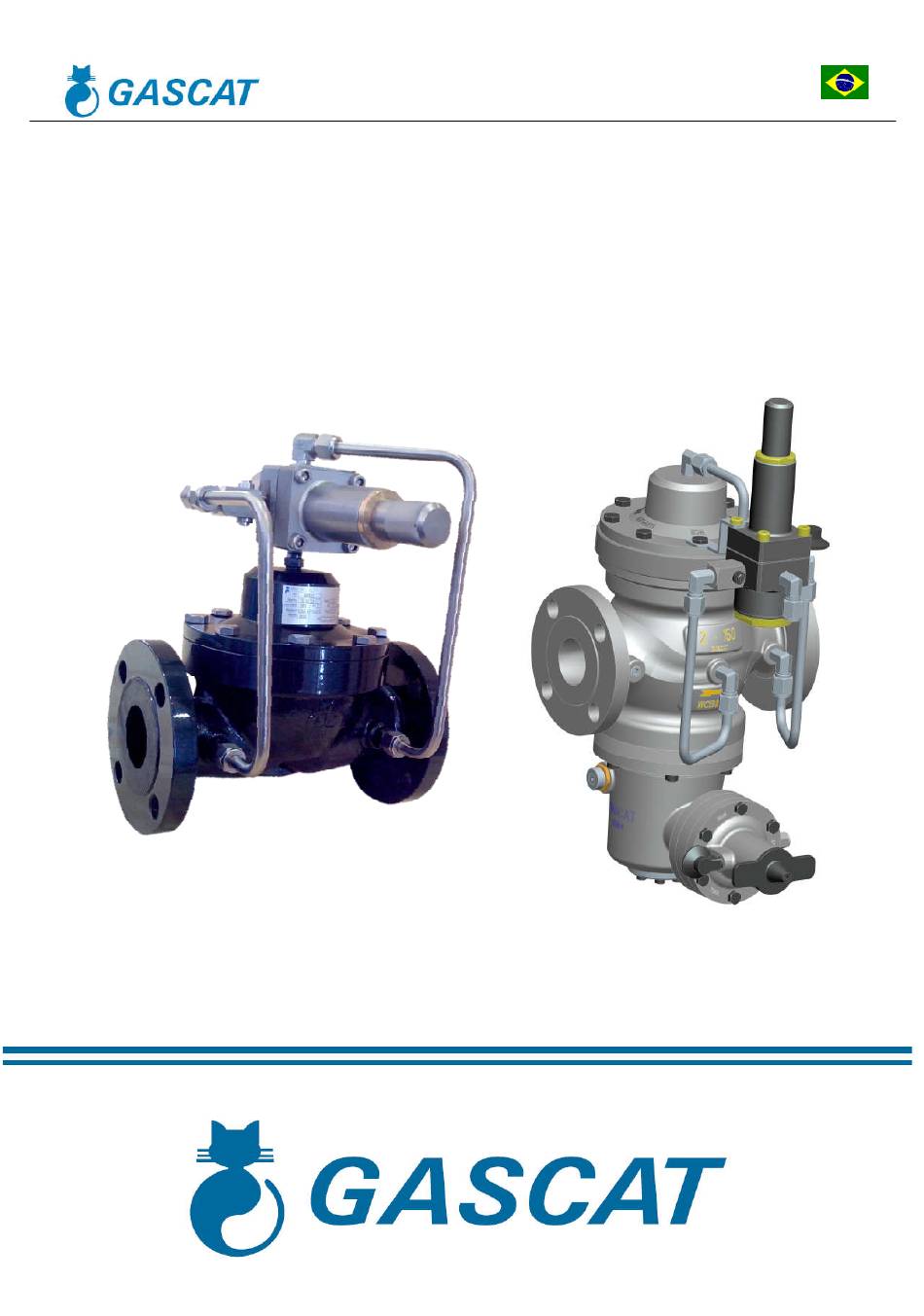

- Page 1 Installation, Operation & Maintenance Manual Pressure Regulating Valve Model ARGOS...
-
Page 2: Table Of Contents
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve TABLE OF CONTENTS 1.0 GENERAL WARNING 1.1 PRE-COMMISSIONING INSTRUCTIONS 1.2 - HEALTH & SAFETY 1.2.1 - NOISE 1.2.2 - INSTALLATION 1.2.3 - OPERATION 1.2.4. MAINTENANCE 2.0 INTRODUCTION 2.1 SCOPE 2.2 DESCRIPTION 2.3 SPECIFICATIONS... -
Page 3: General Warning
If there are any questions or ambiguities that affect the proper procedures ask Gascat Ind. e Com. Ltda., who will be pleased to advise or provide the relevant service or instruction. -
Page 4: Maintenance
ARGOS manufactured by GASCAT. 2.2 DESCRIPTION The pressure regulator model ARGOS is pilot operated type designed by Gascat engineering to assist different applications. It has large utilization in the Gas Distribution. Outstanding by simplicity of operation and handling, facility of maintenance due of few internal parts and the relation cost-benefit. -
Page 5: Temperature Limits
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve FLANGE ASME B16.5 FLANGE DIN 2634 / 2635 150#RF / 300#RF 1” PN 25 / PN 40 (Thread NPT Female only for 1’’) 2” 150#RF / 300#RF PN 25 / PN 40 3”... -
Page 6: Set Point Pressures
2.3.7 SET POINT PRESSURES Pressure regulators model ARGOS can use three pilot models for pressure control G80, G30F or G32F. The table below presents the adjustment ranges of each model:... -
Page 7: Slam Shut Valve Spring (Set Point)
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve 2.3.9 – SLAM SHUT VALVE SPRING RANGE (SET-POINT) SSV – ACTUADOR H SPRING COLOR PART NUMBER RANGE PURPLE 01.52.61 0.3 – 1.5 bar 01.52.62 1.0 – 5.0 bar YELLOW 01.51.54 4.0 –... -
Page 8: Pressure Regulators Dimensions
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve 2.3.11 PRESSURE REGULATOR DIMENSIONS DIMENSIONS (mm) A (RF) 300# / 150# / PN25, PN16 CLASS CLASS PN40 1” 2” 3” 4” General Tolerance = ±2 Elaborado Verificado / Aprovado Data Revisão... - Page 9 Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve DIMENSIONS (mm) A (RF) 300# / 150# / PN25, PN16 CLASS CLASS PN40 2” 3” 4” General Tolerance = ±2 Elaborado Verificado / Aprovado Data Revisão Página 13/02/19 9 de 32...
-
Page 10: Operation Principle
3.1 THE REGULATOR The pressure regulator Argos works by principle of drop pressure in the upper chamber (diaphragm of main valve). In the flow absence the pressure regulator stays close, because the pressure in the upper chamber of diaphragm (feed by the pilot), added to the spring force is superior to the pressure that acts below the diaphragm (inlet pressure). -
Page 11: Regulator - Active / Monitor System
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve 3.2 REGULATOR - ACTIVE / MONITOR SYSTEM In the active / monitor system, the regulator working principle is similar then previously explained. The upstream regulator (monitor) keeps in the open position, because the pilot sensing line monitors the active pressure regulator set point and, as its set point is lightly higher, the pilot keeps opened. -
Page 12: Pilots
This filter is designed to serve as the last barrier to solid contaminants. The ARGOS pressure regulators can be provided with an F-10 filter mounted in separate from the pilot unit, or in a compact version, with the filter element already coupled to the pre-regulator. -
Page 13: Security Shut-Off Valve
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve 3.5 SECURITY SHUT-OFF VALVE 3.5.1 PH ACTUATOR & H ACTUATOR The slam shut valve has two actuators models, one with a diaphragm (for pressures 1.0 – 11.0 bar) and other with a piston (for pressures 10.0 –... - Page 14 Position Indicator (closed position) Reset Lever The SSV is supplied in the closed position and with the actuator of under pressure blocking disarmed. The springs for over and under pressure blocking are adjusted in Gascat. Elaborado Verificado / Aprovado Data Revisão...
-
Page 15: Installation
Do not install insulating valves in the sensing line of pressure regulators. The pressure regulator model Argos needs only one connection to the process per valve, that is the sensing line of pilot, independently of system configuration (active / monitor, working monitor and only active regulator). Exception only for flow limiter that have two extra connections in the orifice plate. -
Page 16: Recommended Installation Scheme
2 – Cartridge filter Metrius with 5 micron 3 – Inlet pressure gauge 4 – Slam shut valve with fail close actuator model GIPS-FC 5 – Pressure regulator model ARGOS 6 – Partial pressure relief valve CH Relief 7 – Outlet pressure gauge 8 –... -
Page 17: Active / Monitor System
2 – Metrius cartridge Filter – 5 micron 3 – Inlet pressure gauge 4 – Slam shut valve with fail close actuator model GIPS-FC 5 – Monitor pressure regulator Argos 6 – Pressure gauge 7 – Active pressure regulator Argos 8 –... -
Page 18: System With Two Ssv And One Regulator
4 – Slam shut valve with fail close actuator model GIPS-FC 5 – Slam shut valve with fail close actuator model GIPS-FC 6 – Active pressure regulator model ARGOS 7 – Partial pressure relief valve model CH Relief 9 – Outlet pressure gauge 9 –... -
Page 19: Working Monitor System
3 – Inlet pressure gauge 4 – Slam shut valve with fail close actautor model GIPS-FC 5 – Pressure regulator valve model ARGOS WORKING MONITOR (1st stage of pressure reduction) 6 – Pressure gauge 7 – Pressure regulator valve model ARGOS (2nd stage of pressure reduction) 8 –... -
Page 20: Commissioning And Start-Up
Then, it Gascat recommends to check the using external pneumatic source connected directly in the actuator, before proceeding the stream pressurization. The regulator model Argos is not supplied adjusted. It tends to preserve the life time of internal parts. So that it is necessary to adjust the regulator prior to operation. -
Page 21: Stand By Line Adjustment
4.6.3 STAND BY LINE ADJUSTMENT When the pressure regulator is installed in a stand by line Gascat recommends to realize the same procedure of item 4.6.2, however the regulator set point shall be 15%~20% less than the regulator set point of working line. -
Page 22: Stand By Line Adjustment (Active / Monitor System)
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve 5) As there is no pressure downstream the regulator the slam shut valve GIPS-FC will be closed. So that press the by-pass or push button in the slam shut valve to pressurize the line between the slam shut valve and the pressure regulator. -
Page 23: Commissioning (Working Monitor System)
Utilizing as reference the assemblage scheme presented on item 4.5.4 proceed with descriptive indicate for commissioning of ARGOS pressure regulators in a stream where the configuration is working monitor, considering that the recommendations realized in the item 4.6.1 were totally observed. -
Page 24: List Of Recommended Tools
Argos - Pressure Regulating Valve 4.6.7 LIST OF RECOMMENDED TOOLS To carry out commissioning set point adjustments and start-up of the GASCAT’s regulators model ARGOS it is required only the use of a 7/8" combination spanner for setting up the pilot’s adjustment springs. -
Page 25: Trouble Shooting
(impurities), natural wear, and fault during the equipment operation. It is important to keep in mind that the operation and maintenance of GASCAT equipment should only be performed by highly skilled and trained personnel, preferably by teams trained by GASCAT’s instructors. -
Page 26: Maintenance
Before starting maintenance of GASCAT’s pressure regulators, you shall always assure yourself to have a replacement kit with original GASCAT parts, as well as this instruction manual for reference of how to work safely and efficiently during the equipment maintenance. -
Page 27: Recommended Repair Parts And Kits
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve 6.1 RECOMMENDED REPAIR PARTS AND KITS ARGOS POS. DESCRIPTION DIAPHRAGM O'RING O'RING Elaborado Verificado / Aprovado Data Revisão Página 13/02/19 27 de 32... - Page 28 Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve ARGOS SSV POS. DESCRIPTION DIAPHRAGM O'RING O'RING O'RING O'RING O'RING O'RING O’RING O’RING Elaborado Verificado / Aprovado Data Revisão Página 13/02/19 28 de 32...
- Page 29 Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve G30F/G32F PILOT POS. DESCRIPTION RELIEF DIAPHRAGM SHUTTER FILTER ELEMENT O'RING O'RING O'RING O’RING O’RING Elaborado Verificado / Aprovado Data Revisão Página 13/02/19 29 de 32...
- Page 30 Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve PILOT G-80 POS. DESCRIPTION QTY POS. DESCRIPTION RELIEF O'RING DIAPHRAGM O'RING DIAPHRAGM O'RING SHUTTER O'RING SHUTTER O'RING INTERNAL RELIEF O'RING FILTER ELEMENT O'RING GASKET O'RING O'RING O'RING O'RING O'RING Elaborado...
- Page 31 Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve Actuator SSV POS. DESCRIPTION QTY POS. DESCRIPTION RELIEF O'RING O`RING O'RING O`RING O'RING PARBAK RING O`RING O`RING DIAPHRAGM O`RING O'RING O`RING Note: 1) The item pos. 10 is not applicable to the H Actuator.
-
Page 32: Recommended Torques
Installation and Operation Manual MI-23 Argos - Pressure Regulating Valve 6.2 RECOMMENDED TOQUES When tightening fasteners arranged in a circular pattern, alternate the tightening of each fastener with the fastener directly across from it using a “star” criss-cross pattern for five times, until proper specified torque is achieved.
