Summary of Contents for Gascat ARES N

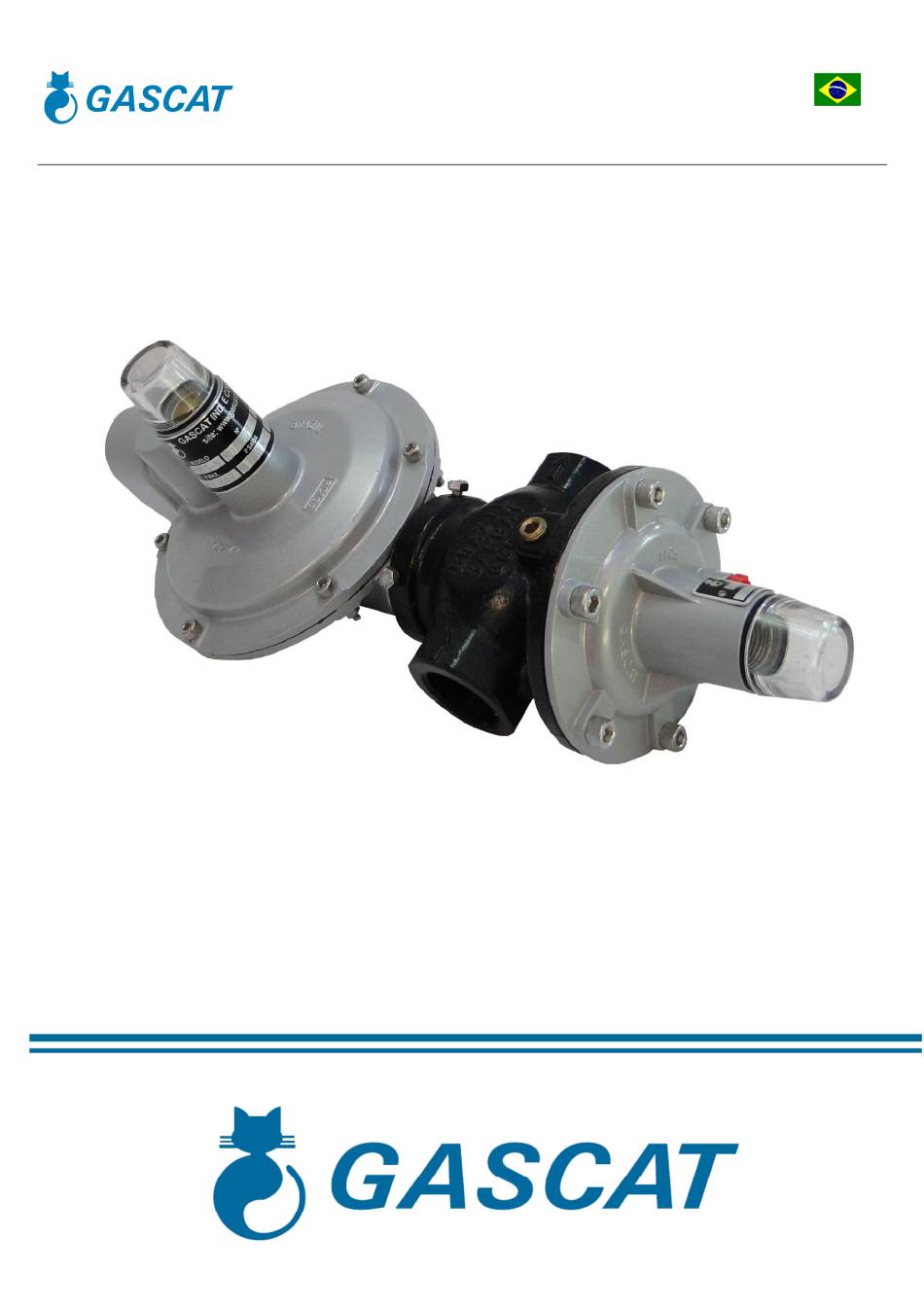

- Page 1 Installation, Operation & Maintenance Manual Pressure Regulating Valve Model ARES N...
-
Page 2: Table Of Contents
Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N TABLE OF CONTENTS 1.0 GENERAL WARNING 1.1 PRE-COMMISSIONING INSTRUCTIONS 1.2 - HEALTH & SAFETY 1.2.1 - NOISE 1.2.2 - INSTALLATION 1.2.3 - OPERATION 1.2.4. MAINTENANCE 2.0 INTRODUCTION 2.1 SCOPE... -
Page 3: General Warning
If there are any questions or ambiguities that affect the proper procedures ask Gascat Ind. e Com. Ltda., who will be pleased to advise or provide the relevant service or instruction. -
Page 4: Maintenance
This instruction manual intends to provide information on the installation, operation and maintenance of pressure regulators model “ARES N”, manufactured by GASCAT. 2.2 DESCRIPTION The pressure regulator series ARES N is self-operated type, designed for gases distribution with low pressure, for commercial and industrial applications, with main characteristics easy operation and maintenance. 2.3 SPECIFICATIONS 2.3.1 AVAILABLE CONFIGURATIONS... -
Page 5: Flow Rate Table
Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N Operation temperature: -20°C to 60°C Room temperature: -20°C to 60°C The temperature limits given in this manual or in any applicable standard shall not be exceeded under any circumstances, under risk of damage to the equipment, to the installation safety, and to the people involved in the operation. -
Page 6: Maximum Work Pressure
Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N NOTE: 1) Informed capacity based on a 20% drop. 2) GN fluid. Density 0.6 KG/m³. 3) Informed pressures in bar and flow rate in m³/h @ 1atm 20ºC. -
Page 7: Set Point Pressures - Ssv
3.0 - OPERATION PRINCIPLE 3.1 ARES N REGULATOR – BASIC INSTALLATION The pressure regulator series ARES N works by principle of direct spring action against sensor element of outlet pressure (diaphragm). The consumption variation and consequently change of pressure in the sensor element (diaphragm) will change diaphragm position and diaphragm lever that acts the shutter shaft, increasing or decreasing the valve passage in order to keep the outlet pressure constant. - Page 8 Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N ARES N Prepared by Verified by/ Approved by Date Revision Page José Junior Vanízio Lizo Jamerson 24/03/17 8 of 21...
-
Page 9: Installation
Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N 3.1 EMBEDED BLOCKING VALVE – MODEL G-10 Optionally, the pressure regulator can be provided with a built-in shut-off valve for overpressure, limited to 600 mbar. This is the model ARES N G-10. - Page 10 Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N 5) All necessary pressure-sensing pick-ups, downstream of the equipment pipeline, were provided respecting the dimensions recommended by the manufacturer. 6) A pressure gauge, or any other pressure-measuring device, was foreseen for the upstream and downstream of the equipment to allow for the correct setting up at the operation start-up.
-
Page 11: Recommended Installation Scheme
2 – Cartridge or basket type filter, model Metrius (or similar) 3 – Pressure gauge for inlet pressure reading; 4 – Pressure regulator with built-in shut-off valve for overpressure, ARES N + SSV model G10 5 – Partial pressure relief valve model JR LP 6 –... -
Page 12: Commissioning (Single Regulator Span)
Model ARES N valves are not sent to the field with adjusted set points; this measure tends to preserve the life of the equipment internals. - Page 13 Using, as a reference, the assembly scheme presented in item 4.5.1, proceed to the description on commissioning the regulator model Ares N in a span of simple regulation, considering that the recommendations made in section 4.6.1 of this manual have been properly observed.
-
Page 14: The Back-Up Line Set-Up
4.5.4 LIST OF RECOMMENDED TOOLS To carry out commissioning set point adjustments and start-up of the GASCAT’s regulators model ARES N it is required only the use of a special tool for setting up the regulator and the SSV G10 adjustment springs. -
Page 15: Trouble Shooting
(impurities), natural wear, and fault during the equipment operation. It is important to keep in mind that the operation and maintenance of GASCAT equipment should only be performed by highly skilled and trained personnel, preferably by teams trained by GASCAT’s instructors. - Page 16 Before starting maintenance of GASCAT’s pressure regulators, you shall always assure yourself to have a replacement kit with original GASCAT parts, as well as this instruction manual for reference of how to work safely and efficiently during the equipment maintenance.
-
Page 17: Recommended Repair Parts And Kits
Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N 6.1 RECOMMENDED REPAIR PARTS AND KITS ARES N + SSV POS. DESCRIPTION QUANTITY DIAPHRAGM O'RING O'RING O'RING SHUTTER SEAT Prepared by Verified by/ Approved by Date Revision Page José... - Page 18 Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N SSV G-10 POS. DESCRIPTION QUANTITY DIAPHRAGM O'RING O'RING O'RING O'RING PLATE VENT PLUG SHUTTER Prepared by Verified by/ Approved by Date Revision Page José Junior Vanízio Lizo...
-
Page 19: Procedure For Ares N Regulator Disassembly
Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N 6.2 PROCEDURE FOR ARES N REGULATOR DISASSEMBLY 1) Before proceeding with the equipment disassembly, check if all the conditions set out in item 4.6.1 of this manual have been observed. - Page 20 Installation, Operation and Maintenance Manual MI–42 Pressure Regulating Valve – Model Ares N 6) Remove the Top Cover screws (pos 5) and the Top Cover (pos 17 )of the actuator. Shutter (pos 29) 6.3 PROCEDURE FOR SSV G-10 DISASSEMBLY 1) Proceed by removing the Viewfinder (pos 20) and wtith a tool, remove the Spring Adjuster (pos 15).
-
Page 21: Procedure For Ssv G-10 Disassembly
(pos 3) and the SSV Shutter (pos 22). 6.4 PROCEDURE FOR REGULATOR ARES N ASSEMBLY To perform the assembly of the ARES N regulator, just follow the steps given in item 6.1 in reverse order, but some observations may help the task: When tightening the screws of the regulator, the tightening is always at 180º...
