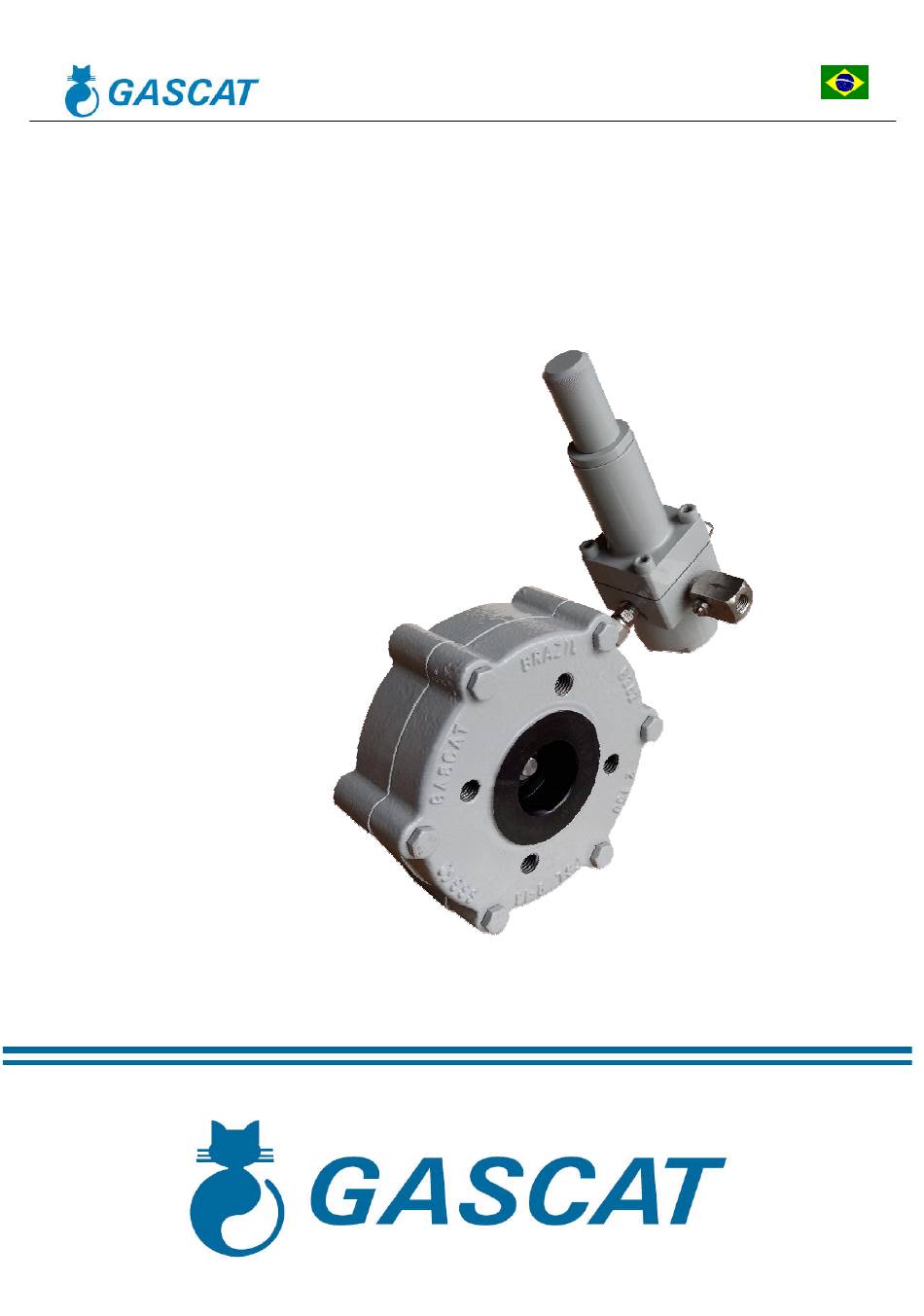

- Page 1 INSTALLATION & OPERATION MANUAL PRESSURE REGULATOR VALVE MODEL ARGOS WA...
-
Page 2: Table Of Contents
Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve INDEX 1 – INSTRUCTIONS PRIOR TO COMMISSIONING ................ 3 1.1 – SAFETY AND HEALTH ......................3 1.1.1 – NOISE ..........................3 1.1.2 – INSTALLATION ......................4 1.1.3 – OPERATION ........................4 1.1.4 –... -
Page 3: Instructions Prior To Commissioning
Instruction manuals are provided for orientation of the operators, but it is supposed that they have a basic knowledge level. If any doubts or ambiguities remain that could affect the proper procedures ask Gascat, which will be pleased to instruct, or to provide the suitable service or instruction. NOT TO TAKE ANY RISK. Our telephone, fax numbers, and e-mail are the following: Gascat Indústria e Comércio Ltda. -
Page 4: Installation
Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve 1.1.2 – INSTALLATION All equipment, piping, and vessels are designed to support mechanical efforts, as, for instance, torque and bending momentum, in addition to internal pressure. However, careful shall be exercised during installation not to develop excessive efforts, which can cause cracks that may result in serious breakage when the regulator is put into operation. -
Page 5: Introduction

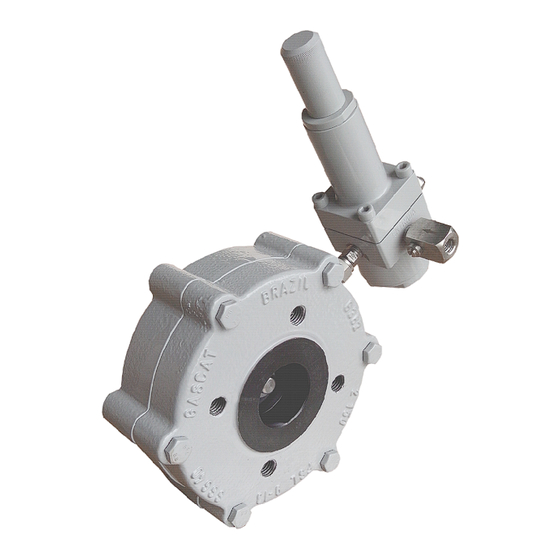

ARGOS WA pressure regulator manufactured by GASCAT. 2.2 – DESCRIPTION Argos Axial WA Series is a regulator designed by Gascat’s engineering, that is included into the pilot-operated pressure regulators family, to be applied with all gases. This wafer type regulator is developed with face-to-face short what allow an utilization with pressure regulating stations with few available space for installation;... -
Page 6: Available Connections
Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve 2.3.2 – AVAILABLE CONNECTIONS FLANGE ASME B16.5 1” 150#/300# 2” 150#/300# 3” 150#/300# 4” 150#/300# 2.3.3 – TEMPERATURE LIMITS Operating temperature: -20°C a 60°C Ambient temperature: -20°C a 60°C The temperature limits informed at this manual or in any applicable standard must not be exceeded under any circumstances, at risk of damage the equipment, safety of installation and safety of people involved in the operation. -
Page 7: Pressure Regulator Spring Range (Set-Point)
Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve 2.3.6 – PRESSURE REGULATOR SPRING RANGE (SET-POINT) G-80 PILOT SPRING COLOR PART NUMBER RANGE YELLOW / GREY 01.50.09 20 – 50 mbar BLUE 01.50.10 45 – 100 mbar WHITE / GREY 01.50.21G... -
Page 8: Pressure Regulator Dimensions
Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve 2.3.8 – PRESSURE REGULATOR DIMENSIONS Elaborado Verificado / Aprovado Data Revisão Página 03/09/18 8 de 20... -
Page 9: Operating Principle
Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve 3 – OPERATING PRINCIPLE 3.1 – THE REGULATOR The pressure regulator Argos works by principle of drop pressure in the upper chamber (diaphragm of main valve). In the flow absence the pressure regulator stays close, because the pressure in the upper chamber of diaphragm (feed by the pilot), added to the spring force is superior to the pressure that acts below the diaphragm (inlet pressure). - Page 10 Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve The upstream regulator (monitor) keeps in the open position, because the pilot sensing line monitors the active pressure regulator set point and, as its set point is lightly higher, the pilot keeps opened. The reason that this pilot stays opened is due of pressure under its diaphragm that added to the obturator spring that are lower than the regulating spring force that moves this obturator set downward opening the pilot.
-
Page 11: Pilot
3.3 – PILOT The pressure regulator model ARGOS WA manufacture by GASCAT use pilot the G-30 or G-80 model depending of the desired set-point. If the set-point is greater than 0.7 bar, applies the G-30. This pilot is responsible by the control of feed pressure of main regulator actuator and by consequence of the pressure regulator aperture. -
Page 12: Filter
Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve 4) The inlet and outlet pipe connections are in the same level. 5) All connections for sense line and discharge line requested by the model of pressure regulator are arranged in the pipeline and respect the dimensions provided by manufacturer. - Page 13 Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve Elaborado Verificado / Aprovado Data Revisão Página 03/09/18 13 de 20...
-
Page 14: Operation (Start Up)
7) Make sure that the SSV is in the shut position. ATTENTION: GASCAT’s SSV are sent to the field already calibrated, however, depending on transport conditions and the equipment handling the valve may have its set point changed. -
Page 15: Pressure Regulator Adjustment
Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve 1) Close slowly the on-off manual valve upstream of regulator. 2) Close slowly the on-off manual valve downstream of regulator. 3) Certify that the springs of pre pilot and pilot are totally released. -
Page 16: Troubleshooting
6 – TROUBLE SHOOTING To maintain the pressure regulator in the correct conditions of operation, the pressure regulators model ARGOS WA must be submitted to preventive maintenance, the periodicity depends of the flow, quantity/type of contaminants and the operation conditions. -
Page 17: Storage
Gascat's technical department that will give you proper guidance. 3) Gascat supplies, on request, a complete replacement kit. 10 – COMPONENTS & SPARE PARTS Find below the components positions and spare parts components of ARGOS WA, G-30 PILOT and G-80 PILOT. Elaborado Verificado / Aprovado Data Revisão... - Page 18 Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve POS. DESCRIPTION DIAPHRAGM O’RING O’RING O’RING O’RING Elaborado Verificado / Aprovado Data Revisão Página 03/09/18 18 de 20...
- Page 19 Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve G-30 PILOT → CODE: 28.20.41F POS. DESCRIPTION DIAPHRAGM RELIEF SHUTTER FILTER ELEMENT O'RING O'RING O'RING O’RING O’RING Elaborado Verificado / Aprovado Data Revisão Página 03/09/18 19 de 20...
- Page 20 Installation and Operation Manual MI-44 Argos WA - Pressure Regulating Valve G-80 PILOT → CODE: 28.21.28A_KIT POS. DESCRIPTION QTY POS. DESCRIPTION RELIEF O'RING DIAPHRAGM O'RING DIAPHRAGM O'RING SHUTTER O'RING SHUTTER O'RING INTERNAL RELIEF O'RING FILTER ELEMENT O'RING GASKET O'RING O'RING...
