ENSURE THE UNIT IS COMPLETELY COOL BEFORE STARTING INSTALLATION
NOTE: The individual hearth pads can be easily identifi ed by the numbers cast on the underside of each pad.
NOTE: The pilot assembly is located on the right end in these instructions.
A.
Locate the 2 latches on the top of each side door.
B.

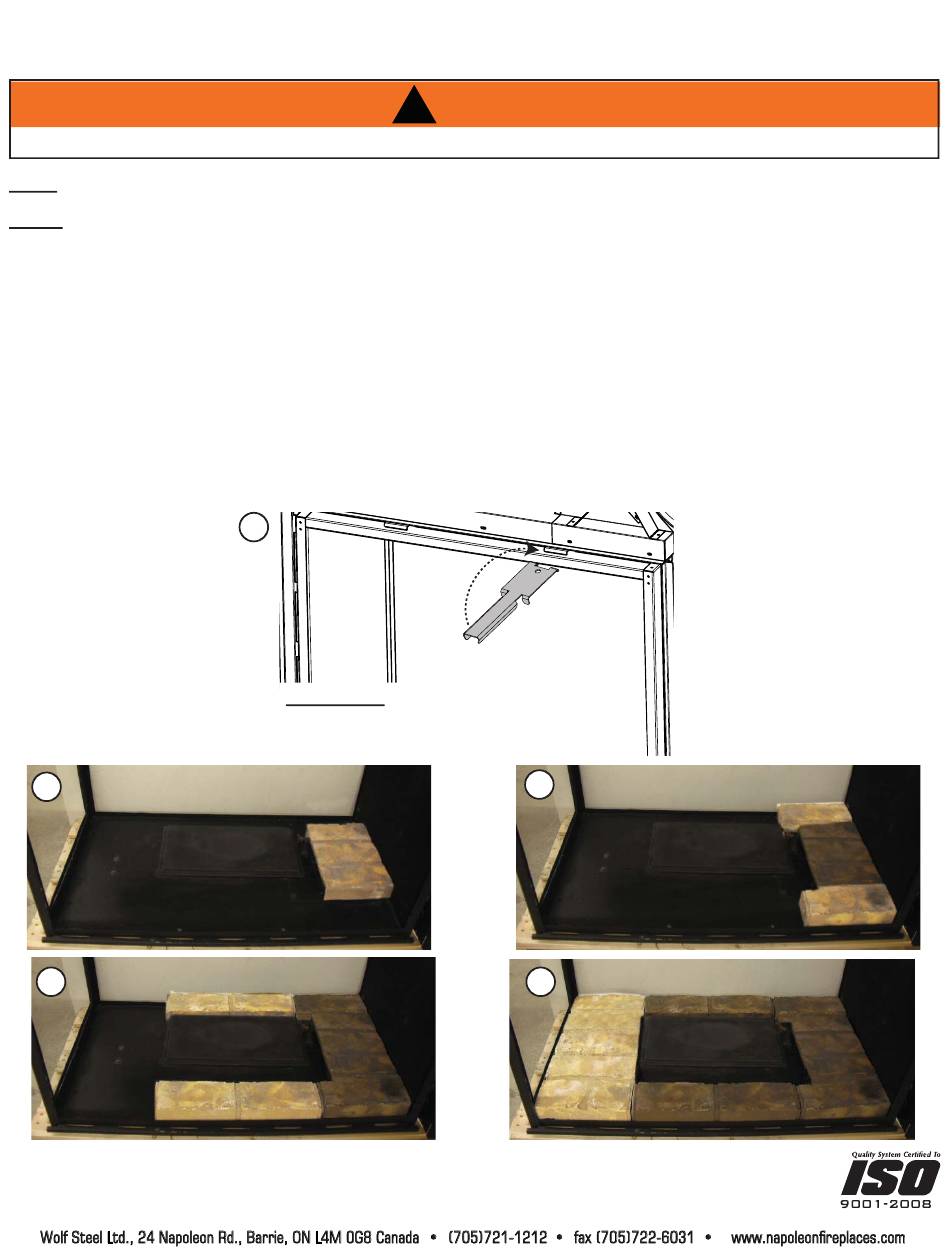

Using the tool provided, pull the latch forward and upwards, out of the slot in the door, as shown in Figure A.
Ensure to keep one hand on the door at all times, to prevent it from falling on the fl oor. When both latches have
been released tilt the door forward and out of the bottom door retainer.
C.
Place the #3 hearth pad on the pilot side of the burner, as shown in Figure B.
D.
Place the #1A hearth pad on the right side and the #1 hearth pad on the left side of appliance, as shown in
Figure C.
E.
Place the two #2 hearth pads on the right and left sides, as shown in Figure D.
F.
Place the #4 hearth pad on the left end, as shown in Figure E.
G.
Replace the glass door. Ensure all of the latches are secure and door moves freely against pring pressure.
B
D
HEARTH PAD (HP4)
INSTALLATION INSTRUCTIONS
!
A
IMPORTANT: Once latches are engaged,
test that the door is secure and will not
fall forward before letting go.

WARNING

C
E
W415-1167 / 12.10.12
