FCC ID: K6610573X20
IC ID: 511B-10573X20
Operating Manual
VXA-300 Operating Manual
Introduction

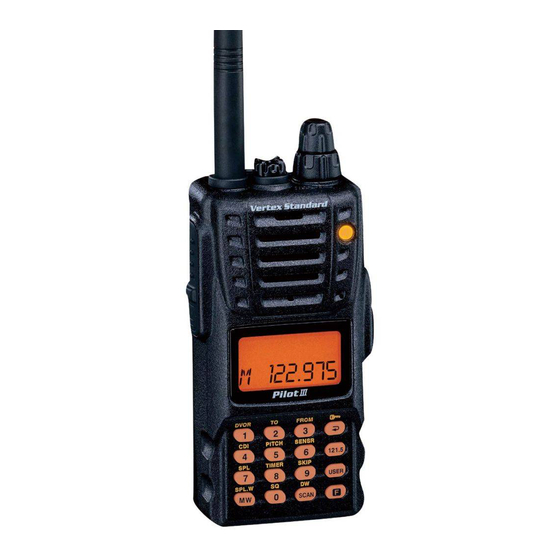

The Vertex Standard VXA-300 is a compact, stylish, solid hand-held transceiver providing
communication (transmit and receive) capability on the International Aircraft Communication
Band ("COM" band: 118 ~ 136.975 MHz), and it additionally provides VOR and CDI
navigation features on the "NAV" band (108 ~ 117.975 MHz). What's more, it also is
receiving on the Amateur Radio 144 MHz band.
The VXA-300 provides a 36-mm diameter Loudspeaker which outputs the 0.8 Watts audio
power from the internal speaker, and it also provides an 8.33 kHz synthesize step for the
newly narrow band channel plan.
The VXA-300 includes Temperature and Supply Voltage display with our exclusive Omni-
Glow
TM
display back-light for minimal degradation of your night vision, NOAA weather band
monitoring, 8-character Alpha/Numeric Display, 150 Memory Channels, and 100 "Book
Memory" Channels.
We recommend that you read this manual in its entirety, so as to understand the many
features of the VXA-300 completely. Keep this manual handy, so you may use it for
reference.
NOTE: The VXA-300's VOR and CDI Navigation features are supplemental aids to
navigation only, and are not intended to be a substitute for accurate (primary) VOR/CDI or
landing service equipment.
Congratulations!
You now have at your fingertips a valuable communications tool-a Vertex Standard two-way
radio! Rugged, reliable and easy to use, your Vertex Standard radio will keep you in
constant touch with your colleagues for years to come, with negligible maintenance down-
time.
Please take a few minutes to read this manual carefully. The information presented here will
allow you to derive maximum performance from your radio, in case questions arise later on.
We're glad you joined the Vertex Standard team. Call on us anytime, because
communications is our business. Let us help you get your message across.
1/21
Vertex Standard Co., Ltd.

Advertisement

loading

Related Manuals for Vertex Standard VXA-300

Summary of Contents for Vertex Standard VXA-300

  • Page 1 Memory” Channels. We recommend that you read this manual in its entirety, so as to understand the many features of the VXA-300 completely. Keep this manual handy, so you may use it for reference. NOTE: The VXA-300’s VOR and CDI Navigation features are supplemental aids to navigation only, and are not intended to be a substitute for accurate (primary) VOR/CDI or landing service equipment.

  • Page 2: Important Notice

    Never connect any Speaker/Microphone that is not recommended by the manufacturer. Because these jack connections are unique, using a Speaker/Microphone that is not specified by Vertex Standard may damage the VXA-300. POWER/VOLUME (Inner) Knob Turn this (inner) control clockwise to turn the radio on and to increase the volume.
  • Page 3 Activates “Secondary” key mode. Cancel the “Secondary” key None mode of the [F] key. *: The primary and third function of the [USER] key may be customized by user via Menu mode. See page ?? for details. 3/21 Vertex Standard Co., Ltd.
  • Page 4 Do not connect this radio directly to any 24 ~ 28 Volt DC source, nor to AC power of any kind. Connecting the VXA-300 directly to a source which exceeds 15.0 Volts DC will result in damage to the unit.
  • Page 5 Installing the FBA-25 (option) Alkaline Battery Case The optional FBA-25 Battery Case allows operation of the VXA-300 using six “AA” size Alkaline batteries. When installing batteries, insert the (–) end first, then press in the (+) end so the battery snaps into place.

  • Page 6: Squelch Adjustment

    2-m Amateur bands using the DIAL selector, the Keypad, or the scanner. MR (Memory Recall) The MR (Memory Recall) mode of the VXA-300 provides the user with the ability to store and recall as many as 150 channels in the radio’s main memory bank. These memory channels may also be labeled by you with an alpha/numeric name of up to 8 characters in length, to aid in quick identification of the channel.
  • Page 7 Weather Channel mode. In the Weather Channel mode, “- WX -” will appear on the display. The VXA-300 will now scan quickly through the ten standard Weather Channels, and will stop on the first active station found. If there are two or more weather channels audible in your area, you may select the alternate channel(s) by pressing the PTT switch.
  • Page 8 You may choose the lockout combination to your desired. See page ?? for details. Receive Battery Saver Setup An important feature of the VXA-300 is its Receive Battery Saver, which “puts the radio to sleep” for a time interval, periodically “waking it up” to check for activity. If somebody is talking on the channel, the VXA-300 will remain in the “active”...
  • Page 9 NAV and COM bands, and 5/10/12.5/15/20/25/50 kHz per step for the 2 m amateur band. The VXA-300 is set up the default channel step to “25 kHz” (NAV, COM and 2 m amateur bands). If you need to change the channel step increments the procedure to do so is very easy.
  • Page 10 PTT key exit to normal operation. PA Operation The PA mode allows the VXA-300 to be used as a Public Address System when an optional MH-44A4B Microphone is connected. Note: If you wish to operate the PA mode, change the [USER] key assignment to the “PA”...
  • Page 11 Memory System Operation The VXA-300’s Main Memory system allows the user to store, label, and recall channel frequencies which you may want to use frequently. You may store VFO frequencies, Book Memory frequencies, and/or Weather Channel frequencies (USA version only) into the Main Memory system.
  • Page 12 To stop the automatic scanner, press the PTT switch or the VOLUME knob momentarily. You may also just press the [SCAN(DW)] key. The VXA-300’s automatic scanner is not operational in the NAV band (108.000 - 117.975 MHz), because the NAV stations (ILS, etc.) transmit constantly (thereby causing the scanner to stop repeatedly).
  • Page 13 The Dual Watch feature automatically checks for activity on a “priority” channel* while you are operating on another channel. During Dual Watch operation, the current channel and the Priority channel will each be polled for a 500 ms interval, as the VXA-300 looks for activity on each channel.
  • Page 14 To return to the DVOR mode, press [F] [1(DVOR)]. Entering a Desired Course The VXA-300 can also be configured to indicate the deviation from the desired course, not only the deviation from the path to the VOR station. Set the frequency to the desired VOR station.
  • Page 15 Field Programming Mode The VXA-300’s Book Memories also allow the user to store, label, and recall channel frequencies which you may want to use frequently while the VXA-300 is in the Field Programming mode. Memory Storage into the Book Memory Press and hold the PTT and VOLUME knob while turning the radio on, to activate the Field Programming Mode.
  • Page 16 We do not recommend that any of the default settings be changed, however, until you are thoroughly familiar with the operation of the VXA-300. Press the [F] key, then press the VOLUME knob to activate the Menu (“SET”) mode.
  • Page 17 Function: Selects the Dual Watch/Priority Function. Available Values: DW/PRI Default Setting: DW “DW” mode: The VXA-300 will activate the Dual Watch feature when you press [F] [SCAN(DW)]. “PRI” mode: The VXA-300 will activate the Priority feature when you press [F] [SCAN(DW)].
  • Page 18 Function: Programming the third (press and hold mode) [USER] key assignment. Available Values: no/ANL/PA/EQ Default Setting: EQ See page ?? for details. 20 [WXAF] Function: Selects the Alert functions when receiving the Weather Alert Signal on the WX channel. 18/21 Vertex Standard Co., Ltd.
  • Page 19 30 [STEP] Function: Selects the synthesizer step on the Air band. Available Values: 25 kHz/8 kHz Default Values: 25 kHz 31 [EQLZ] Function: Selects the equalizer (tone control) circuit of the audio amplifier in the receiver. 19/21 Vertex Standard Co., Ltd.

  • Page 20: Accessories And Options

    Antenna Adapter (SMA to BNC) Availability of accessories may vary. Some accessories are supplied as standard per local requirements, while others may be unavailable in some regions. Consult your Vertex Standard Dealer for details regarding these and any newly- available options.
  • Page 21 FCC ID: K6610573X20 IC ID: 511B-10573X20 Operating Manual Part 15.21: Changes or modifications to this device not expressly approved by Vertex Standard could void the user’s authorization to operate this device. 21/21 Vertex Standard Co., Ltd.
