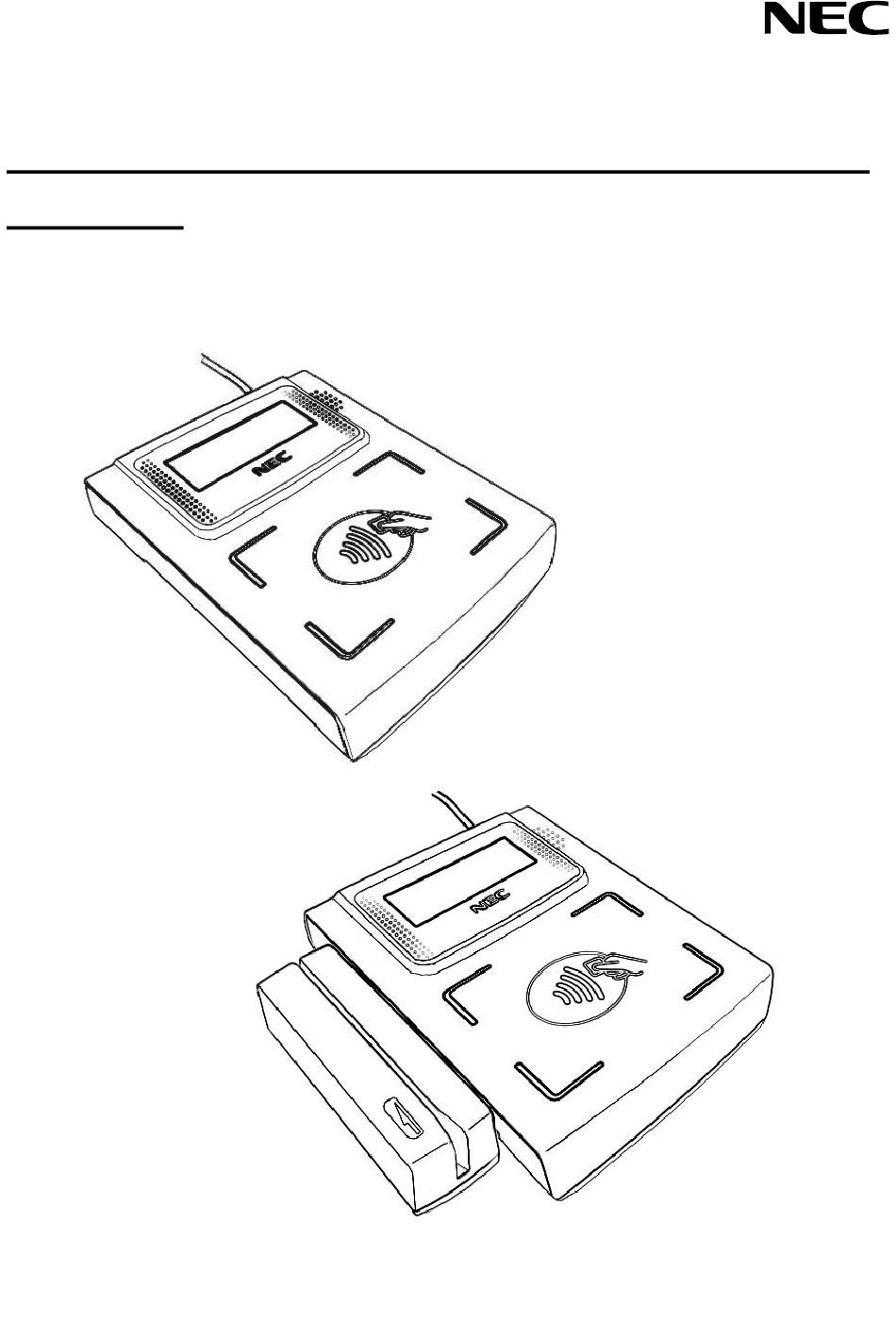

- Page 1 Versatile Terminal for E-money systems VRW-06 User’s Manual Thank you for purchasing "Versatile Terminal for E-money systems VRW-06" Read this manual carefully before using to confirm correct performance.
-
Page 2: Table Of Contents
Table of Contents Introduction ............................2 Read This First ............................. 4 For Your Safety ............................. 5 1. Before Use ............................8 Accompanying Items ........................8 Parts and Functions Overview ..................... 9 2. How to use ............................10 How to connect with Host Terminal via USB ................10 How to supply Power ........................ -
Page 3: Introduction
Introduction This manual explains basic functions and operations of Versatile Terminal for E-money systems VRW-06. Store this manual in a place where it can be referenced to whenever needed. Copyright and Publishing Statements This manual must not be reprinted in part or whole without permission. - Page 4 Communication Commission Interference Statement Federal This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device should not cause harmful interference, (2) It may receive interference from outside. Outside interference may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 5: Read This First
Read This First [About the Symbols] The symbols and the equipment illustrations in this manual are for safe usage of the equipment. To prevent any harm to the customers, please note the symbols carefully. The symbols and their meanings are described below. Please make sure you are aware of the meanings of the symbols when reading this manual. -
Page 6: For Your Safety
For Your Safety Warning Away from Pacemaker Persons with implanted cardiac pacemakers should be at least 22cm away from this equipment. Do Not Use in Prohibited Areas Do not use this product near person using medical equipments such as cardiac pacemakers or hearing aids. Electrical waves from this equipment are much lower than that of mobile phones. - Page 7 For Your Safety Warning Keep Away from Fire Do not use this equipment near gas or other flammable materials. It may cause fire or explosion. Do Not Touch with Wet Hands Do not unplug the cable with wet hands. It may cause electric shock. Regarding Disposal When disposing of this product, do not incinerate it or throw it into the fire.
- Page 8 For Your Safety Avoid Strong Shock Avoid banging or dropping items such as canned goods or bottles on the reading surface of Contactless IC card reader. This action may cause damage to the equipment. Do Not Pour any Type of Liquid. Do not pour any type of liquid such as water on the equipment.
-
Page 9: Before Use
Accompanying Items The following items are included with your Versatile Terminal for E-money systems kit. Please confirm all the items are in the package. Reader Writer Main Unit (VRW-06) Magnetic Stripe Card Reader Unit (VRW-06-MSR) ※Depending on the model, this may or may not be included. -
Page 10: Parts And Functions Overview
Use this part when connecting to PINPAD. ⑥ ⑦ Use this part when connecting to host equipment and LAN cable. Connect the AC adapter here ⑧ Attached to VRW-06-02 ⑨ Swiping the magnetic stripe card through this part, reads the card. -
Page 11: How To Use
2. How to use How to connect with a Host Terminal via USB Please install and set up the driver on a host terminal before connecting. Please contact your retailer for more details. Confirm the directions of the USB cable and connect it to the USB port of the host terminal. It is recommended to close all other applications when connecting to the host terminal. -
Page 12: How To Use Contactless Ic Card
How to use Contactless IC Card You may use Contactless IC Cards and mobile phones that are equipped with the Contactless IC Card Function with this terminal. - How to read the Contactless IC Card Cover and tap the Contactless IC symbol in the center of the card reader with the IC card. - How to read a mobile phone equipped with the Contactless IC Card Function Cover and tap the Contactless IC symbol in the center of the card reader with the mobile phone. -
Page 13: How To Use Ic Card Reader
How to use IC Card Reader You may use your Contact IC Card with this equipment. - How to insert the Contact IC Card. Insert the Contact IC Card into the slot with the gold chip facing upward and pointing toward the insert direction until it is fully inserted. -
Page 14: How To Use Magnetic Stripe Card Reader
How to Use Magnetic Stripe Card Reader With this equipment, you may use magnetic stripe card on the model which accompanies the magnetic stripe card reader unit. - How to Read the Magnetic Stripe Card Reader Position the magnetic stripe card down and facing toward the main unit and insert it into the （Note１) end of the card reader slot then swipe it completely from one end to the other, as shown in the... -
Page 15: Cleaning
3. Cleaning Cleaning the Product Cleaning methods of the main unit and important notes. - Main Unit For daily cleaning, use a soft, dry and clean cloth to wipe stains off. For stubborn stains, use a soft, well squeezed wet cloth to wipe stains off. Do not use volatile organic cleaners such as benzene, thinners etc. -
Page 16: How To Insert/Remove Sam Card
4. How to insert/remove SAM card How to insert/remove SAM card Turn your terminal over and take out the two screws with a screwdriver, as shown in the diagram below. You need a special screwdriver so please refer to the retailer with whom you purchased your terminal. - Page 17 4. Insert the SAM card as shown below. (Position the notches and indentations in the correct direction.) 5. Close the SAM slot and slide it into place as shown below. 6. Return the back panel with the screws that were removed in step 1. That is all there is to inserting the SAM card.
-
Page 18: Troubleshooting
5. Troubleshooting If you have any trouble, refer to the solutions below. Troubles Check point Page Check the AC Adapter connection. The power does not turn on. P.11 Contactless IC Cards or mobile Please make sure you are placing the card or the phones equipped with the mobile phone in the right spot. -
Page 19: Specification And Regulation
― 164.9(W) 173.9(D) × × 129.8(W) 173.9(D) × × Dimensions 37.4(H) mm 37.4(H) mm (Include VRW-06) About Weight About (Include VRW-06) Temperature From 0 to 35 [℃] ― Operation Environment Humidity From 20 to 80 [%] ― Temperature From -20 to 40 [℃] ―... - Page 20 Versatile Terminal for E-money systems VRW-06 User’s Manual 1st edition, published in May, 2013 NEC Corporation 5-7-1, Shiba, Minato-Ku, , Japan Tokyo Zip code: 108-0014 (81)3-3454-0011 ( Representative NN-UBQ-QMSR13-0001...
