NEC TWINPOS G3 Quick Reference Manual

TWINPOS G3
Quick
Reference
Guide
Specifications
System
CPU Intel Atom
®
Chipset Intel ICH8M
®
Memory 1 x DDR3 DIMM socket, default at 1GB (Up to 2GB)
Storage 1 x 3.5" HDD
Power Supply 220W (AC Input: 100-240V, 4-2A, 60-50Hz)
Weight 4.38kg
Dimension (WxHxD) 300 x 94 x 270 mm (without cable cover)
300 x 94 x 350 mm (with cable cover)
Accessories 4 x Rubber foot, 1 x Cable clamp kit, Quick Reference Guide
(English/ Spanish/ Chinese), AC cordset (optional)
I/O Ports
Audio Line-in/ Line-out/ MIC
USB 4 x USB 2.0
VGA 1 x VGA
Serial Ports 4 x COM ports (2 powered COM, 5/12V selectable, Max.1A)
Parallel 1 x Parallel port (SPP/ EPP/ ECP)
PS/2 2 x PS/2 ports (Keyboard, Mouse)
LAN 1 x RJ45, 10/100/1000 Mbps
1 x RJ11 (12V/24V, Max.1A, at 24V)
Cash Drawer
DC Out 1 x DC jack (12V, Max.3A)
PCI Expansion Optional to support 2 PCI slots
Environment
Operating Temp. 0 ~ 40 ℃
Storage Temp. -20 ~ 60 ℃
20% ~ 90%
Humidity
"Perchlorate Material － special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate."
Manual Ver 1
© NEC Infrontia Corporation
TWINPOS G3
processor D525 1.80GHz
TM

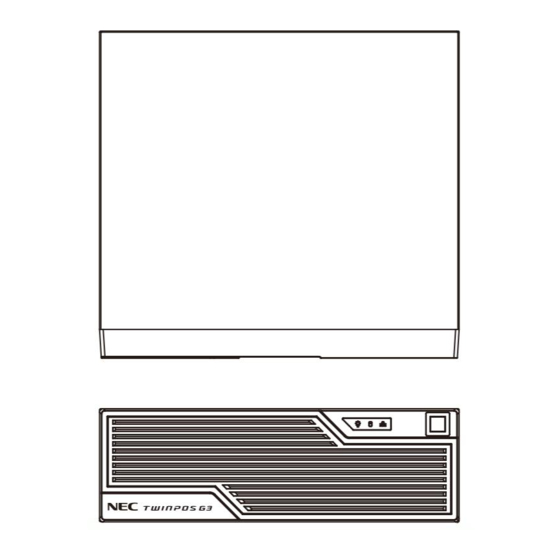

System View
Without Cable Cover
300
With Cable Cover (Optional)
300
2012
Front Panel
Front Panel
LED Icon
HDD LAN
Power
Access Connection
(Green) (Red) (Orange)
Installation
Installation
100mm
100mm
Caution:
1. Do not block the front side of the product.
2. Be sure to leave at least a 100mm gap between the
back side of the product and the wall for heat
dissipation.
3. Be sure to leave at least a 100mm gap
between both sides of the product and
the wall for heat dissipation.
94
270
94
350
I/O Ports
I/O Ports
Cash Drawer VGA LAN (RJ45)
(RJ11)
Power Switch
From up to down:
4 x USB2.0
COM4
COM3
COM2
COM1
From left to right:
PS/2 (Mouse)
PS/2 (Keyboard)
Jumper Setting/ Connector Location
Jumper Setting/ Connector Location
COM3 RI/Voltage
COM3 RS232/422/485
Selection (JP_COM3)
Selection (JP6)
6 5 6 5
6
9 1 9 1 9 1
10 2 10 2 10 2
2 1 2 1 2
RS232 RS422 RS485
RI 12V 5V
(Default)
(Default)
AUDIO1
JRJ45USB1 JRJ45USB2 KB1
2 3 1 4 5
1 2
3
22 23 24 25
5
A4 A1 A4 A1
32 33 34 35 B4 B1 B4 B1 11
6
42 44 1 9 1 9
1
2 10 2 10
VGA1
JP_COM3
6
2
9
100mm
10
BAT1
JP5 JP6
7 1
JP9
8 2
1
JP1
PCI1
Intel
ICH8M
1 2
JP4
SATA1
3 4
L_LED1
1 7
1 2
SATA2
1 7
Clear CMOS
Reset/ NMI Connector Location (JPANEL1)
Data Selection
Watchdog Selection
11
(JP1)
(JP4) 12
HDD LED
1 2 1 2
3 4 3 4
11 1 11
1 1
12 2 12
Reset NMI
Keep Clear
Reset (Reserved) Power Button
(Default)
CMOS CMOS
(Default)
TWINPOS G3
Unit: mm
TWINPOS G3
Parallel Port
PCI slots
DC Out (12V)
From up to down:
Line-in
Line-out
MIC
Cash Drawer
COM3 RS232/422/485
Voltage Selection
Selection (JP9)
(JP8)
5
1 1 1 1
1
RS232 RS422/485
24V 12V
(Default) (Default)
MS1
1 2
4 3 4 9 6
1 5
6
1 5 1
6 5 6
2 6
15
15 18
DRW1
5 10 14 10
10
5 JD09M1
JP8
COM3
1
5
JP_COM4
5 1
6 2
1
JP7 JPANEL1
1 10 5
11 1
1
2
COM4
2 12 2
1
6
1
2
1 14
CPU_FAN1
1
LPT1
Intel Atom
D525
13 26
DIMM1
SYS_FAN1
1
ATX_PWR1
20 11
10 1
COM4 RI & Voltage
Selection (JP_COM4)
1
1 11
12 2
2
Power LED 5 1 5 1 5 1
6 2 6 2 6 2
1 11 1
RI 12V 5V
2 12 2
Speaker
