Internal connectors

1.

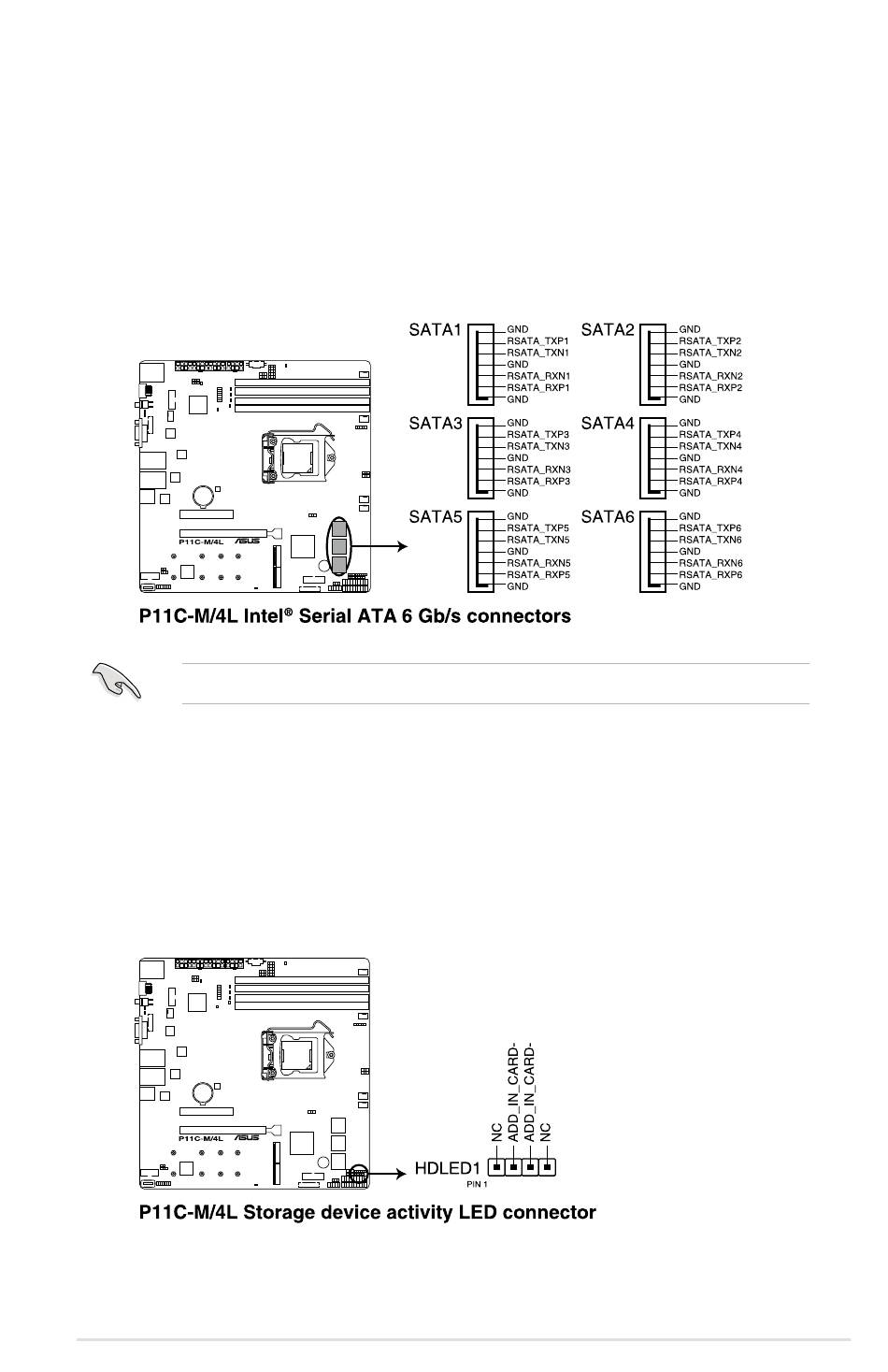

Serial ATA 6.0 Gbp/s connectors (7-pin SATA 6Gbps_1-6)

Supported by the Intel
cables for Serial ATA hard disk drives that allows up to 6Gb/s of data transfer rate.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 10,
or RAID 5 configuration.
The actual data transfer rate depends on the speed of Serial ATA hard disks installed.
2.

Hard disk activity LED connector (4-pin HDLED1)

This LED connector is for the storage add-on card cable connected to the SATA or
SAS add-on card. The read or write activities of any device connected to the SATA or
SAS add-on card causes the front panel LED to light up.
ASUS P11C-M/4L
®
C242 chipset, these connectors are for the Serial ATA signal
2-29
