Poweramp PowerHook Installation Overview

I

PREPARATION

1. Some units are shipped with the control assembly, bumpers, and outside signal light
assembly attached to the unit. Remove these items from the unit prior to installing unit in pit. DO +-
NOT remove the shipping bands at this time.
2. Remove all debris from the pit.
3. Check the pit dimensions with the certified Pit Drawing. Make sure that the walls of the pit
are plumb and square with no bulges. Make sure the dock height, the location of the plates
imbedded in the pit, and the location of the junction box are as specified on the Pit Drawing.

INSTALLING UNIT IN PIT

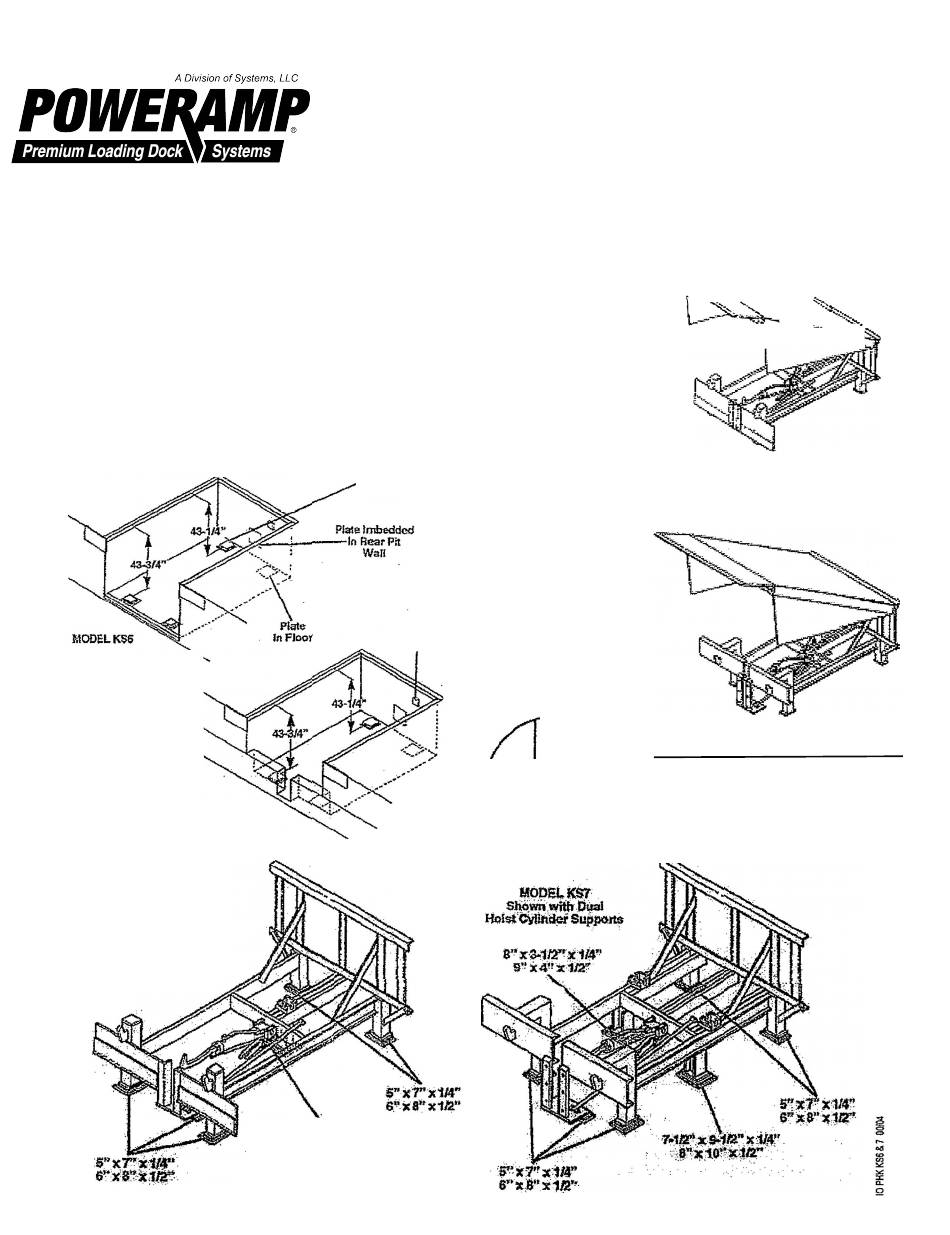

4. Place the shims for the front and rear legs on the plates imbedded in the pit floor. Position
the shims so that the legs will rest firmly on the shims when the unit is lowered into the pit. Shim
so that dimension from top of shims to dock floor is as shown in Figure 1 Recommended shim
stock sizes are given in Figure 2.
Figure 1
MOPS..1<$6
$hown with Single
Suppon
lwl$t.Cylindor
PowerHook Installation Overview
For comprehensive installation instructions of the PowerHook read and understand the
Installation and Operation Manual.
Additional installation procedures not given in this overview are required if the unit is part of
a CENTRAPOWER system or if the unit has a power pack mounted in a location that is
remote from the unit.
Stack Shims
to Height
Shown
Electrical
Junction Box
MODEi. KS7
7-1/2'":x Ml.?.")( 114"
a,,,.
1rr•,012.··
Typical
Shims
Figure 2
Installation Overview For:
. ---,. - - , - - - ------·--
,
_
_
,:,
,
�
�:·--.... .. . . . --�
'<a:.-=:::::- ::-�
.:
---
PowerHook
Full Pit Depth Stand Mounted (KS6)
PowerHook
Recessed Front Stand Mounted (K57)
