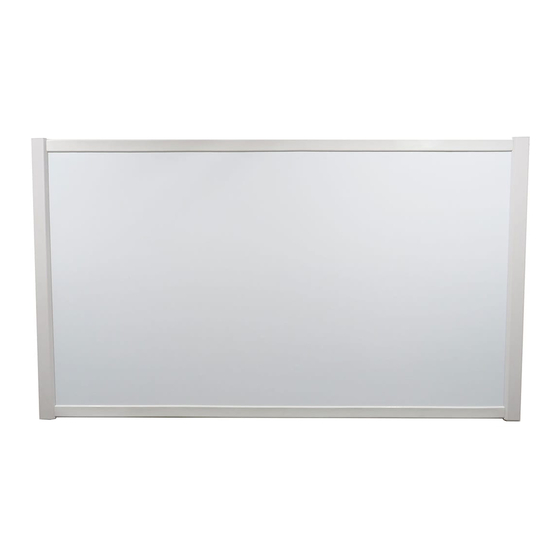

Optoma PCT-101 User Manual
  1. Manuals
  2. Brands
  3. Optoma Manuals
  4. Projector Accessories
  5. PCT-101
  6. User manual

Optoma PCT-101 User Manual

Roll type pct interactive roll
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Roll Type PCT User Manual
PCT Interactive Roll User Guide
2017/05/25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCT-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optoma PCT-101

Summary of Contents for Optoma PCT-101

  • Page 1 Roll Type PCT User Manual PCT Interactive Roll User Guide 2017/05/25...

  • Page 2: Table Of Contents

    Roll Type PCT User Manual Table of Contents PRECAUTION ............................................3 1. PRODUCT INTRODUCTION ......................................... 5 1-1 Specifications ..........................................6 1-2 Computer Requirement ......................................7 1-3 Operation System Requirement ....................................8 1-4 Environment Requirement ......................................8 2. PROJECTOR AND PCT INSTALLATION ASSESMENT ................................11 3.

  • Page 3: Precaution

    Roll Type PCT User Manual PRECAUTION • Assembly or disassembly of Roll type PCT product should be only performed by professional installers • Roll type PCT Product is an indoor use only product, long-term exposure of the sunlight or in humid environment might damage the Roll type PCT •...
  • Page 4 Roll Type PCT User Manual Maintenance: If necessary, gently clean the Roll type PCT Product with a microfiber cloth and Clean water. Dampen a microfiber cloth with a clean water then wipe the screen gently until ink is wiped clean, then use another clean and dry microfiber cloth to wipe whole surface again. If using the whiteboard cleaner for cleaning, users need to take a clean and dry microfiber cloth to wipe whole surface until the solvent is removed.

  • Page 5: Product Introduction

    Roll Type PCT User Manual 1. PRODUCT INTRODUCTION PCT interactive whiteboard is a series multi-touch giant electric whiteboard to be associated with computer, projector and software providing education and corporate a total collaboration solutions. The image will be projected to PCT via projector, also, the touch function will be enabling through USB cable which is connected to the device (computer, tablet, etc.), therefore, this simply makes projector, device, PCT a touch system.

  • Page 6: Specifications

    Roll Type PCT User Manual 1-1 Specifications  101” ROLL TYPE PCT 項目 規格 Size 101” (16:9), 2248 x 1295 mm Touch Sensor Size 94” (16:9), 2096 x 1174 mm Touch Tech Projected Capacitive Touch Touch Points 30 points Report Rate >100Hz ≦100 ms Latency...

  • Page 7: Computer Requirement

    Roll Type PCT User Manual  138” ROLL TYPE PCT 項目 規格 Size 138” (16:6), 3282 x 1295 mm Touch Sensor Size 132” (16:6), 3130 x 1174 mm Touch Tech Projected Capacitive Touch Touch Points 30 points Report Rate >100Hz ≦100 ms Latency Accuracy...

  • Page 8: Operation System Requirement

    Roll Type PCT User Manual 1-3 Operation System Requirement Windows MAC OS X Chromebook Android OS Version Win7; Win8; Win10 10.9; 10.10; 10.11 51.0.2704.103(64-bit) (Kernel version 4.0+) Touch Points 30 points Single (Limited by MAC OS 16 points (Limited by 10 points (Limited by Chrome OS) Android OS)
  • Page 9 Roll Type PCT User Manual Roll type PCT installation should be 30cm away from the water leaking source such as an opened window, a faucet, and should be 30cm away power switch and 50cm away from transformer box to prevent interference. Wall surface requirement 2.1 Non-flatness: Suggest non-flatness (d) is less than 10mm for better user experience.
  • Page 10 Roll Type PCT User Manual PCT should not be installed on a brick wall directly as the gap between bricks because floating PCT will impact capacitor field, which might result in error touch event. When installing on a brick wall is necessary, it is suggested to attach a non-metal hard board with 2-3mm thickness to the brick wall first, then install the roll type PCT.

  • Page 11: Projector And Pct Installation Assesment

    Roll Type PCT User Manual 2. PROJECTOR AND PCT INSTALLATION ASSESMENT Please kindly be aware of the height between ROLL bottom and ground before installing, too high or too low will cause inconvenience for users while using, the suggested height is as following, For children: the height between ground and ROLL bottom is suggested to be 40 ~ 60cm.
  • Page 12 Roll Type PCT User Manual Please check your own projector’s installation guide if you did not get your projector and Roll PCT as a complete system. If you do, please check the instructions as following, Tools • Wrench • Hexagonal •...

  • Page 13: Suggested Projector And Wall Mount Installation

    Roll Type PCT User Manual 3. SUGGESTED PROJECTOR AND WALL MOUNT INSTALLATION 3-1 101” ROLL TYPE PCT + Suggested Projector Step 1. Define Projector Wall Mount Position 1. Define Projector Wall Mount vertical Position. 1-a. Distance (X) is the distance from Interactive White Board bottom edge to the ground. If the Interactive White Board is mainly for children, distance X will be 40cm to 60cm.
  • Page 14 Roll Type PCT User Manual 1-b. The distance between the top edge of the wall mount to the ground is X +1615mm. That is the height of wall mount) Projector wall mount upper edge to PCT Height: 1295mm bottom: 1615mm Width: 2248mm IWB bottom to ground (X)
  • Page 15 Roll Type PCT User Manual 3. Therefore, the projector wall mount position can be defined based upon 2 & 3 above. Projector wall mount upper edge to PCT Height: 1295mm bottom: 1615mm Width: 2248mm...

  • Page 16: 138" Roll Type Pct + Suggested Projector

    Roll Type PCT User Manual 3-2 138” ROLL TYPE PCT + Suggested Projector Step 1. Define Projector Wall Mount Position 1. Define Projector Wall Mount vertical Position. 1-a. The distance (X) between Interactive White Board bottom and ground will be based upon main users (children or adult). Height: 1295mm Width: 3282mm...
  • Page 17 Roll Type PCT User Manual 1-b. X + 1748 mm will be the distance between projector wall mount and ground. (That is the height of wall mount) Projector wall mount upper edge to PCT bottom: 1748mm Height: 1295mm Width: 3282mm 2.
  • Page 18 Roll Type PCT User Manual 3. Therefore, the projector wall mount position can be defined based upon 2 & 3 above. Projector wall mount upper edge to PCT Height: 1295mm bottom: 1748mm Width: 3282mm...

  • Page 19: Wall Plate Installation

    Roll Type PCT User Manual 3-3 Wall Plate Installation  Wall plate is aligned with the wall mount top-left mark, then mark drill holes position.  Drill holes at the ‘marked position’ with an electric drill and drilling bit.  Level wall plate using attached bubble level. ...

  • Page 20: Cable Management

    Roll Type PCT User Manual 3-4 Cable Management 1. Insert all cables (HDMI/VGA/Power cord) inside the arm. 2. Direct all cables toward designated position (wall or devices). Ex: VGA cable /HDMI cable/Power cord 3. Install arm on wall mount plate.

  • Page 21: Installation Projector On Arm

    Roll Type PCT User Manual 3-5 Installation Projector On Arm Step 1 Step 2 Step 3 Step 4...

  • Page 22: Projection Image Adjustment

    Roll Type PCT User Manual 3-6 Projection Image Adjustment 1. To avoid image shift, synchronizing check projection position/size…period of fastener screws.  Extend arm for Projection size adjustment (92” for 101” PCT, 132” for 138” PCT)
  • Page 23 Roll Type PCT User Manual  Adjust projector height...
  • Page 24 Roll Type PCT User Manual  Adjust projector left & right position...
  • Page 25 Roll Type PCT User Manual  Adjust focus...
  • Page 26 Roll Type PCT User Manual 2. Suggest projecting an alignment pattern to make image alignment easier. 3. Adjust the knobs of pitch, roll and yaw adjustment to make the image to be rectangle.
  • Page 27 Roll Type PCT User Manual  Step 1. Roll image adjustment 1) Project full screen test pattern 2) Align leveler with vertical line at center of test pattern. 3) Adjust Roll knob, until leveler and vertical line of test pattern center are overlapped.
  • Page 28 Roll Type PCT User Manual  Step 2. Yaw image adjustment 1) Align leveler with horizontal line at center of test pattern. 2) Adjust Yaw knob, until leveler and horizontal line of test pattern center are overlapped.
  • Page 29 Roll Type PCT User Manual  Step 3. Pitch image adjustment 1) Align leveler with vertical line of test pattern at left side of WB. 2) Adjust Pitch knob, until leveler and vertical line of test pattern left side are overlapped.
  • Page 30 Roll Type PCT User Manual  Step 4. Check result Double check with leveler, making sure overlapped with vertical lines of test pattern at left/central/right.
  • Page 31 Roll Type PCT User Manual  Step 5: Lock screws and assembly wall mount covers.
  • Page 32 Roll Type PCT User Manual ORGIONAL PROJECTOR AND WALL MOUNT INSTALLATION Please make sure your projector is able to project 94” (16:9) or 132” (16:6) image before PCT installation. Then adjust the projection size to 94” or 132”.

  • Page 33: Roll Type Pct Installation

    Roll Type PCT User Manual 4. ROLL TYPE PCT INSTALLATION  Step 1. Please refer to the section 1-4 (Environment Requirements) then make sure the wall size and surface if suitable for installation roll type PCT.  Step 2. Attach steel papers (If this area could not be magnetized by magnet, please follow steps as below to paste steel papers on wall). 2-1 Peel off the release paper from steel papers around 60mm.
  • Page 34 Roll Type PCT User Manual 2-3 There is a right angle line on number 1 of steel paper. When pasting no.1 steel paper, please align the right angle line with right top of projection image. To remove the release paper of double side tape on the back of steel paper then align the position line and paste it on wall.
  • Page 35 Roll Type PCT User Manual 2-5 There is an EPE sponge in carton box. Please fold up EPE sponge as following figure. 2-6 Using folded EPE sponge to press and scrape out air (by staff A) and pull off release paper (by staff B) in the same time.
  • Page 36 Roll Type PCT User Manual 2-7 Please align the horizontal line of steel paper 2 with top projection image, and remove the release paper of double side tape on the back of steel paper, then paste the steel paper from top to bottom, then right to left side. (The gap of each steel paper is better to less than 2 mm).
  • Page 37 Roll Type PCT User Manual  Step 3. Paste the PCT. 3-1 Please take out PCT from ‘Carton Box’. 3-2 Unroll the PCT from the ‘Paper tube’. 3-3 Suggest 3 manpower to take the PCT towards to the steel paper / magnetized wall. Remark: 101”: suggest 2 manpower 138”: suggest 3 manpower...
  • Page 38 Roll Type PCT User Manual 3-4 Please align and paste the PCT right top outline to outline of no.1 & no.2 steel paper. Please align with No. 1 & No. 2 steel paper when you attach PCT start from right top corner...
  • Page 39 Roll Type PCT User Manual 3-5 Paste the PCT from right to left side completely.  Step 4. Make sure to keep surface smooth during paste process, which means no dents/wrinkles/ridges.
  • Page 40 Roll Type PCT User Manual  Step 5. Please paste the left frame as below red area position.  Step 6: May projection image is not suitable with PCT, please adjust the projection image as chapter 3-4 Projection Image Adjustment. ...
  • Page 41 Roll Type PCT User Manual 7-2 Install the bracket mounting screw (M2.6*8L) to frame. 7-3 Fix the bracket on wall with screw.
  • Page 42 Roll Type PCT User Manual 7-4 Follow 7-1 to 7-3 step then install the rest of brackets for other corner.
  • Page 43 Roll Type PCT User Manual...

  • Page 44: Calibration

    Roll Type PCT User Manual 5. CALIBRATION The calibration tool provides 4 / 9 / 36 points calibration functions. Please use 9 points to plane projection PCT and 36 points to curve projection PCT for the best accuracy. Please use PCT Utility to calibrate. Do not use Windows built-in features to calibrate and it may cause poor mouse accuracy. ...
  • Page 45 Roll Type PCT User Manual  Step 3. To install PCT Utility, double click “PCT Utility setup.exe”. • Step3.1. The Microsoft .NET Framework 4.5.2 and Visual C++ 2008 Redistributable package MUST BE INSTALLED TO ENSURE THAT CALIBRATION TOOL WILL WORK PROPERLY. Please select ‘Next’.
  • Page 46 Roll Type PCT User Manual • Step 3.2. Select install path. Select Start Menu Folder.
  • Page 47 Roll Type PCT User Manual • Step 3.3. Create a desktop shortcut.
  • Page 48 Roll Type PCT User Manual  Step 4. After installation, launch PCTUtility.exe...
  • Page 49 Roll Type PCT User Manual  Step 5. Please use 9 points selection for better accuracy. Curved surface (example: chalk board) application suggest for 36 points calibration. Touch the calibration points following instructions step by step. PCT Utility will recognize which PCT type then provide the accordingly calibration points.
  • Page 50 Roll Type PCT User Manual 36 points calibration...
  • Page 51 Roll Type PCT User Manual  Step 6. Use the drawing function to test accuracy after calibration is done. To exit drawing mode, please press surface of PCT continually then select Exit. (Optional)  Step 7. Please calibrate again if you are not satisfied with accuracy (this might happen if you did not touch the exact position while calibrating.)

  • Page 52: Trouble Shooting

    Roll Type PCT User Manual 6. TROUBLE SHOOTING Q1: Why cannot the PC boot when the USB cable which connects PC and projector is already plugged in? How to resolve this situation? A： 1. Unplug USB cable from PC; or 2.
  • Page 53 Roll Type PCT User Manual 4. Go to Power Options in Control Panel, check USB selective suspend settings status in USB settings under Advance Settings. Switch to “Disabled”. 5. Go to official website of the laptop/PC manufacturer, and update USB driver to latest version. 6.
  • Page 54 Roll Type PCT User Manual Q3 What to do when there is only single touch point? A： 1. Re-plug USB cable from PC. 2. Go to “Control Panel” and make sure “Tablet PC Components” is selected.
  • Page 55 Roll Type PCT User Manual Q4 When does should calibration be done? Please perform Calibration during first installation. If projector or whiteboard is moved, Calibration should be performed again. For better accuracy, please do 9 point Calibration. Q5 What to do if the touch is not accurate？ 1.
  • Page 56 Roll Type PCT User Manual 2. If the default setting of Windows is changed, the touch accuracy might be impact. Go to setting page<choose Control Panel/Appearance and Personalization> Select “Smaller(s) - 100%（default）”，then click “Apply”。 3. Please reset the built-in feature settings. Go to setting page and choose < Control Panel/Tablet PC > , click “Reset” button. Using “9-point calibration” in PCT utility to calibrate again.
  • Page 57 Roll Type PCT User Manual Step 2. Go to “Control Panel”. Step 3. Select “Hardware and Sound”.
  • Page 58 Roll Type PCT User Manual Step 4. Select “Tablet PC Settings”.
  • Page 59 Roll Type PCT User Manual Step 5. Click “Reset” to reset the calibration value to zero.
  • Page 60 Roll Type PCT User Manual Step 6. Press “Windows + P” to switch display setting to “Second screen only” mode then use 9-point calibration in PCT utility to calibrate.

  • Page 61: Product List

    Roll Type PCT User Manual 7. PRODUCT LIST Item Description Quantity Roll Type PCT Left Frame Module 5m USB A to USB A cable Steel Papers 1 (sets) CD for User Manual and Utility Software...
  • Page 62 Roll Type PCT User Manual EPE Sponge Bracket to fix PCT frame and Wall Wall screw for bracket...
