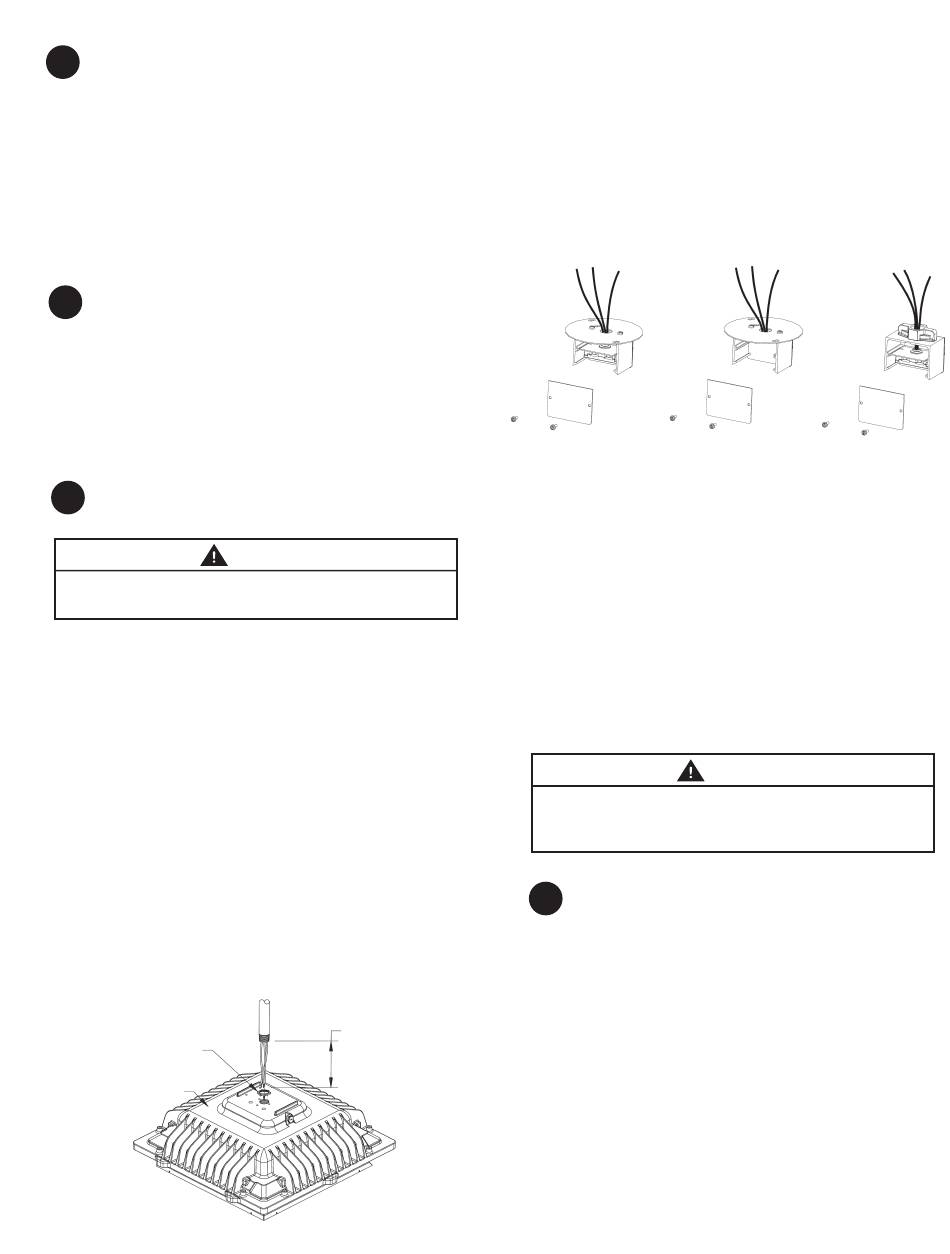

GE Evolve Installation Manual page 2

1
UNPACKING
• This luminaire has been properly packed so that no
parts should have been damaged during transit.
• Inspect to confirm.
• The carton should contain a luminaire complete with
mounting assembly.
• NOTE: Be careful not to impact or scratch the lens.
2
hANDLING
• Damage may occur if luminaire is improperly handled
outside of pack.
• Do not impact or stack luminaire after removal from
packaging.
3
MOUNTING
WARNING
Risk of injury or damage. Unit will fall if not installed
properly. Follow installation instructions.
A. Rigid Pendant Mounting
• Thread pendant conduit into top housing (Figure 1) or
mounting hub nut.
• Loosen 4 lens screws and remove refractor.
Loosen two inner plate screws and remove inner
plate.
• Feed wires through pendant and into housing.
• Connect incoming leads to stripped leads using
connectors rated 90 °C or more
• Reassemble inner plate and refractor.
• NOTE: To prevent damage, do not to over tighten
screws on lens.
Locknut
(By User)
Cover
FIGURE 1
6 Inches
(152 mm)
B. Luminaires with Primary Disconnect
Outlet Box hanging hardware Figure 2,
Outlet Box hanging hardware Figure 3,
and Rigid Pendant hardware Figure 4
Remove cover plate(s) and attach hanging hardware
•
to pendant conduit and tighten screw, or attach to
the junction box.
FIGURE 2
• Feed supply wire through conduit and into disconnect
housing.
• Make necessary wire connections.
• Slide the extrusion attached to the luminaire
completely onto the hanger extrusion.
Replace cover plate.
•
- (Cover plate is necessary to lock luminaire
into place on the hardware, cover electrical
connections, and if so equipped, seal from water.)
Risk of injury. LED light source achieves full intensity
immediately upon being powered on. Do not look directly
at LED light source while energized.
4
WIRING
• NOTE: Make all electrical connections in accordance
with the National Electrical Code and any applicable
local code requirements.
• NOTE: Verify that supply voltage is correct by
comparing it to nameplate.
• External dimming control cable, when applicable, is
supplied with barrel splice connectors to receive 22
to 16 AWG dimming control wires.
FIGURE 3 FIGURE 4
WARNING
