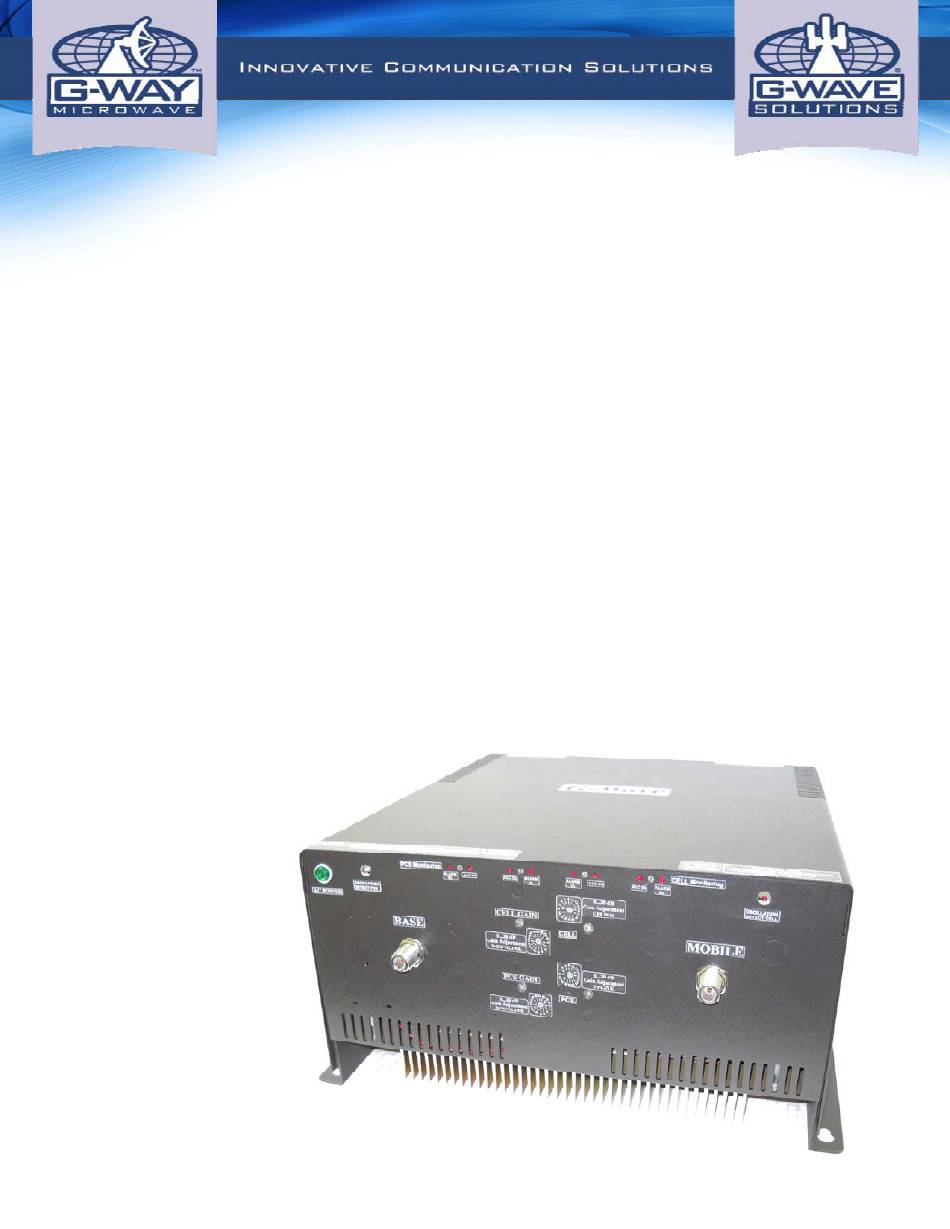

- Page 1 Installation Operating Manual BDA‐CELLAB/PCSF‐33/33‐80‐AB Dual Band Bi‐Directional Amplifier ...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PARAGRAPH PAGE NO OVERVIEW BLOCK DIAGRAM DESCRIPTION BLOCK DIAGRAM DRAWING (Figure 1) ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS ENVIRONMENTAL CONDITIONS FCC and IC NOTES RF EXPOSURE WARNING CONNECTIONS OPTIONAL FEATURES MECHANICAL OUTLINE DRAWING (Figure 2) INSTALLATION OPERATION FRONT PANEL (Figure 3) BACK PANEL (Figure 4) DIAGNOSTICS GUIDE Page | 2... -
Page 3: Overview
The BDA-CELLAB/PCSF-33/33-80-AB assembly enhances the coverage area of radio communications in buildings and RF shielded environments. The BDA-CELLAB/PCSF-33/33-80-AB has dual RF paths (Forward / Reverse) to improve coverage in two distinct frequency bands. The unit features low noise figure and wide dynamic range. It is based on a dual duplexed path configuration with sharp out of band attenuation allowing improved isolation between the receiving and transmitting paths. -
Page 4: Block Diagram Drawing (Figure 1)
BLOCK DIAGRAM DRAWING: (Figure 1) 1. Input Base Quadruplexer – Features low insertion loss and separates UL from DL paths for CELL and PCS bands. 2. Downlink CELL LNA/Pre-Amp – Low noise figure amplifier with high linearity 3. Selector Filter CELL DL – Features high selectivity and provides required isolation at maximum gain. -
Page 5: Electrical Specifications
ELECTRICAL SPECIFICATIONS: Frequency Range : UL CELL AB 824-849 MHz : UL PCS 1850-1910 MHz : DL CELL AB 869-894 MHz : DL PCS 1930-1990 MHz Pass band Gain @ min attenuation : 80 dB (Min.) Variable Step Attenuator Range : 0-30 dB (2-dB steps) Gain Flatness... - Page 6 By additional filtering this BDA can support the following bands: Table 1 Frequency Downlink Frequency Uplink Frequency Band Ranges Ranges CELL AB 869-894 MHz 824-869 MHz CELL A 869-880 MHz 824-835 MHz CELL B 880-894 MHz 835-849 MHz PCS FULL 1930-1990 MHz 1850-1910 MHz PCS A...
-
Page 7: Mechanical Specifications
MECHANICAL SPECIFICATIONS: Size : 18.1x 13.2 x 16 inch RF Connectors : N-Type Female Weight : 65 Lb. (28.5 kg) approx. ENVIRONMENTAL CONDITIONS: The unit is designed for indoor applications: Operating temperature: - 20°C to + 50°C Storage temperature: - 50°C to + 90°C FCC NOTE: The product has been tested and found to comply with the Federal Communications Commission (FCC) RF Exposure Requirements, pursuant to FCC Part 22 and 24. -
Page 8: Connections
CONNECTIONS: The BDA AC power is accepted through a standard 3-wire male plug (IEC-320) with phase, neutral and ground leads. The AC power is wired to a high efficiency DC switching power supply which is CE and UL approved. The power supply runs the amplifiers and the LED indicators. - Page 9 OPTIONAL ALARM CONDITIONS: OPTIONAL ALARM CONDITIONS: The alarm monitors current of both uplink and downlink amplifiers. An alarm condition will occur if either uplink or downlink amplifiers are over or under its current tolerance. Also Oscillation detect Alarm would be provided on the other pair dry contacts.
-
Page 10: Mechanical Outline Drawing (Figure 2)
Mechanical Outline (Figure 2): Page | 10... -
Page 11: Installation
INSTALLATION: DO NOT APPLY A.C. POWER TO THE RHBDA UNTIL CABLES ARE CONNECTED TO BOTH PORTS OF THE RHBDA AND THE ANTENNAS. 1. Set the BDA Rack on the floor or mount on a wall (where applicable). Using appropriate screws and anchors, attach the BDA to the wall at the four mounting holes on the side flanges. -
Page 12: Operation
This setup should be done under RF signal transmit for either path the level indicator is accurate to +/- 0.4 dB of the ALC set point. Note: Operation of BDA-CELLAB/PCSF-33/33-80-AB at maximum gain with greater than -40 dBm average power incidents on the MOBILE or BASE ports could cause damage to the BDA. -
Page 13: Front Panel (Figure 3)
Variable Gain Adjustment and LED Indicators Figure 3 Figure 4 Back Panel Connections Page | 13... -
Page 14: Diagnostics Guide
DIAGNOSTICS GUIDE The BDA provides long term, care-free operation and requires no periodic maintenance. There are no user-serviceable components inside the BDA. This section covers possible problems that may be related to the installation or operating environment. Gain Reduction Possible causes: Defective RF cables and RF connections to antennas, damaged antenna or Leaky cable.
