3060050/2

Installation and Maintenance Instructions

Printed in the UK

IM-F12-31 CH Issue 2

'C' Series

Control Valves

1. Safety information

2. General product

information

3. Installation and

Commissioning

4. Maintenance

5. Spare parts

IM-F12-31

CH Issue 2

Need help?

Do you have a question about the C Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Spirax Sarco C Series

Page 1: Safety Information

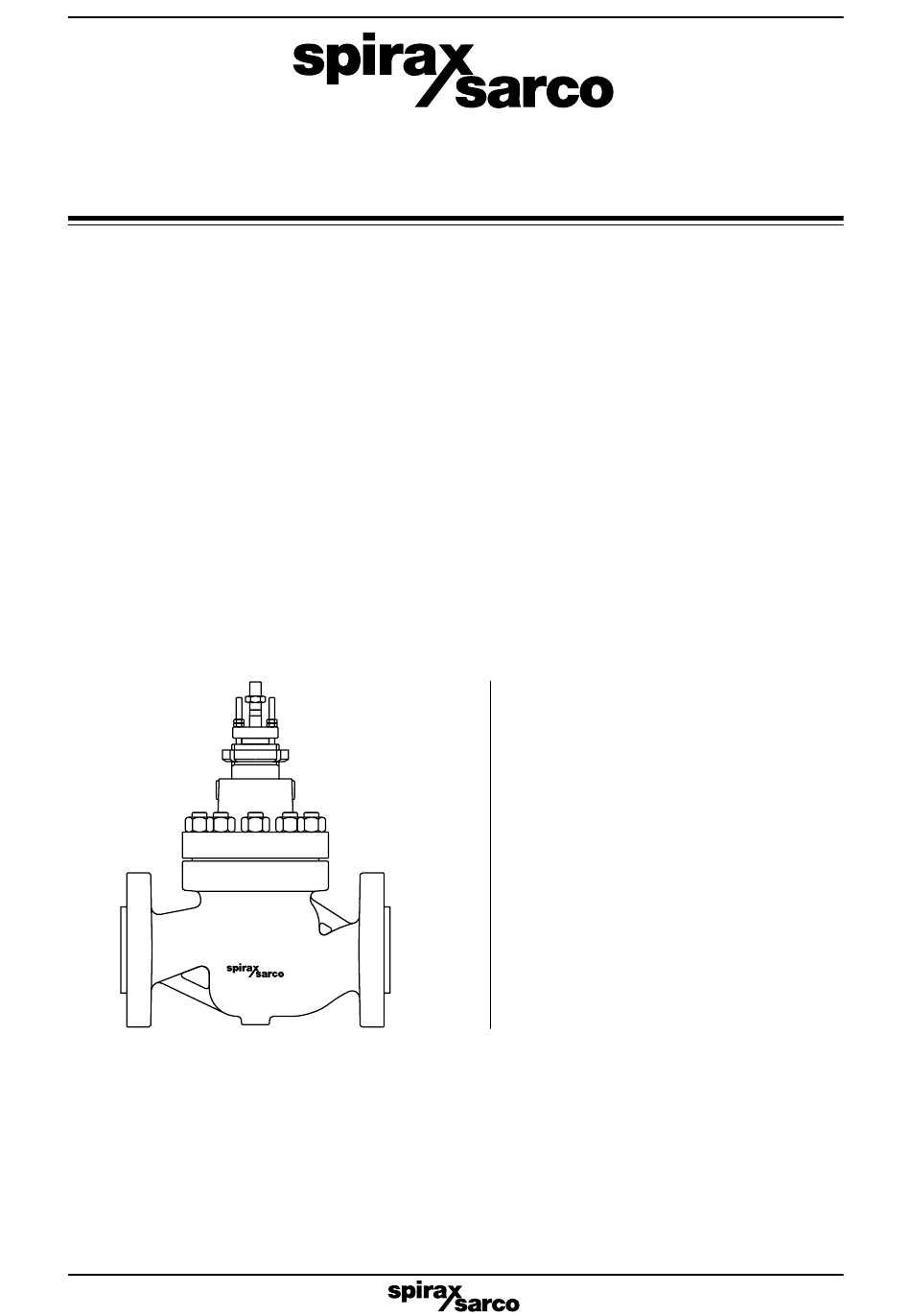

3060050/2 IM-F12-31 CH Issue 2 'C' Series Control Valves Installation and Maintenance Instructions 1. Safety information 2. General product information 3. Installation and Commissioning 4. Maintenance 5. Spare parts Printed in the UK © Copyright 2003 IM-F12-31 CH Issue 2...
Page 2 1. Safety information General Safe operation of the unit can only be guaranteed if it is properly installed, commissioned and maintained by a qualified person in compliance with the operating instructions. General installation and safety instructions for pipeline and plant construction, as well as the proper use of tools and safety equipment must also be complied with.
Page 3: Technical Data
2. General product information Description The 'C' series is a range of carbon steel (CE43), alloy steel (CE83) or stainless steel (CE63) two port, cage trim, control valves conforming to ANSI B 16.34 and ASME VIII standards. The valves are available in sizes 1" to 8" (DN25 to DN200), with ANSI and PN flange connections. When used in conjunction with a pneumatic linear actuator the 'C' series valve will provide characterised modulating or on / off control.
Page 4 Limiting conditions Body ANSI 300 and ANSI 600 design conditions CE43 14°F to +482°F (-10°C to +250°C) Standard PTFE CE63 -20°F to +482°F (-29°C to +250°C) chevron stem seals CE83 14°F to +482°F (-10°C to +250°C) CE43 14°F to +572°F (-10°C to +300°C) Standard CE63...
Page 5 CE83 Alloy steel Pressure bar g 90 103 1 004 Steam saturation curve 1 000 1 200 1 400 Pressure psi g The product must not be used in this region. A - C PN16, A - D PN25, A - E PN40, A - F PN63, A - G PN100, B - H ANSI 150,...
Page 6 Part numbers, description and materials No. Part Material CE43 Carbon steel ASTM A216 WCB Body CE63 Stainless steel ASTM A351 CF8M CE83 Alloy steel ASTM A217 WC6 CE43 Carbon steel ASTM A216 WCB Bonnet CE63 Stainless steel ASTM A351 CF8M CE83 Alloy steel ASTM A217 WC6...
Page 7 Fig. 1 IM-F12-31 CH Issue 2...
Page 8 A bypass can be fitted around the valve with a manual regulating valve allowing the process to be controlled whilst the control valve is isolated for maintenance. Commissioning For commissioning instruction refer to the Installation and Maintenance Instructions, covering Spirax Sarco actuators. IM-F12-31 CH Issue 2...
Page 9 4. Maintenance Note: Before actioning any maintenance, observe the 'Safety information' in Section 1. General Valve parts are subject to normal wear and must be inspected and replaced as necessary. Inspection and maintenance frequency depends on the severity of service conditions. This Section gives instructions for packing lubrication, packing maintenance, trim maintenance, and bellows seal replacement.
Page 10 Procedure for renewing chevron gland seals For spring-loaded single PTFE chevron gland seals, the gland spring (10) maintains a sealing force on the packing. If leakage is noted around the stuffing box bush (18) check to be sure the shoulder on the bush is touching the bonnet. If the shoulder is not touching the bonnet, tighten the stuffing box nuts (16), until the shoulder is against the bonnet.
Page 11 Graphite gasket Spacer ring Spiral gasket Fig. 2 IM-F12-31 CH Issue 2...
Page 12 Procedure for renewing graphite gland seals If there is undesirable packing leakage first try to limit the leakage and establish a stem seal by tightening the stuffing box nuts (16). Note: If the packing is relatively new and tight on the stem, and if tightening the stuffing box nuts does not stop the leakage, it is possible that the valve stem is worn or damaged so that a seal cannot be made.
Page 13 Fig. 3 Graphite gland seal assembly Line marked on the follower 3 mm Fig. 3a Fig. 3b IM-F12-31 CH Issue 2...
Page 14 Trim maintenance 4.5.1 Disassembly of valves with standard bonnet and temperature extension bonnet: 1. Remove the actuator and the bonnet according to Steps 1 to 5 of the replacing chevron seals procedure (see Section 4.3.1, page 10). Caution: When lifting the valve plug stem (6) and attached valve plug (3) out of the body, be certain that the cage (4) remains in the body (1).
Page 15 Fig. 4 Extended bonnet Fig. 4a 'C' Series valve Graphite gasket Spacer ring Spiral gasket Reduction kit (K) Adaptor gasket Fig. 4b Reduction kit IM-F12-31 CH Issue 2...
Page 16 Valve plug and stem maintenance: Caution: If replacing the valve plug sealing rings (7), be careful not to scratch the surfaces of the ring grooves in the valve plug, the surfaces of the replacement ring, may not seal properly. 1. Remove the valve plug (3) in accordance with the instructions in trim maintenance, (see Section 4.5, page 14).
Page 17 Fig. 6 Bellows sealed bonnet Fig. 5 'C' Series valve Graphite gasket Spacer ring Spiral gasket Reduction kit (K) Adaptor gasket IM-F12-31 CH Issue 2...
Page 18 5. Spare parts The spare parts available for the CE43, CE63 and CE83 valves, 1" to 8" (DN25 to DN200), are detailed below. No other parts are supplied as spares. Available spares Actuator clamping nut PTFE seal set Gland seal kit Graphite packing set Valve plug Valve stem...
Page 19 'C' series valve B or C or H Reduction kit (K) Adaptor gasket Fig. 7 Spare parts Note: When placing an order for spares please indicate clearly the product code, serial number and date code (found on the label of the valve body) to ensure that the order is processed quickly, efficiently and correctly.
Page 20 'C' series valve selection guide 1", 1½", 2", 2½", 3", 4", 5", 6" and 8" Valve size 2" DN25, 40, 50, 65, 80, 100, 125, 150 and 200 Valve series C = Cage trim E = Equal percentage F = Fast opening Valve characteristic L = Linear M = Modified equal percentage...
