Summary of Contents for Phoenix Gold SnapSound SSC601

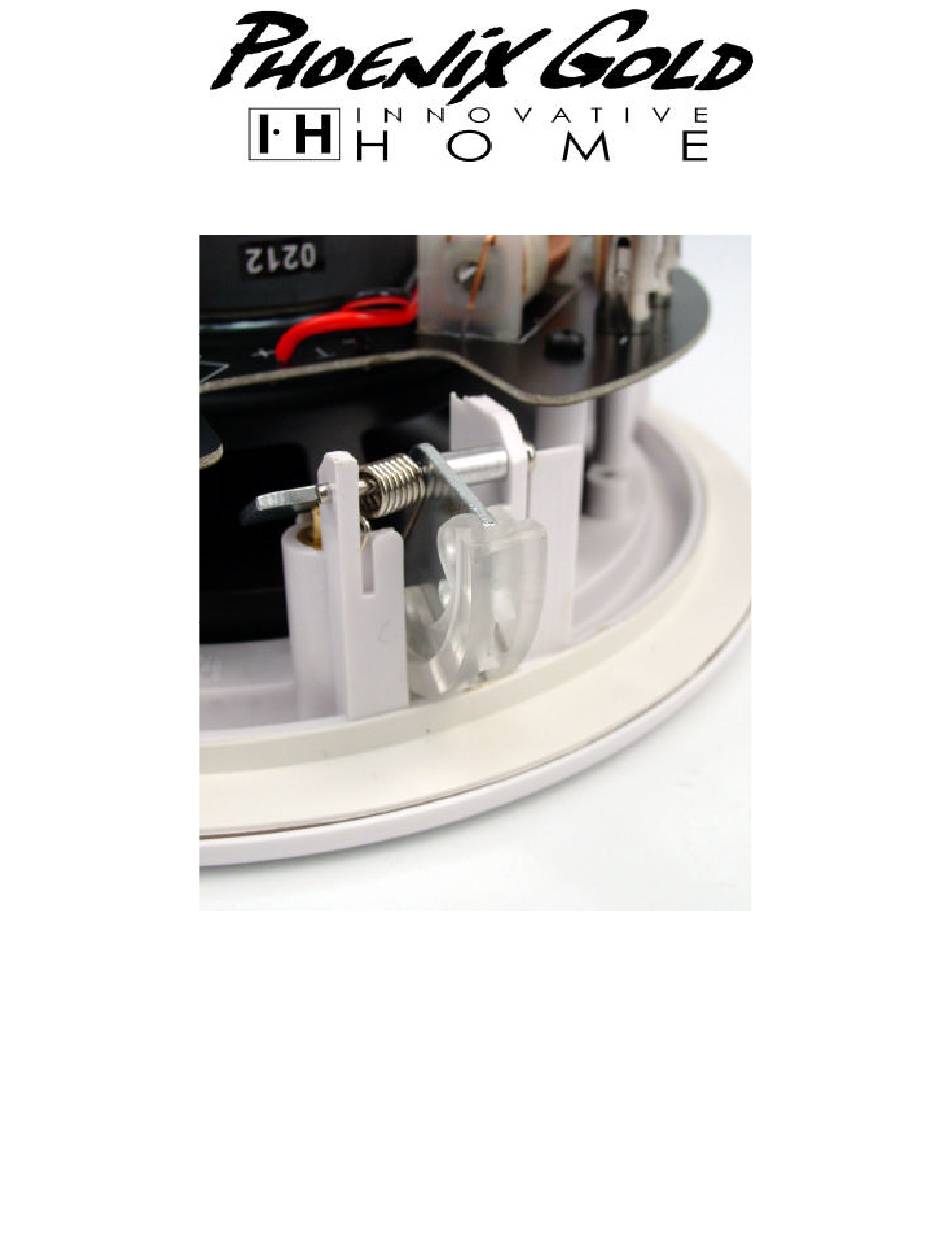

- Page 1 Owner’s Manual Installation Guide For SSC601 and SSC801 SnapSound Speakers 8100.0283A...
-
Page 2: Planning The Installation
1. Remove all packaging and verify the condition of each speaker and grille. If there is damage from transit, please contact the shipper immediately. Phoenix Gold is not responsible for shipping damage. Any shipping damage should be noted on bill of lading upon receipt. -
Page 3: Tools Needed
Tools Needed 1. Drywall saw, jigsaw, or other wallboard cutting device. 2. Medium standard screwdriver (only needed to dismount) 3. 2 conductor stranded speaker wire in at least 16 gauge to 18 gauge for up to 30 feet, and 12 gauge to 14 gauge for 30 feet or more. 4. - Page 4 Installing SnapSound Speakers (continued) 8. Pivot tweeter to aim at your desired listening location. 9. Place the grille into the frame of the speaker carefully, using your hands to gently push the grill metal into the outer edge of the speaker frame.
- Page 5 In Case of Problems Contact your Phoenix Gold dealer for proper handling of any warranty claims, additional troubleshooting or suggestions. If there is no authorized dealer close to you, please contact Phoenix Gold Tech Support at 503.286.9300, or write to: Phoenix Gold International, Inc.
-
Page 6: Warranty Information
Phoenix Gold, or damage that is attributable to Acts of God. It does not cover costs of transportation to Phoenix Gold or damage in transit.
