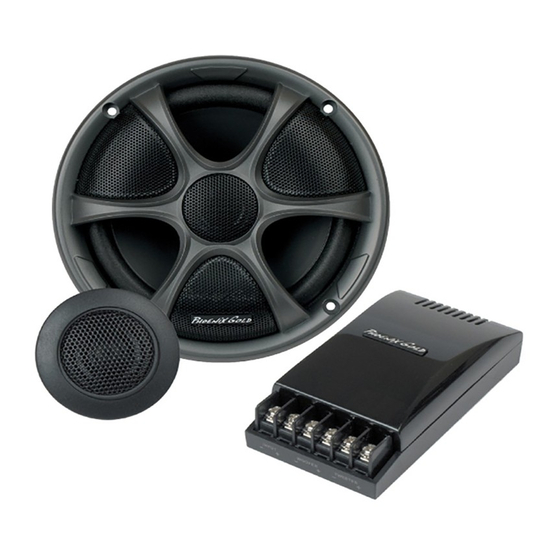

COMPONENT loudSpeaker Manual
Manual De Composantes
Model: RX65CS
Features:
• LAMINATE-TREATED PAPER CONE - Advanced laminating process produces excellent stiffness to weight ratio, superior damping qualities
• 19mm BALANCED DRIVE MYLAR TWEETER - Excellent reproduction of high frequencies
• POLYMIDE VOICE COIL FORMER - High temperature light-weight voice coil structure for increased sensitivity
• TRIPLE-LAYER UV TREATED FOAM SURROUND - Premium design for long term reliability and sensitivity
• RIGID POWDER COATED STEEL FRAME - Designed for precise motor alignment
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Gold RX65CS
Summary of Contents for Phoenix Gold RX65CS
- Page 1 COMPONENT loudSpeaker Manual Manual De Composantes Model: RX65CS Features: • LAMINATE-TREATED PAPER CONE - Advanced laminating process produces excellent stiffness to weight ratio, superior damping qualities • 19mm BALANCED DRIVE MYLAR TWEETER - Excellent reproduction of high frequencies • POLYMIDE VOICE COIL FORMER - High temperature light-weight voice coil structure for increased sensitivity • TRIPLE-LAYER UV TREATED FOAM SURROUND - Premium design for long term reliability and sensitivity • RIGID POWDER COATED STEEL FRAME - Designed for precise motor alignment...
- Page 2 3. I f the mounting surface is not structurally strong enough to accommodate screws, (i.e. plastic, cardboard) use the pro vided speed clips which will act as a nut for the supplied screws. Figure 2 Mounting the speaker in a custom application. Figure 1 Mounting the speaker in a factory location. TWEETER ADJUSTMENT components. Connect the left amplifier output to the crossover for the left The tweeters pivot in their housings. When mounted low in the door, angle the component set, and the right amplifier output to the crossover for the right tweeter up for better high frequency performance. In rear deck or dashboard component set. From there connect your component woofer and tweeters to the installations, angle the tweeter away from the rear glass to reduce destructive corresponding crossover observing polarity (+ to +, - to -). (figure 3) reflections. CROSSOVER INSTALLATION CROSSOVER ADJUSTMENT We suggest you select a mounting location for the crossovers within the cab The crossover provided with the RX Series component set is optimized to give the of the vehicle, such as the kick panels or near the amplifier. If crossovers must most accurate in-car response. Use only the cross-over provided; the use of any be mounted in the door, mount them between the moisture barrier and the other crossover may result in damage to one or more of the RX Series innermost door panel. MOISTURE DAMAGE WILL VOID YOUR WARRANTY. © 2013 Phoenix Gold • www.phoenixgold.com...
-
Page 3: Surface Mount
Component Speaker Owner’s Manual TWEETER INSTALLATION SURFACE MOUNT FLUSH MOUNT Surface Mounting Options: Screws are provided for use when cutting a hole in the door panel or other mounting surface is not an option. Make sure that the With a variety of supplied mounting options, the RX Series series tweeter is surface mount location is free of passenger movement that might damage the easy to install in any vehicle. Each component set comes with a flush mount and tweeter. (figure 6) surface mount installation kit. For other custom mounting configurations, please contact your authorized Phoenix Gold Dealer. Flush Mount: For optimal tweeter installation, use the Flush Mount option. The Flush mount requires 3⁄4” depth and a 1-13/16” hole in the mounting surface. (figure 4) (figure 5) The RX Series tweeters pivot in their housings. This allows the user to align the tweeter during the installation process for optimum listening results. For best results, always try to maintain equal path lengths between the right and the left tweeter and the listening position. This is usually accomplished by mounting as low and deep as possible in a kick panel installation, or high and deep in a dashboard installation. Be cautious in dashboard installations not to reflect the tweeter off of the windshield: this increases reflections and can greatly diminish the overall system listening quality. For door panel installations, try to angle the tweeters toward the listener to optimize high frequency performance. © 2013 Phoenix Gold • www.phoenixgold.com... -
Page 4: Specifications
Component Speaker Owner’s Manual SPECIFICATIONS: Due to continual product improvement, all specifications subject to change without notice. RX65CS RMS Power Handling (watts) Peak Power Handling (watts) 150W Impedance (ohms) Cut Out Dimension (mm) Inches (144) 5.7 Mounting Depth (mm) Inches (64) 2.5 © 2013 Phoenix Gold • www.phoenixgold.com... -
Page 5: Limited Warranty
Phoenix Gold A Division of AAMP of America™ 13190 56th Court Clearwater, Florida 33760 P: 888-228-5560 info@phoenixgold.com www.phoenixgold.com © 2013 AAMP of Florida, Inc Designed and Engineered in the USA LIMITED WARRANTY: Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty. INTERNATIONAL WARRANTIES: Products purchased outside the United States of America are covered only by that country’s Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country’s reseller for information.
