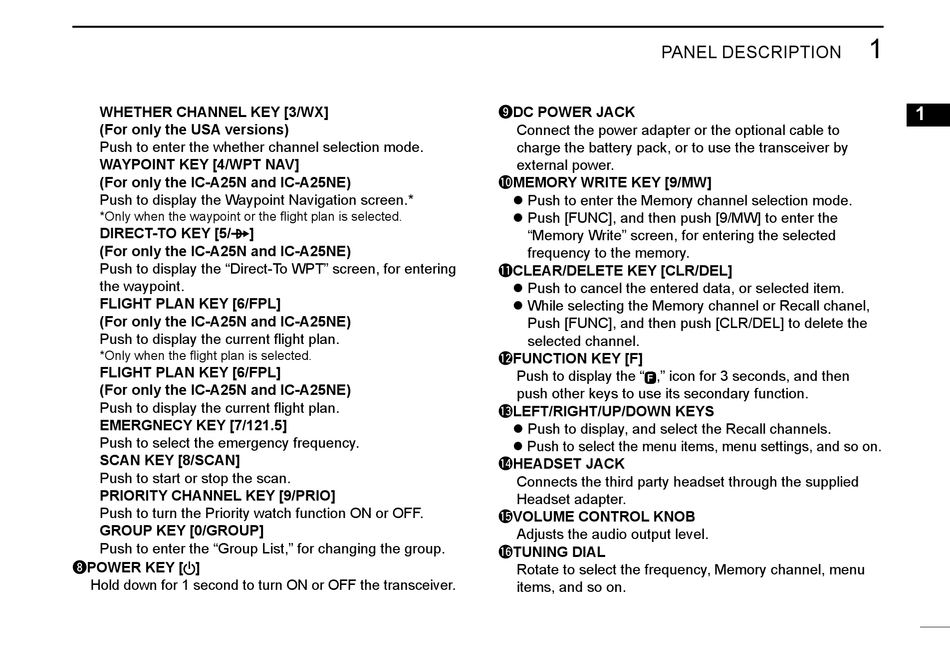

Icom IC-A25N Basic Manual page 7

WHETHER CHANNEL KEY [3/WX]
(For only the USA versions)
Push to enter the whether channel selection mode.
WAYPOINT KEY [4/WPT NAV]
(For only the IC-A25N and IC-A25NE)
Push to display the Waypoint Navigation screen.*
  *Onlywhenthewaypointortheflightplanisselected.
DIRECT-TO KEY [5/ ]
(For only the IC-A25N and IC-A25NE)
   P ushtodisplaythe"Direct-ToWPT"screen,forentering
the waypoint.
FLIGHT PLAN KEY [6/FPL]
(For only the IC-A25N and IC-A25NE)
   P ushtodisplaythecurrentflightplan.
  *Onlywhentheflightplanisselected.
FLIGHT PLAN KEY [6/FPL]
(For only the IC-A25N and IC-A25NE)
   P ushtodisplaythecurrentflightplan.
EMERGNECY KEY [7/121.5]
   P ushtoselecttheemergencyfrequency.
SCAN KEY [8/SCAN]
Push to start or stop the scan.
PRIORITY CHANNEL KEY [9/PRIO]
   P ushtoturnthePrioritywatchfunctionONorOFF.
GROUP KEY [0/GROUP]
   P ushtoenterthe"GroupList,"forchangingthegroup.
iPOWER KEY [ ]
  H olddownfor1secondtoturnONorOFFthetransceiver.
PANELDESCRIPTION
oDC POWER JACK
Connect the power adapter or the optional cable to
charge the battery pack, or to use the transceiver by
external power.
!0 M EMORY WRITE KEY [9/MW]
z Push to enter the Memory channel selection mode.
z Push [FUNC], and then push [9/MW] to enter the
"MemoryWrite"screen,forenteringtheselected
frequencytothememory.
!1 C LEAR/DELETE KEY [CLR/DEL]
z Push to cancel the entered data, or selected item.
z While selecting the Memory channel or Recall chanel,
Push[FUNC],andthenpush[CLR/DEL]todeletethe
selected channel.
!2 F UNCTION KEY [F]
Push to display the " ,"iconfor3seconds,andthen
pushotherkeystouseitssecondaryfunction.
!3 L EFT/RIGHT/UP/DOWN KEYS
z Push to display, and select the Recall channels.
z Push to select the menu items, menu settings, and so on.
!4 H EADSET JACK
Connects the third party headset through the supplied
Headset adapter.
!5 V OLUME CONTROL KNOB
  A djuststheaudiooutputlevel.
!6 T UNING DIAL
  R otatetoselectthefrequency,Memorychannel,menu
items, and so on.
