PHYWE Timer 2-1 Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D–37079 Göttingen
+49 (0) 551 604–0
Telefon
+49 (0) 551 604–107
Fax
E-mail info@phywe.de
Internet www.phywe.com
Operating instructions
The unit complies
with the correspond-
ing EU guidelines.
TABLE OF CONTENTS
1 SAEFTY PRECAUTIONS
2 PURPOSE AND DESCRIPTION
3 EXPLANATION OF THE SYMBOLS
4 FUNCTIONAL AND OPERATING ELEMENTS
5 HANDLING
6 NOTES ON OPERATION
7 TECHNICAL DATA
8 SCOPE OF DELIVERY
9 LIST OF EQUIPMENT
10 WASTE DISPOSAL
www.phywe.com, © All rights reserved

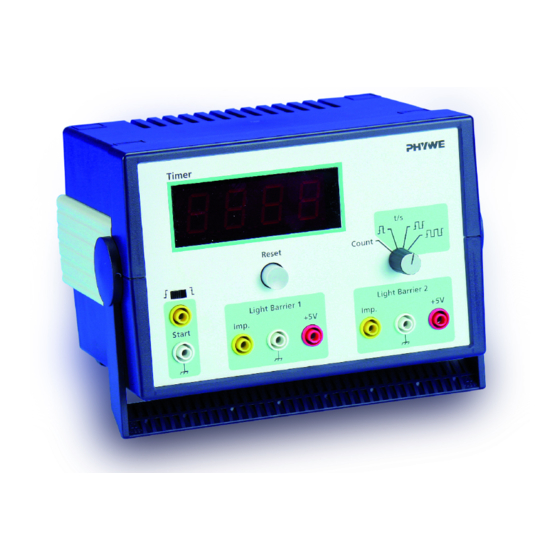

Fig. 1: Timer 2-1, 13607-99
Timer 2-1
1 SAEFTY PRECAUTIONS
Attention!

Carefully read these operating instructions completely be-
fore operating this instrument. This is necessary to avoid
damage to it, as well as for user-safety.

Check that your mains supply voltage corresponds to that
given on the type plate fixed to the instrument.

Install the instrument so that the on/off switch and the
mains connecting plug are easily accessible. Do not
cover the ventilation slits.

Take care that no liquids or objects enter in through the
ventilation slots.

Only use the instrument in dry rooms in which there is no
risk of explosion.

Only use the instrument for the purpose for which it was
designed.

Protect the instrument from dust, moisture and vapours.
Only clean it in voltage-free state with a slightly
moistened, lint-free cloth. Aggressive cleaning agents and
solvents are unsuitable.

Do not operate if there are visible signs of damage to the
unit, the connection cord or the measuring lines.

Do not open the unit.

Do not connect any devices to the unit other than the
ones that are intended for this purpose.

Only use the power supply that is supplied with the unit
(Order.-No. 12651-99).
13607-99
1
13607-99 / 0317
