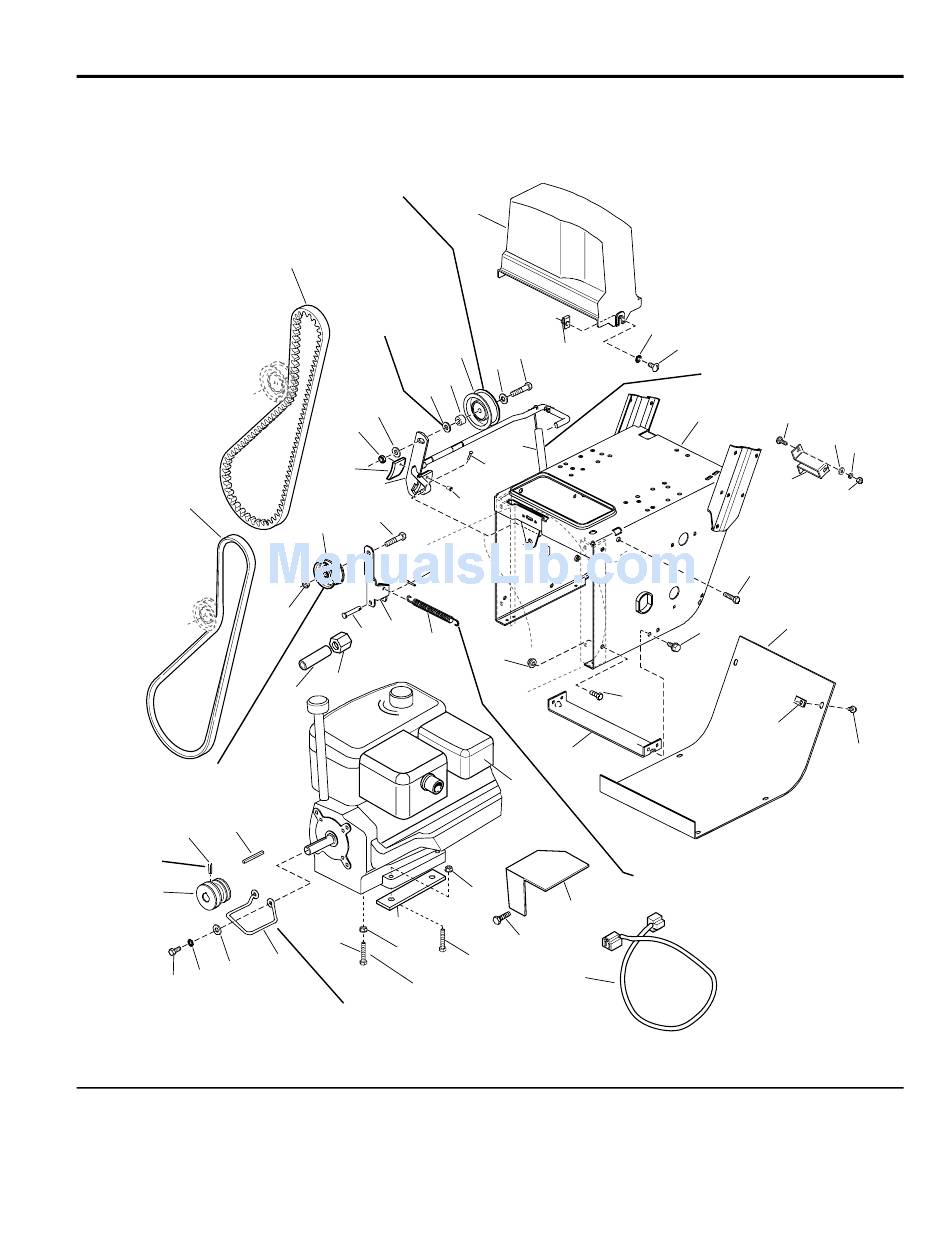

Simplicity 960 Parts Manual page 10

Engine and Frame Group - 9HP Electric Start
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2
Long hub of idler pulley
(Ref. 19) to be toward
idler arm (Ref. 16).
38
37
Torque to
10-14 ft. lbs. or
14-20 N m
36
33
34
35
The above parts group applies to the following Mfg. Nos.:
1694439 - 960E
