Adjusting the HUD -
Heads Up Display

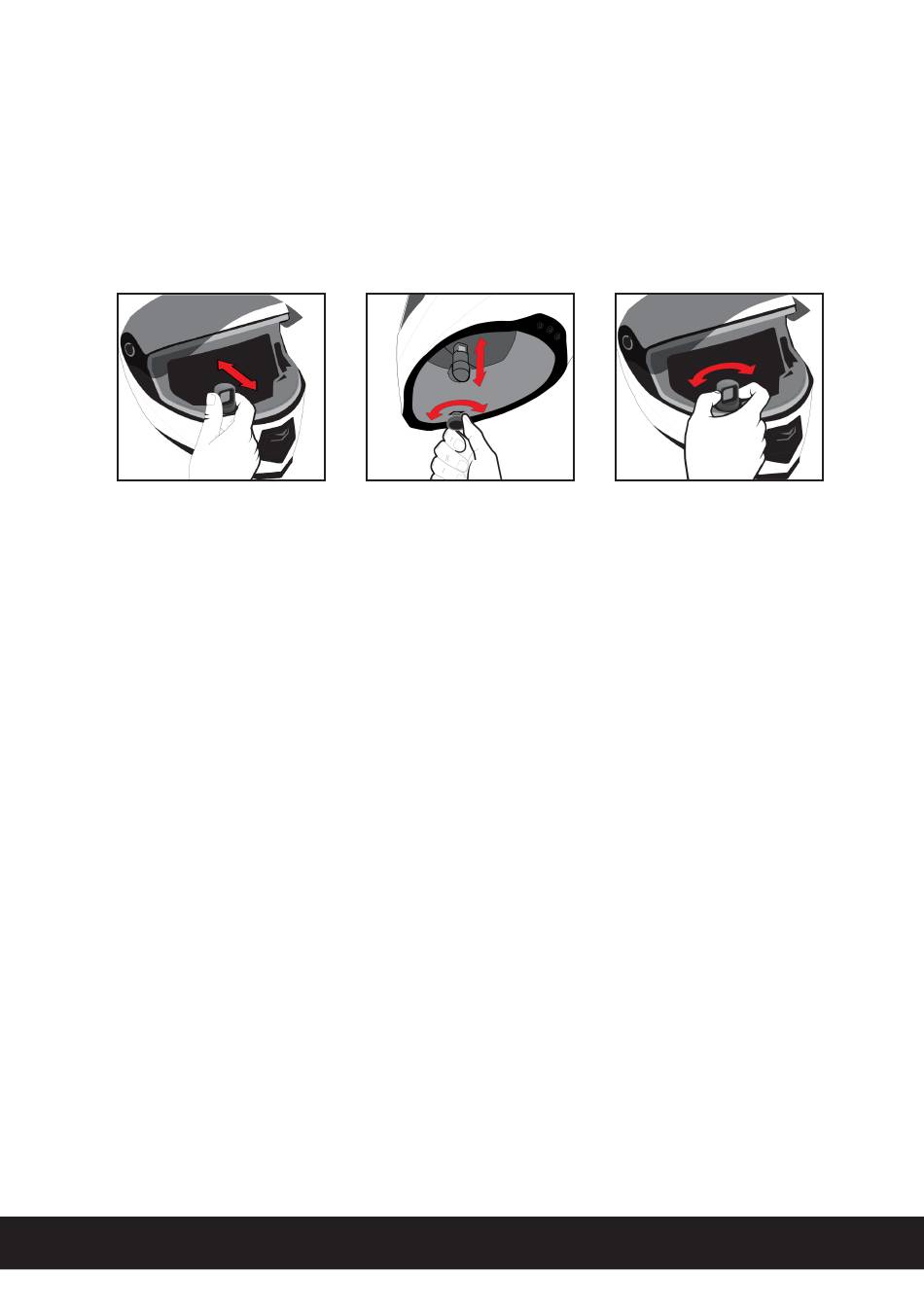

The Heads-Up Display (HUD) can be adjusted vertically (up and down), laterally (side
to side), and the viewing angle can also be moved forward and back within a limited
range. For the ideal view, adjust the HUD until the viewing rectangle is centered
within the screen.*
VERTICAL
- Use knob on bottom right of helmet to raise and lower the HUD
ROTATION
PITCH
- Push/pull the HUD slightly forward/back to change the angle for optimum
viewing position
*Please note that only slight movements are required to adjust the HUD. Do not attempt to force the
SKULLY Mobile App
Download the SKULLY Mobile app from the Google Play Store or Apple App Store.
Note: You must download the SKULLY FENIX AR app to activate many of the helmet's
functions.
For Android™: Go to Google Play Store, look for "SKULLY", click on download
For iOS: Go to the Apple App Store, look for "SKULLY", click on download
Before you can activate your FENIX AR, you must review and agree to the safety
information and terms and conditions on your phone screen.
PN: 013-000006 01
- The HUD twists left and right for optimum viewing position
