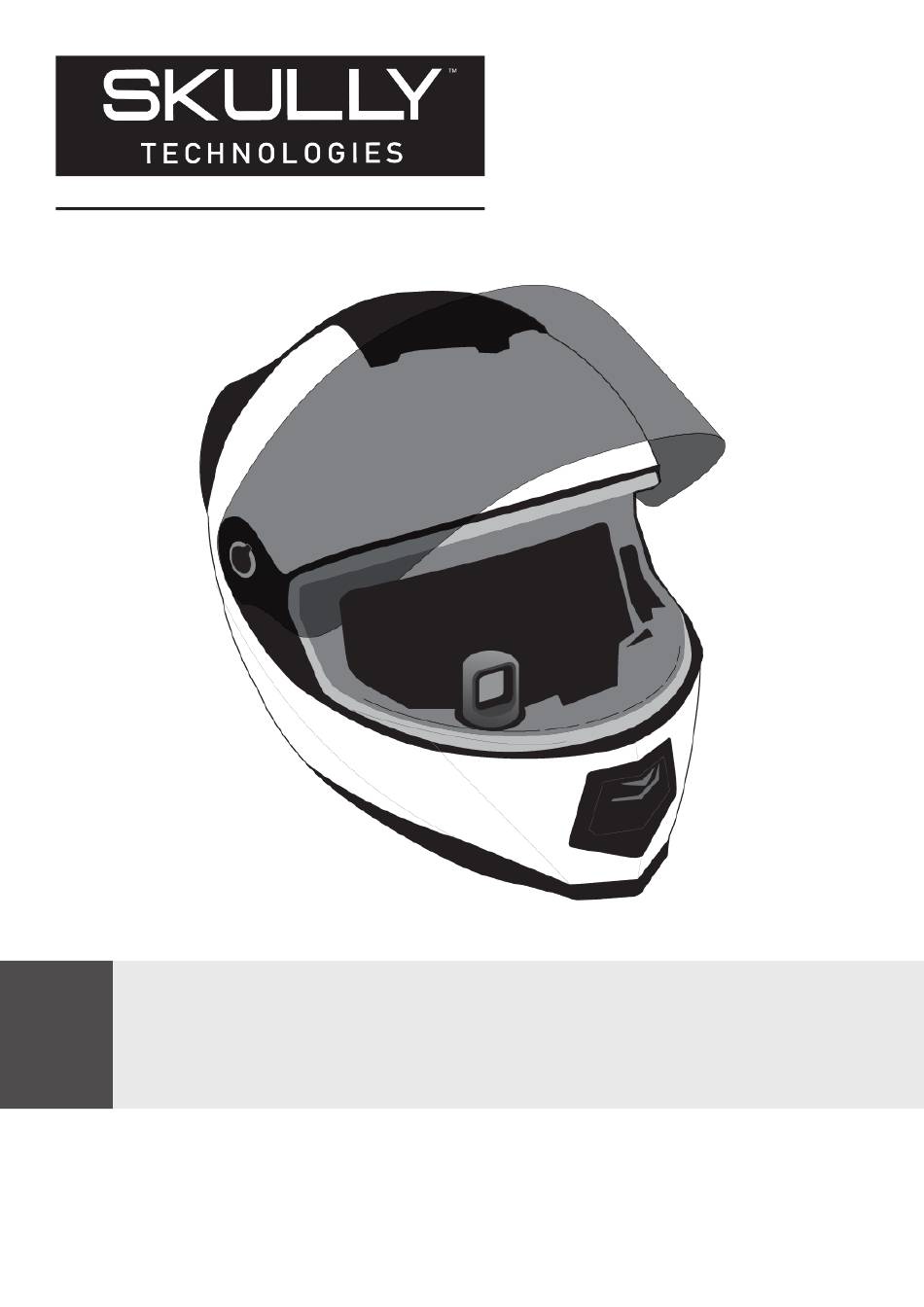

- Page 1 FENIX AR USERS MANUAL V 1.05 PN 013-000006 01...
-
Page 2: Table Of Contents
That’s why it’s essential that you read and understand the following manual com- pletely. Familiarize yourself with the features and use of the helmet, before going on a ride. Remember, the FENIX AR is primarily a safety device, and it must be used as directed to provide maximum protection. -
Page 3: Safety Information
Use the FENIX AR only as instructed by this manual. Failure to do so may result in unsafe riding conditions and will void the warranty. Make no modifications to the helmet. - Page 4 Please be aware of and obey local traffic laws that may apply to the use of certain features of the FENIX AR. You must be of legal driving age in the jurisdiction in which you ride.
-
Page 5: Package Contents
Package Contents FENIX AR HELMET BAG MODULAR PADS VISOR CLOTH HELMET CHARGER QUICK START GUIDE PN: 013-000006 01... -
Page 6: Helmet Key
EMERGENCY QUICK RELEASE STRAPS 3. HUD ADJUSTMENT KNOB 10. CHIN SKIRT 4. LED-STATUS INDICATOR LIGHTS 11. REFLECTIVE STRIP 5. AIR VENTS 12. REPLACEABLE CHEEK PADS 6. PINLOCK READY ANTI-FOG VISOR 13. SPEAKERS 7. REARVIEW/ BLIND SPOT CAMERA 14. MICROPHONE SKULLY Technologies... - Page 7 You should not be able to remove the helmet from your head when the chinstrap is fastened. Please note that the chinstrap must be securely fastened at all times when riding with the FENIX AR. Periodically check to make sure the chinstrap has not loos- ened with use. Tighten if necessary.
- Page 8 Chin Skirt MODULAR PADS - Six (6) individual comfort pads are supplied with the FENIX AR. Trim padding and remove adhesive backing and apply on the back side of the inner liner to offer a customized fit. Alternative liner size packages are available and can be ordered on the SKULLY website.
- Page 9 Charging Your Helmet Use the supplied USB cable and a wall charger to charge the FENIX AR before pow- ering the helmet. Plug the micro USB cord into the port adjacent to the quick-release strap and secure to the supplied wall charger.
- Page 10 Pair your helmet with your smartphone, within 2 minutes of powering helmet. To turn off the FENIX AR, press and hold the power button down for 5+ seconds. Power Button Functions POWER ON (IF HELMET IS OFF)
- Page 11 SKULLY Mobile App Download the SKULLY Mobile app from the Google Play Store or Apple App Store. Note: You must download the SKULLY FENIX AR app to activate many of the helmet’s functions. For Android™: Go to Google Play Store, look for “SKULLY”, click on download For iOS: Go to the Apple App Store, look for “SKULLY”, click on download...
-
Page 12: Bluetooth
FENIX AR helmet if you were previously connected. For example, if 1. Turn FENIX AR on, the helmet is in you stop your motorcycle, remove your pairing mode for 2 minutes after pow- helmet and leave it with the motorcycle... - Page 13 Within the SKULLY app, set your home through the SKULLY app. When connect- and work destinations ing the FENIX AR to the app, a version check is initiated. If a new version is By setting up these destinations you available, the SKULLY app will prompt have enabled the “Take me home”...
-
Page 14: Voice Commands
You can use voice commands to control music, navigation, and more. Voice Command mode is activated when you say “OK SKULLY.” Following this prompt, you will hear “YES”. Note: Each Voice Command requires the “OK SKULLY” prompt. You may then speak the following voice commands: MUSIC COMMANDS “Play music”... - Page 15 When issuing commands to the helmet, make sure to use the following sequence 1. Say the trigger phrase “OK Skully” 2. Wait for Skully to respond with “Yes” (additionally a microphone will appear in the top portion of the HUD) 3.
- Page 16 Rapid fire “OK Skully”, “OK Skully”, “OK Skully” triggers do not clear things up. In the event a command is missed the best plan of action is to wait for several sec- onds, giving the helmet time to respond with “I don’t understand”, then retry the...
-
Page 17: Riding
FENIX AR experience. Please be aware of local traffic laws that may apply to the use of certain features of the FENIX AR 5. The HUD display in the FENIX AR helmet provides an infinite focus that does not require your eye to re-adjust each time you glance at the display. -
Page 18: Cleaning
Cleaning Your Helmet Use only mild dish soap to clean the FENIX AR. Do not expose helmet to harsh chemicals, including bleach, ammonia, gasoline, and other solvents. Additionally, substances such as insect repellent and brake fluid can damage the helmet and re- duce its ability to provide protection. -
Page 19: Tech Specs
FENIX AR Tech Specs MECHANICAL SPECIFICATIONS Weight: ~1650 to 1725 grams (~3lb. 9oz. to 3lb. 13oz.) Storage Temperature Range: -20°C to 60°C (-4°F to 140°F) Operating Temperature Range: -10°C to 45°C (14°F to 113°F) Vibration Resistance: 4.4g rms 5 Hz to 2000 Hz Shock / Drop Resistance: 40 g, 15-23 ms, 1⁄2 sine (1m Vertical Drop) -
Page 20: Compliance
The greatest RF exposure reduction can be achieved when the product is kept as far as possible from the user’s body or when the device is set to lower output power, if such function is available. SKULLY Technologies... - Page 21 FCC Compliance This transmitter must not be co-located or operate in conjunction with any other an- tenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/ CANADA INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT CANADA STATEMENT This device contains licence-exempt transmitter(s)/receiver(s) that comply with Inno- vation, Science and Economic Development Canada’s licence-exempt RSS(s).
- Page 22 Battery capacity that has depleted 50% or more from its’ original specifications. • If one of the above occurs during the Warranty Period, SKULLY will either (a) re- • pair the defect at no charge, using new or refurbished parts that are equivalent to...
- Page 23 Consumable parts, such as batteries, except in respect of battery coverage under • SKULLY FENIX AR Warranty or unless failure has occurred due to a defect in ma- terials and workmanship; Preventative maintenance on the Covered Equipment; or Defects caused by nor- •...
- Page 24 SKULLY OS. Third party applications installed on the FENIX AR may not be compatible or work with the FENIX AR as a result of the SKULLY OS update. You will be responsible for reinstalling or restoring any other software pro- grams, data and passwords.
- Page 25 America. This Warranty is not offered to persons who have not reached the age of majority. This Warranty is not available where prohibited by law. (v) In carrying out its obligations SKULLY may, at its discretion and solely for the pur- poses of monitoring the quality of SKULLY’s response, record part or all of the calls between...
- Page 26 GENERAL, CONTINUED If you do not agree with the above or if you have questions regarding how your data may be impacted by being processed in this way, contact SKULLY at the email ad- dress provided. (viii) SKULLY will protect your information in accordance with SKULLY Customer Privacy Policy URL http://www.skullytechnologies.com/privacy-policy.
- Page 27 PN: 013-000006 01...
