- Page 1 Stage I/O Card Installation Guide Stage 64 and Stage 32 for Avid VENUE | S6L Systems...
- Page 2 Legal Notices © 2018 Avid Technology, Inc., (“Avid”), all rights reserved. This guide may not be duplicated in whole or in part without the written consent of Avid. For a current and complete list of Avid trademarks visit: http://www.avid.com/legal/trademarks-and-other-notices Bonjour, the Bonjour logo, and the Bonjour symbol are trademarks of Apple Computer, Inc.
- Page 3 Safety Compliance Safety Statement This equipment has been tested to comply with USA and Canadian safety certification in accordance with the specifications of UL Standards: UL60065 7th /IEC 60065 7th and Canadian CAN/CSA C22.2 60065:03. Avid Inc., has been authorized to apply the appropriate UL & CUL mark on its compliant equipment. Warning Important Safety Instructions 1) Read these instructions.
-
Page 5: Table Of Contents
Contents Chapter 1. Overview ................1 . -
Page 6: Chapter 1. Overview
Overview This guide provides instructions for installing the following I/O cards in Stage 64 and Stage 32 I/O racks for VENUE | S6L systems: • SRI-192 Analog Input card • DSI-192 Digital Input card • SRO-192 Analog Output card • DSO-192 Digital Output card For instructions on installing the DNT-192 Dante Option card, see the documentation included in its package. -
Page 7: What's Included
Avid can only assure compatibility and provide support for hardware and software it has tested and approved. • SRI-192, DSI-192, SRO-192, DSO-192, and DNT-192 cards are compatible with Stage 64 and Stage 32 racks connected to VENUE | S6L systems running VENUE software 5.0 and higher (Stage 32 requires VENUE software 6.0 and higher). -
Page 8: Resources
Resources The Avid website ( is your best online source for information to help you get the most out of your Avid system. www.avid.com) The following are just a few of the services and features available. Account Activation and Product Registration Activate your product to access downloads in your Avid account (or quickly create an account if you don’t have one). - Page 9 S6L Stage I/O Card Installation Guide...
-
Page 10: Chapter 2. Installing And Confirming I/O Cards
Installing and Confirming I/O Cards This section shows how to install an I/O card in the Stage 64 or Stage 32 I/O rack and confirm installation. To install a DNT-192 Dante Option Card, see the DNT-192 Option Card Guide included with the card. For operational informa- tion for all racks and cards, see the VENUE | S6L System Guide. -
Page 11: Installing I/O Cards

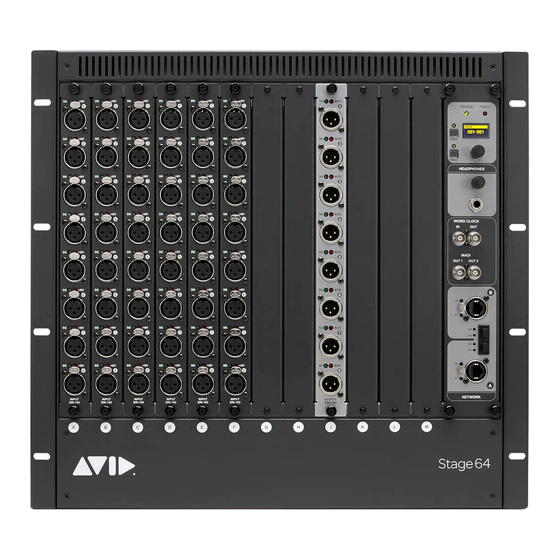

Each slot is lettered, and corresponds to the card slot shown along the top of the VENUE Patchbay patching grid, depending on the type of card installed (input or output card). Observe the following requirements when installing I/O cards in Stage 64 or Stage 32: Stage 64 Slots are lettered left-to-right A–M. - Page 12 • If the desired slot has a blank slot cover, remove the slot cover by unscrewing the two Philips head screws that secure the cover to the Stage IO unit. In the following image, the slot cover in slot G of a Stage 64 is highlighted.
- Page 13 • Make sure to insert the card straight so that it fits along the slot channel built into the unit. Figure 6. Sliding an SRI card into slot G of a Stage 64 (shown at left) and into slot D of a Stage 32 (shown at right) •...
- Page 14 You might need to disconnect some or all ribbon cables to access the thumbscrews. Figure 9. Securing the card to slot G of the Stage 64 chassis (shown at left) and to slot D of the Stage 32 (shown at right)
- Page 15 Replace the back panel on the Stage 64 or Stage 32: Stage 64 Make sure to properly orient the panel, align the back panel guide pins to the guide holes, and secure it to the Stage 64 by tightening the captive thumbscrews.
-
Page 16: Confirming Installation
In the VENUE software screen, go to the Options > Devices page. In the Available Devices or Connected Devices columns, tap the icon of the Stage 64 or Stage 32 in which you installed the I/O card so it is highlighted in blue. - Page 17 S6L Stage I/O Card Installation Guide...
-
Page 18: Appendix A. Compliance Information
Compliance Information Environmental Compliance Disposal of Waste Equipment by Users in the European Union This symbol on the product or its packaging indicates that this product must not be disposed of with other waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. - Page 19 FCC Compliance for United States Radio and Television Interference Communication Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 21 Avid Technical Support (USA) Product Information 75 Network Drive Visit the Online Support Center For company and product information, at www.avid.com/support visit us on the web at www.avid.com Burlington, MA 01803...
