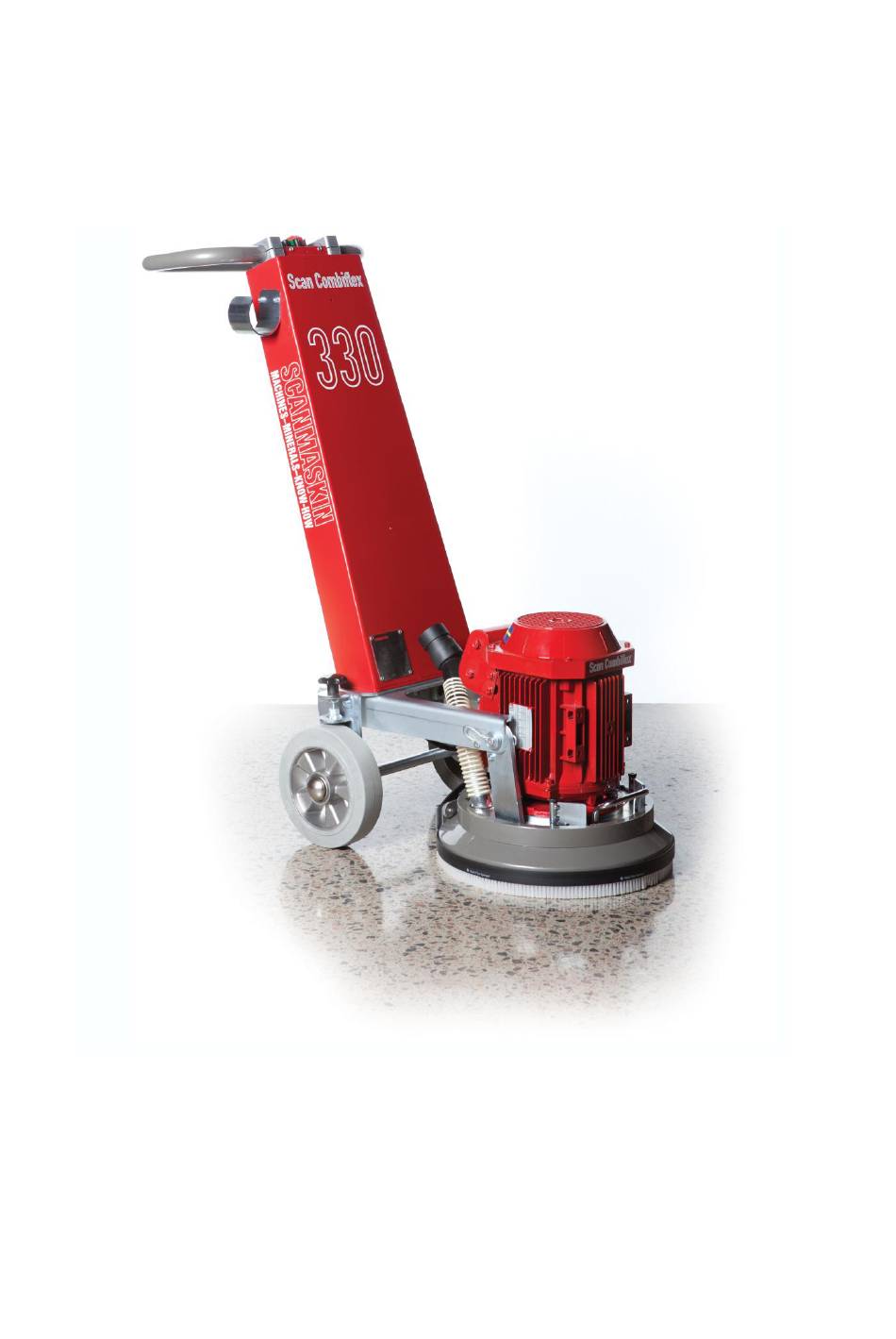

- Page 1 Scan Combiflex 330 Users Guide SCANMASKIN MACHINES-MINERALS-KNOW-HOW...
- Page 2 Scan Combiflex 330 – User Guide MACHINES-MINERALS-KNOW-HOW Dear Customer! Thank you for choosing Scanmaskin as your supplier. We wish you all the best with your new Scan Combiflex™ 330 and hope that it lives up to your expectations. Scanmaskin Sweden AB Claes-Göran Bergstrand...
- Page 3 330” hereby referred to as “SC-330”. SC-330 may only be used for grinding horizontal surfaces approved by Scanmaskin Sweden AB. If SC-330 is used for other purposes or handled in ways other than that described in this User Guide, Scanmaskin Sweden AB disclaims all responsibility. Especially note the section “...
-
Page 4: Table Of Contents
SCANMASKIN Scan Combiflex 330 – User Guide MACHINES-MINERALS-KNOW-HOW Table of Contents Specifications ............................2 Electrical specifications ....................... 2 Mechanical specifications ......................3 Tools ............................. 3 Range of application ........................4 Scope of supply ..........................4 Overview ............................5 Safety Regulations ..........................6 Legend ............................ - Page 5 SCANMASKIN Scan Combiflex 330 – User Guide MACHINES-MINERALS-KNOW-HOW Grinding guide ........................... 22 Removal guide ........................... 23 Glossy concrete floors ........................ 24 Natural stone and terrazzo wet grinding ..................25 10 Alphabetical reference ........................26 11 Contact information .......................... 27 - v -...
-
Page 6: Specifications
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 1 MACHINES-MINERALS-KNOW-HOW 1 Specifications The SC-330 is available with different power inputs. This is described in the different sections later on in this chapter. Electrical specifications To find the specifications that apply to your machine, check the information plate on the machine. -
Page 7: Mechanical Specifications
-20°C to +70°C -4°F to 158°F Tools The machine must be equipped with tools approved by Scanmaskin Sweden AB before operation. See “9 Grinding ” for information about available tools and “4.8 Changing tools” for information about how to change the tools. -
Page 8: Range Of Application
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 1 MACHINES-MINERALS-KNOW-HOW Range of application SC330 is exclusively designed to process horizontal surfaces. SC330 must not be used for other purposes than stated in this user guide. The manufacturer will not be liable for damage or injury resulting from incorrect usage of SC330. -
Page 9: Overview
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 1 MACHINES-MINERALS-KNOW-HOW Overview Figure 1-2 SC-330 overview Item Description Reference Handle Control device 4.3 Control device Frame Adjust wheel height Lock for adjust frame Connector motor - frame Wheel Dust collector hose holder... -
Page 10: Safety Regulations
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 2 MACHINES-MINERALS-KNOW-HOW 2 Safety Regulations Read this entire chapter carefully! Failure to comply with safety regulations may result in serious injuries or damages. Legend Notation regarding safety Notation regarding electrical safety Notation regarding safety during transport... -
Page 11: Organizational Measures
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 2 MACHINES-MINERALS-KNOW-HOW Organizational measures The user guide is to be kept near the location where the machine is being operated and must be within reach at all times. In addition to this user guide general and legal regulations regarding accident prevention and environmental protection must be complied with as per local regulations. -
Page 12: Personnel Selection And Qualification
To perform maintenance work correctly it is imperative to be equipped with the proper tools for the task in question. Repairs may only be made by Scanmaskin Sweden AB certified service technicians. Some grinding work may generate sparks under certain circumstances. Personnel working with the machine must therefore be aware of the risk of fire and how to handle a fire situation properly. -
Page 13: Electrical Safety
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 2 MACHINES-MINERALS-KNOW-HOW Secure the work area around the machine in public areas providing a safety distance of at least 10 m (3.3 ft) from the machine. Faults must be immediately rectified. Carry out the switch on, and switch off operations in accordance with this user guide. -
Page 14: Cables
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 2 MACHINES-MINERALS-KNOW-HOW The work area must be secured against any third party entering the work area. Follow local electrical engineering regulations while working on the machine. Never leave a machine unattended. Use only tools that are insulated against electricity. -
Page 15: Safety Regarding Maintenance
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 2 MACHINES-MINERALS-KNOW-HOW Safety regarding maintenance Set the machine into the Safety off position before beginning any work on the machine. See “2.7 Definition of the “Safety off position””. Never work on the machine while power is still connected! All parts must have come to a complete stop before beginning any work! When the machine is lying down on its back it might tilt to it’s upwards position. -
Page 16: Lifting
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 2 MACHINES-MINERALS-KNOW-HOW 2.9.2 Lifting The machine must be secured according to local safety regulations before lifted. No person is allowed beneath a lifted machine! Observe the machines point of balance before lifting! Failure to comply with these regulations may cause injuries or damages. Only use straps approved for the weight and circumstances! 2.9.3... -
Page 17: Transportation
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 3 MACHINES-MINERALS-KNOW-HOW 3 Transportation Safety precautions Read “2.9 Safety regarding transport” before attempting to transport the machine. Manual transportation Detach the tools according to the instructions in “4.8 Changing tools”. Tilt the machine backwards. -
Page 18: Operation
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 4 MACHINES-MINERALS-KNOW-HOW 4 Operation Precautions Any machine, if it is not used according the regulations, may be hazardous for operating, setting-up and service personnel. The operating authority is responsible for compliance with... -
Page 19: Control Device
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 4 MACHINES-MINERALS-KNOW-HOW Control device Figure 4-1 SC-330 control device Item Function Description Stop Stops the SC-330 Start Starts the SC-330 Table 4-1 Description of control device Start up See”4.1 Precautions” before starting the machine. -
Page 20: Safety Off Position
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 4 MACHINES-MINERALS-KNOW-HOW Safety off position When working on the machine, either maintenance or tool change, the machine must be set to the “Safety off position”. See “2.7 Definition of the “Safety off position”” for further information. -
Page 21: Maintenance
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 5 MACHINES-MINERALS-KNOW-HOW 5 Maintenance Precautions Set the machine into the Safety off position before beginning any work on the machine. See “2.7 Definition of the “Safety off position””. Read “2.6 Electrical safety” before beginning any maintenance work. -
Page 22: Grinding Disc Replacement / Assembly
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 5 MACHINES-MINERALS-KNOW-HOW Grinding disc replacement / assembly Follow these steps to replace the Snap-On plate Make sure the machine is in its “Safety off position” Tilt the machine backwards and secure it. -
Page 23: Spare Parts
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 5 MACHINES-MINERALS-KNOW-HOW 6 Spare parts For information about spare parts, contact Scanmaskin Sweden AB - 19 -... -
Page 24: Warranty
This product from Scanmaskin Sweden AB comes with a twelve month warranty. If the product does not function satisfactorily during this period, Scanmaskin will return the product to full working order for normal use which the product is intended for – with no charge for labor or spare parts, according to the following conditions: The warranty only applies to persons that have legal right to the equipment during the warranty period. -
Page 25: Eu Declaration
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 7 MACHINES-MINERALS-KNOW-HOW 8 EU Declaration Declaration of CE conformity Manufacturer Scanmaskin Sweden AB Address Heljesvägen 10 427 36 Lindome / Gothenburg Sweden Product Grinding machine Product name Scan Combiflex 330 Serial number... -
Page 26: Grinding Information
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 8 MACHINES-MINERALS-KNOW-HOW 9 Grinding information Grinding guide SC-Silver SC-Blue SC-Black This is a very aggressive grinding This is our standard grinding tool This is our standard grinding tool tool with very rough diamonds. -
Page 27: Removal Guide
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 9 MACHINES-MINERALS-KNOW-HOW Removal guide SC-Tiger Gold SC-Scratch + Claw SC-Tiger Silver 521018 592044 592013 This is a very aggressive tool that This tool resembles the SC-Scratch This is a very aggressive tool that can remove most kind of coatings. -
Page 28: Glossy Concrete Floors
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 9 MACHINES-MINERALS-KNOW-HOW Glossy concrete floors Seven steps to a glossy concrete floor. Impregnate with SC-Proof. Wait about 10 to 12 hours. Step 2. SC-Green Step 1. SC-Blue Grinding with this tool reveals the stone that will be visible in the glossy Combifloor. -
Page 29: Natural Stone And Terrazzo Wet Grinding
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 9 MACHINES-MINERALS-KNOW-HOW Natural stone and terrazzo wet grinding Seven steps to a glossy floor. Step 3. RDR-Blue Step 1. RSM Step 2. RDR-Black 592065 Metal bounded for wet grinding 593033 Step 6. RDR-Yellow Step 5. -
Page 30: Alphabetical Reference
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 10 MACHINES-MINERALS-KNOW-HOW 10 Alphabetical reference Contact information ............27 Overview Control device ..............15 SC-330................5 Dimensions Separation of machine ........... 13 SC-450 ................3 Snap-On-plate replacing ..............18 Specifications EU Declaration ..............21 Electrical .............. -
Page 31: Contact Information
SCANMASKIN Scan Combiflex 330 – User Guide Chapter 13 MACHINES-MINERALS-KNOW-HOW 11 Contact information Sweden Main office Box 187 SE-437 22 Lindome Phone: +46 (0) 31 99 49 70 Fax: +46 (0) 31 99 48 70 E-mail: scanbolagen@scanmaskin.com Internet: http://www.scanmaskin.com/ Denmark...
