- Page 1 SH-7512UB PORTABLE AMPLIFIER WITH VHF WIRELESS MICROPHONE SYSTEM, USB/SD/MP3 PLAYER AND BLUETOOTH RECEIVER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Rear Panel

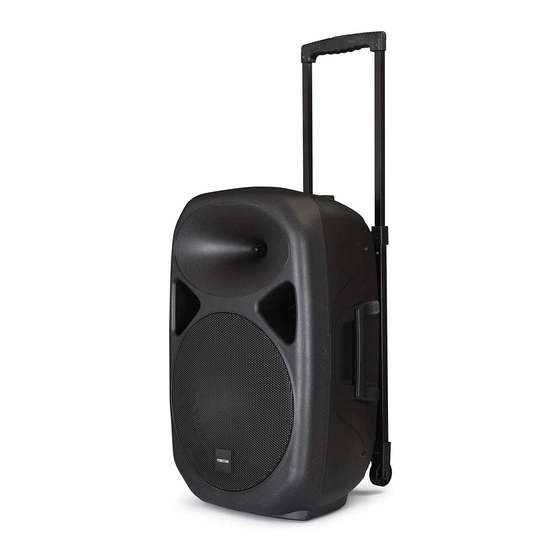

DESCRIPTION Portable amplifier with VHF wireless microphone system. 1 VHF receiver with wireless handheld microphone. Class D amplifier, lightweight and energy efficient. USB/SD/MP3 player and bluetooth receiver. Internal lithium battery included and transport trolley. CONTROLS AND FUNCTIONS REAR PANEL 1.- USB/SD/MP3 player module and bluetooth receiver. 2.- FULL: LED fully charged indicator. -
Page 5: Remote Control
15.- DC INPUT: connection terminals for direct current. 16.- OUTPUT: line level output, 2 x RCA connector. 17.- AUX INPUT: auxiliary line level input, 2 x RCA connector. USB/MP3 PLAYER AND BLUETOOTH RECEIVER 1.- SD memory card connection slot. 2.- USB storage device connection port. 3.- Information display. -
Page 6: Hand-Held Microphone
HAND-HELD MICROPHONE 1.- Battery compartment cover unscrew the battery compartment to acces the battery compartment. Use two LR6-AA type batteries, preferably alkaline. When inserting the batteries, make sure that the polarity is correct. 2.- Operating switch: it has 3 positions, ON, STANDBY (central position) and OFF. Put it in the ON position to operate. -
Page 7: Connection And Operating
CONNECTION AND OPERATING Before making any connections make sure that all the devices are switched off and disconnected from the mains supply. The basic connections are as follows: 1.- Microphone input (MIC IN): connect a microphone to this input. Use dynamic microphones with 6.3 mm jack connector. -
Page 8: Bluetooth Receiver
INSTRUCTIONS FOR USE RECHARGEABLE BATTERY To charge the battery connect the device to a 230 V CA mains supply using the CA/CC adapter provided. Keep the device connected to the mains supply throughout the time the battery is charging which is approximately 10 hours. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS ASH-7512UB CHARACTERISTICS Portable amplifier with remote control. Class D energy efficient and lightweight amplifier circuit. 1 VHF receiver with 1 wireless handheld microphone. USB/SD/MP3 player. Bluetooth receiver integrated, plays music received from a mobile telephone. Rechargeable lithium battery. - Page 10 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
